WARNING! Fix the appliance
in accordance with installation
instruction document to avoid a
risk of instability of the
appliance.

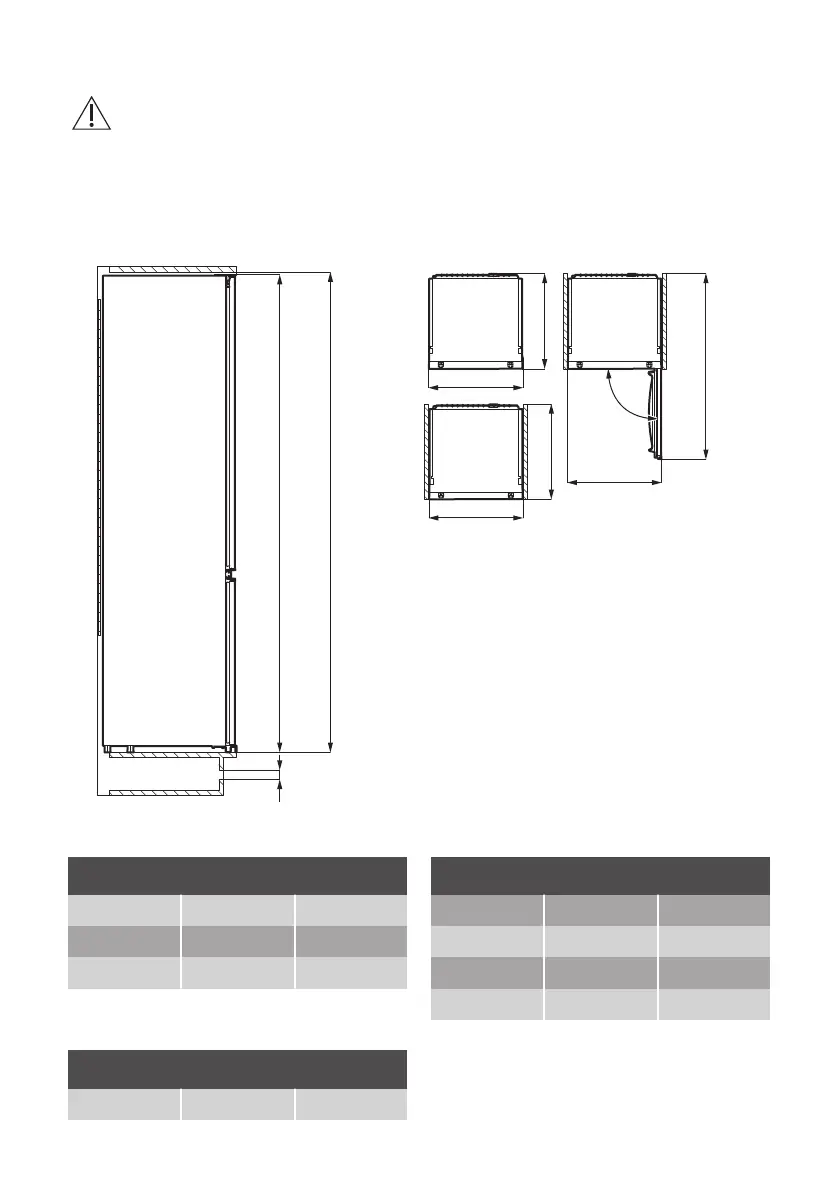

Dimensions
B
A
H1
W1
D1
W2
D2
W3
D3
90°
Overall dimensions
1)
H 1 mm 873
W 1 mm 548
D 1 mm 549
1)
the height, width and depth of the appliance without
the handle and feet
Space required in use
1)
H 2 (A+B) mm 916
Space required in use
1)
W 2 mm 548
D 2 mm 551
A mm 880
B mm 36
1)
the height, width and depth of the appliance includ‐
ing the handle, plus the space necessary for free circu‐
lation of the cooling air
