CLEANING AND MAINTENANCE - 63791477A663/E

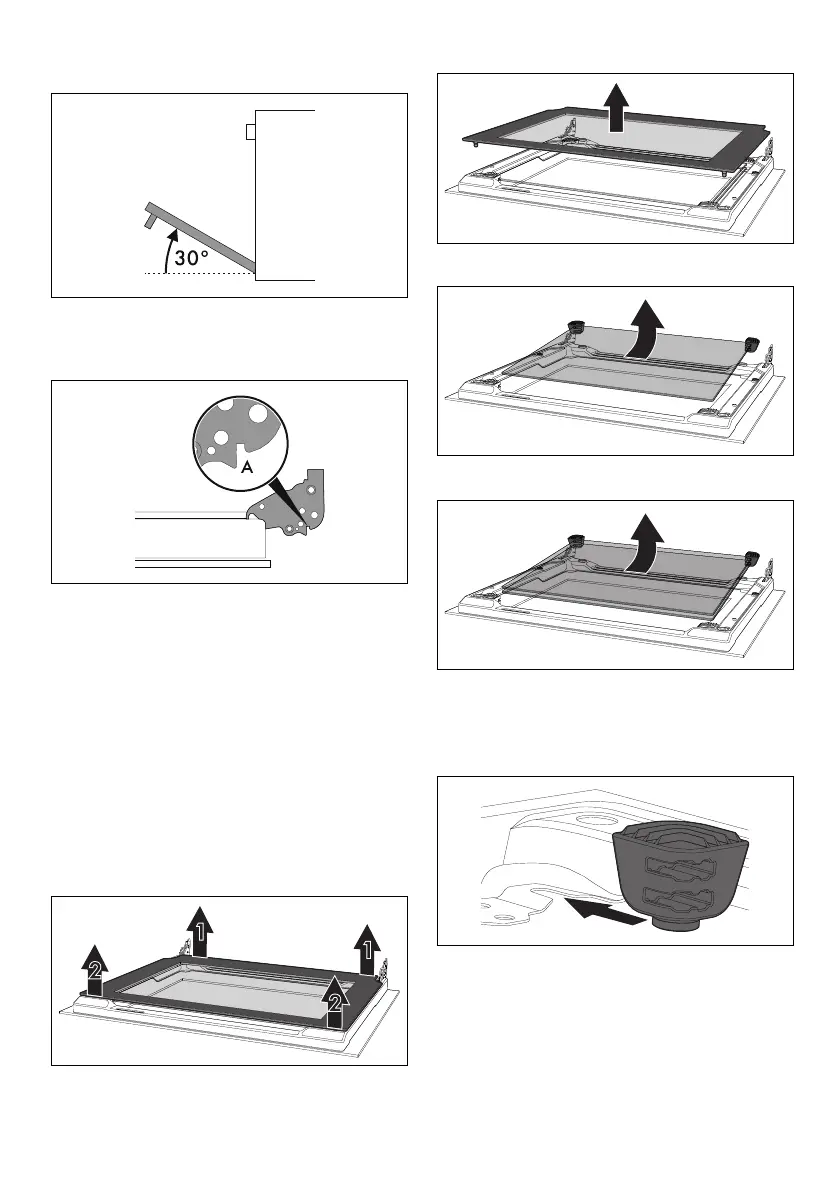

2. Grasp the door on both sides with both
hands, lift it forming an angle of around 30°
and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots.
4. Lower the door and once it is in place
remove the pins from the holes in the hinges.
Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen roll. In
case of stubborn dirt, wash with a damp sponge
and an ordinary detergent.
Removing the internal glass panes
For easier cleaning the internal glass panes of
the door can be removed.
1. Lock the door with the appropriate pins.
2. Remove the internal glass pane by pulling
the rear part gently upwards, following the
movement indicated by the arrows 1.
3. Release the front pins following the
movement indicated by the arrows 2
4. Then remove the inner glass pane from the
front profile.
5. Pull the intermediate glass unit downwards
from the door and then lift it upwards.
Note: In some models, the intermediate glass
unit consists of two panes.
During this step, the upper grommets may come
out of their seats.
6. Insert the front grommets into their seats. The
feet of the grommets must be facing the
outer glass
