Smithco Super Star - Diesel Super Star Setup

11
Introduction
PARTS MANUALS AVAILABLE ONLINE AT smithco.com
SET UP DIESEL SUPER STAR
Diesel Super Star comes standard with Roll Over Protection bar and Seat belts. You will have to insall the ROP
bar before putting machine in service.
After wheels are mounted nad machine is all set up.
1. Unbuckle seat belt for easier working conditions.
2. Remove the four bolts holding the right and left seat belt brackets on.
3. Remove the other four bolts in the mount plate.
4. Line up the mount plate on the ROPs to the square mounting plate by the seat, with the bend in the ROP
bar toward the rear of the machine.
5. Place four bolts in the outside mount plate holes and tighten.
6. Place the seat Belt brackets over the inside mount holes adn bolt in place twith the remianing four bolts.
7. Seat belts should already be mounted on the seat belt brackets.
8. Tighten all hardware.
ROPs have been certified to meet OSHA 1928.52 and seat belts are certified to OSHA 1928.51.

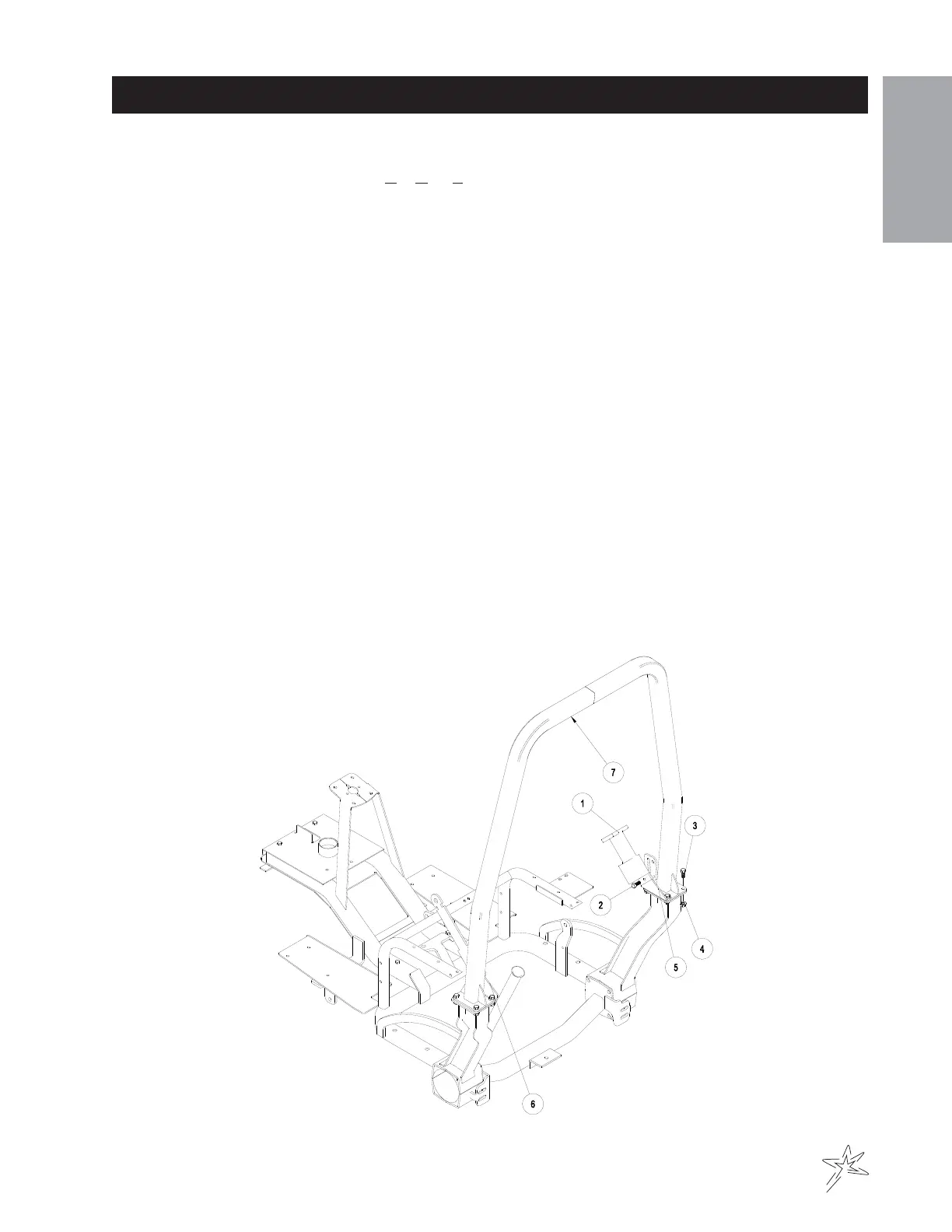

REF# PART# DESCRIPTION
1 76-198-03 Seat belt
2 HB-716-14-100 Bolt
7
/
16
- 14 x 1
3 HB-716-14-125 Bolt
7
/
16
- 14 x 1
1
/
4
4 HNTL-716-14 Lock Nut
7
/
16
- 14
5 42-802 Right Seeat BelBracket
6 42-803 Left Seat Belt Bracket
7 42-801 ROPS Bar
