Introduction
PARTS MANUALS AVAILABLE ONLINE AT smithco.com

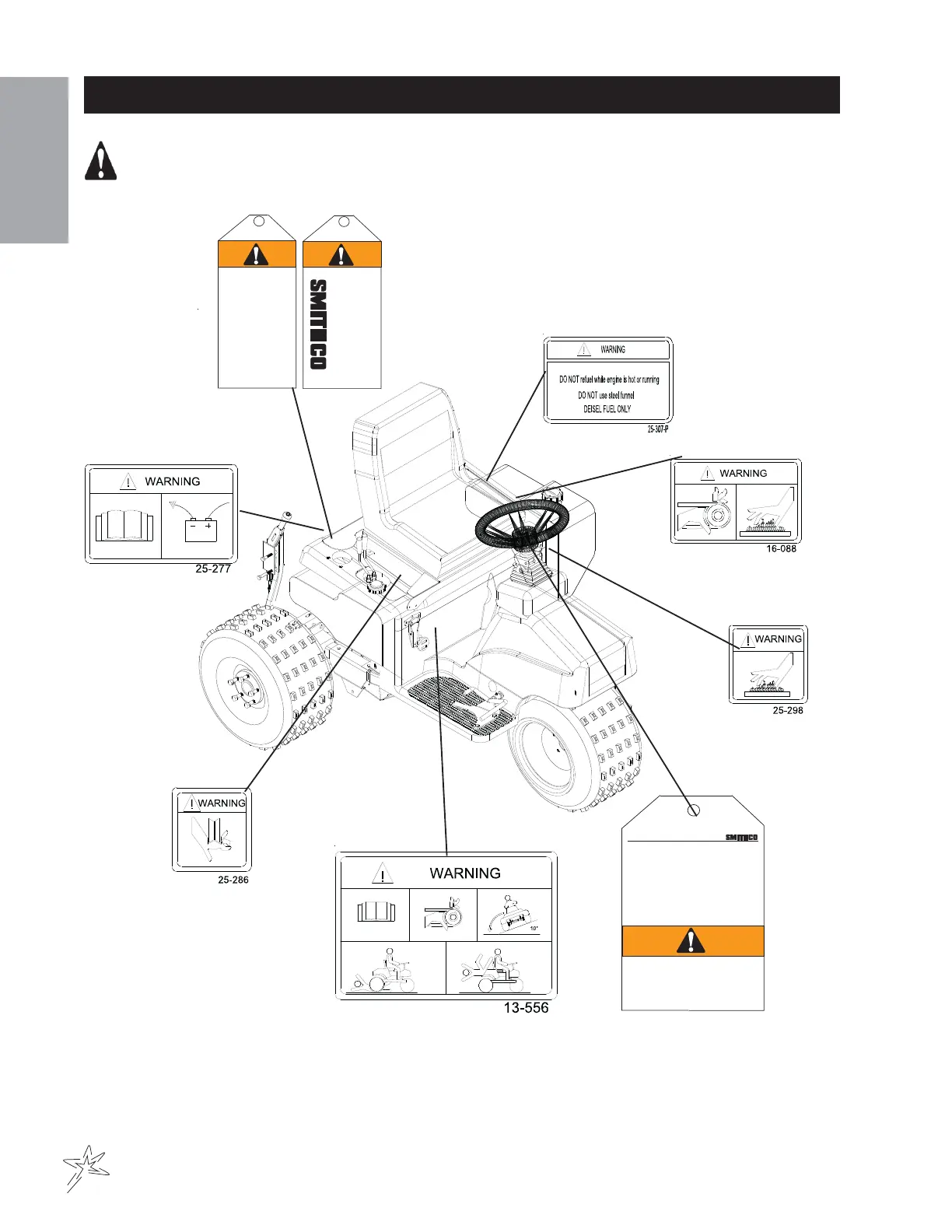

SAFETY SIGN LOCATION X-TREME
REMEMBER: If Safety Signs have been damaged, removed, become illegible or parts
replaced without decals, new decals must be applied. New decals are available from your
authorized distributor or factory.
25-352-P
By-pass Valve
This valve should be completely closed
when running the unit. The valve is closed
by turning clockwise. This valve can be
opened to push the unit when the engine
is not running.
Towing the Machine
The machine can be moved for a short
distance with the engine off, but we do not
recommend this as a standard procedure. When
towing do not tow the machine faster than
2-3 MPH (3-5 km/h) because the drive system
may be damaged. The tires may lock up if the
machine is towed too fast. If this occurs, stop
towing the machine. If the machine must be
moved a considerable distance, transport it on
a truck or trailer.
Speed Boss
by
Speed Boss allows the machine to
operate at a proper speed while
raking bunkers on golf courses.
This speed has been factory set at an
average speed of 3-4 MPH (5-6.5 kph).
It may be re-set to any desired
operating speed. See Manual for
instructions.
CAUTION
: When the rear rake
attachment is lowered while the
machine is in forward motion, the
forward speed of the machine will
slow drastically. Operator should be
prepared for rapid change in speed.
U.S. Patent # 5,725,068 25-337-P
