Smittybilt 97281 - Secure Front Bracket to Winch; Final Tightening and Completion

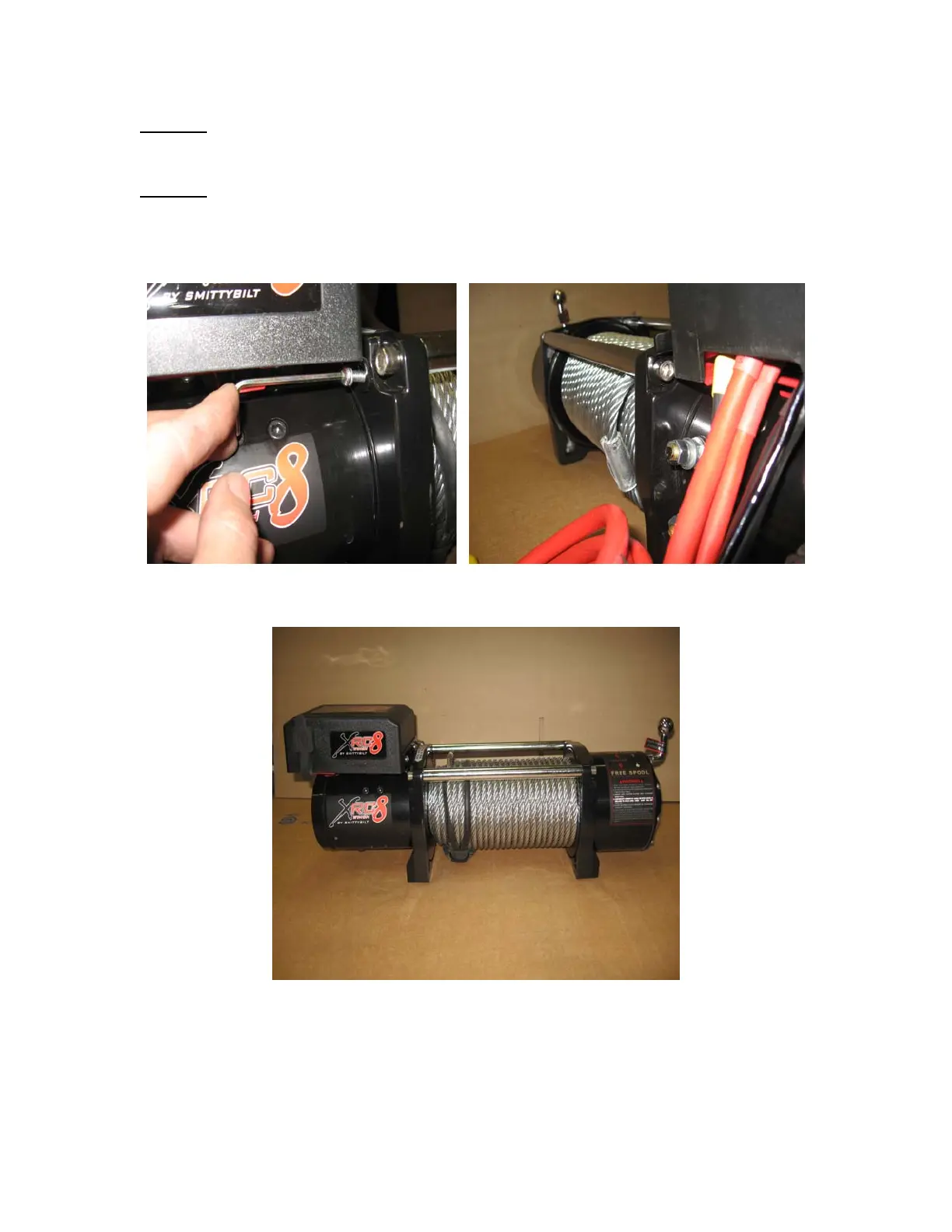

STEP 4: Lower down the solenoid box and attach the front of the bracket securely to
the mounting location on the front of the winch with the included bolt. (Fig E)
STEP 5:
Tighten the rear tie rod bolt completely now. (Fig F, G)
Installation is now complete.
Use the wiring diagram in instruction manual for further assembly.
(Fig E) (Fig F)
(Fig G)
