Installation Instructions
Scout Trailer Kit
Part#87400/87400-01
Wheel hub

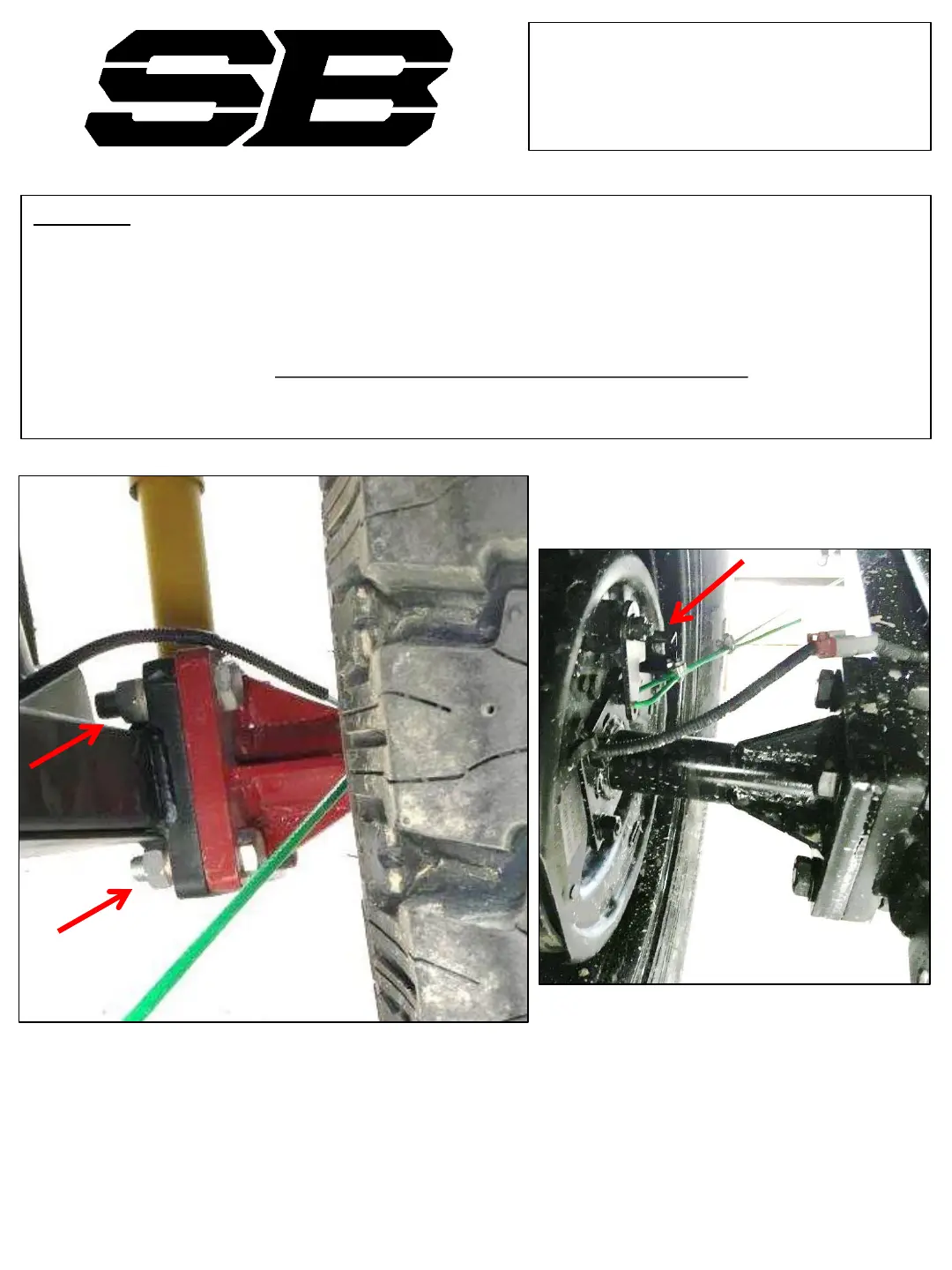

Depending on production run you may have to assemble the wheel hub to the trailing arm.
1. Note orientation of brake lever. This should pull towards the front of the trailer and be towards
the top of the axle. Brake hub may be labeled left or right.
2. Attach wheel hub to trailing arm using M16x60mm hex head bolt, M16 flat washers, M16 lock
washer and M16 nut. Use thread locker. Install all 4 bolts before tightening the bolts. Tighten
bolts in a star pattern. Once all 4 bolts are in place torque bolts to 165 Ft/lb. Connect brake wire
plug to the socket on the trailing arm. You want to use dielectric grease on the pins. Zip tie wiring
to prevent it from hanging.
