WWW.SMITTYBILT.COM
Installation Instructions
Scout Trailer Kit
Part#87400/87400-01

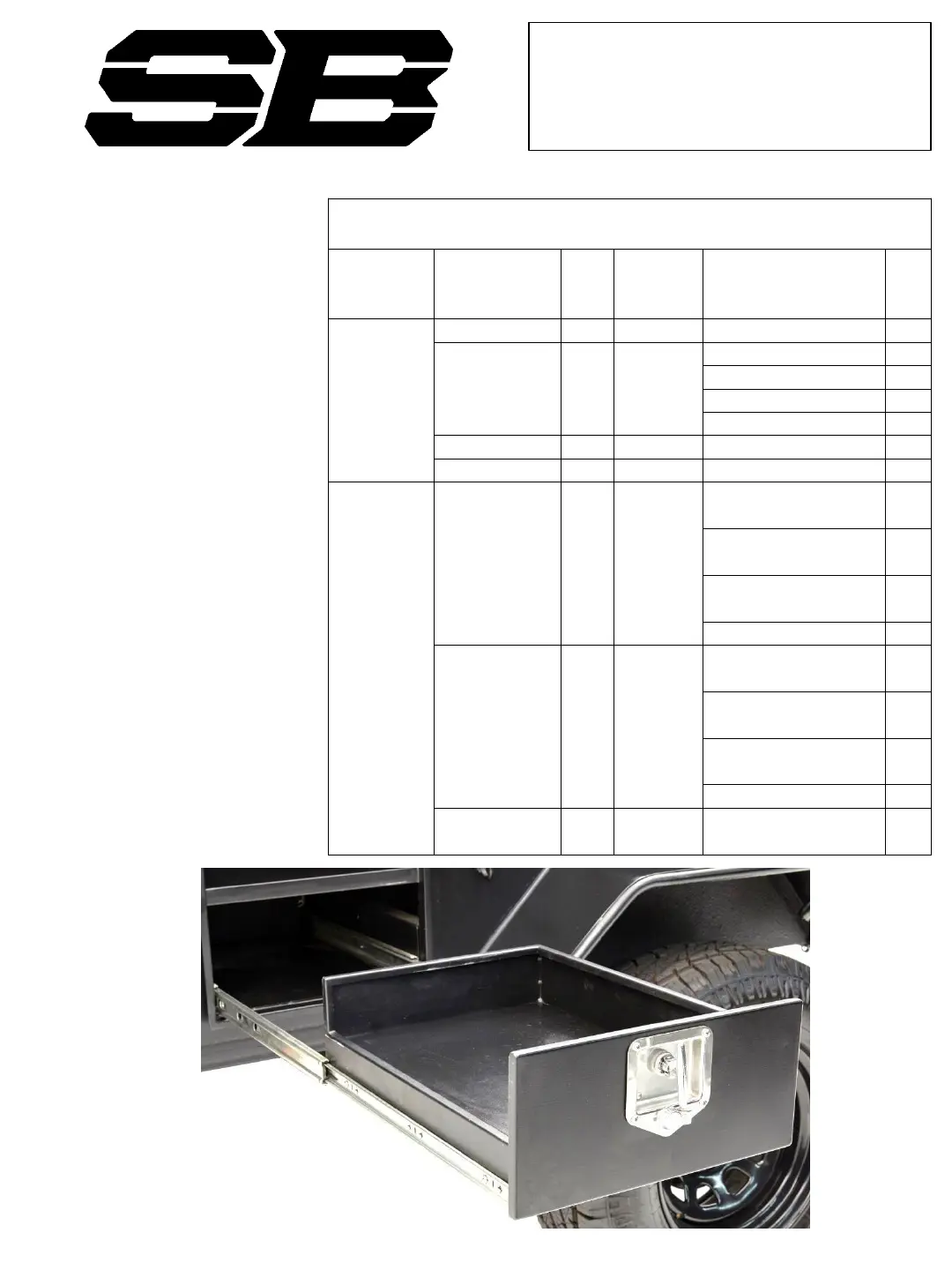

Kitchen Drawer BOM List
Component
Name Qty
Secondary
Componen
t
Name
Qty
Work piece
Kitchen drawer
1
Drawer leg
-1 1
Hardware
M8*50 bolt
2
M8 nut
2
M8 flat washer
4
M8 lock washer
2
Drawer leg
-2 2
Hardware
Wing bolt M8*16
2
Drawer leg
-3 2
Hardware
Wing bolt M8*16
2
Accessories
1000mm
slider(without
self
-lock
）
2
Hardware
M5*16 stainless steel
bolt
14
φ5 stainless steel flat
washer
4
φ5 stainless steel lock
washer
4
M5 stainless steel nut
4
T-
lock 1
Hardware
M5*16 stainless steel
bolt
4
φ5 stainless steel flat
washer
4
φ5 stainless steel lock
washer
4
M5 stainless steel nut
4
Leg Latch
1
Hardware
M3*6 stainless steel
bolt
4
