WWW.SMITTYBILT.COM
Installation Instructions
Scout Trailer Kit
Part#87400/87400-01
Ball Coupler *** NOTE: 2” ball coupler is for on-road use only**
Torque ball coupler to hitch mount tube bolts to 70 ft/lb.
To adjust the hitch latch on your trailer's coupler, you will want to adjust the nut at the bottom of
the latch. This nut may be tightened or loosened depending on what you need for your coupler.
The ball needs to be fully secured in the coupler and unable to come off. However, there should be
enough room for some play. The hitch ball needs to be able to move inside the coupler so that
nothing binds up while you are towing. The trailer needs to be able to move and pivot while moving,
so the ball should be secure, but not tight, in the coupler. It is easiest to adjust by using a hitch ball
and inserting it into the coupler. Then lock the coupler and adjust. Move the hitch ball around to
check for the right tension. Once again, it should be loose enough that it does not bind, but tight
enough that it does not come out of the coupler. Make sure to properly grease the ball. Hitch ball
grease is available commercially at most auto parts stores, however high pressure wheel bearing
grease is acceptable. Failure to properly keep the coupler and ball greased may cause catastrophic
failure. Periodically oil pivot points and sliding surfaces of the coupler with SAE 30wt. Motor oil.

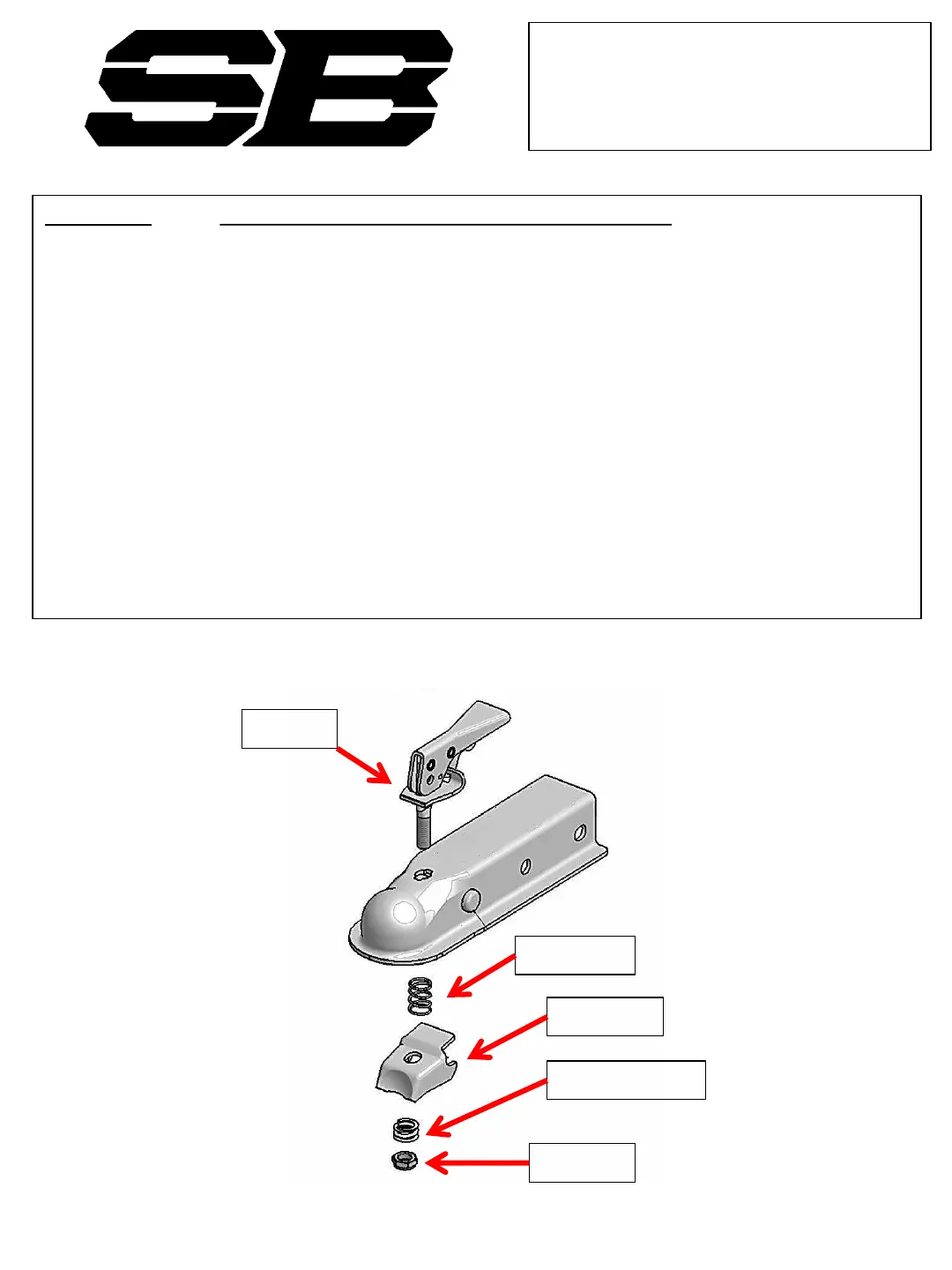

Handle
Coil Spring
Underjaw
Tension Spring
Lock Nut
9
