39
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. PS4-100 Housing Assembly
2. PS4-015 Grip
3. PS4-012 Lever
4. PS4-003 Snap Ring
5. PS4-014 Housing
6. PS4-013 Pin
7. PS4-004 O–Ring
8. PS4-005 Valve Stem
9. PS4-002 O–Ring (2)*
10. PS4-001 Regulator
11. PS4-006 Washer
12. PS4-007 Valve
13. PS4-008 Spring
14. PS4-009 Inlet Bushing
15. PS4-046 Muffl er Pad (3)*
16. PS4-047 Muffl er Screen
17. PS4-037-X Exhaust Sleeve Assembly
18. PS4-037-A Exhaust Sleeve Base
19. PS4-037-B Exhaust Sleeve Cap
20. PS4-101 Motor Assembly, 6", 3/16
PS4-102 Motor Assembly, 6", 3/32
PS4-104 Motor Assembly, 5", 3/16
PS4-105 Motor Assembly, 5", 3/32
21. PS4-017 Snap Ring
22. PS4-018 Bearing
23. PS4-011 Top Rubber Bushing
24. PS4-019 Upper End Plate
25. PS4-099 Rotor Blade Set
26. PS4-021 Rotor
27. PS4-024 O–Ring
28. PS4-023A Cylinder Assembly
29. PS4-025 Lower End Plate
30. PS4-016 Bottom Rubber Bushing
31. PS4-036 Washer
32. PS4-026 Bearing
33. PS4-027 Fiber Washer (2)*
34. PS4-028 Seal Plate Dust Seal
35. PS4-080 Balancer, 6", 3/16
PS4-081 Balancer, 6", 3/32
PS4-083 Balancer, 5", 3/16
PS4-084 Balancer, 5", 3/32
36. PS4-029 Rotor Key
37. PS4-030 Snap Ring
38. PS4-031 Bearing
39. PS4-032 Shim
40. PS4-033 Bearing (one seal)
41. PS4-034 Snap Ring
42. PS4-035 Shaft
43. PS4-070 Large Lock Ring, Standard
PS4-071 Large Lock Ring, Fine
44. PS4-073 Large Shroud, Standard
PS4-074 Large Shroud, Vacuum
45. PS4612-1AH PSA Pad, 6", Standard
PS4612V-1AH PSA Pad, 6", Vacuum
PS4612-2H Hook Pad, 6", Standard
PS4612V-2H Hook Pad, 6", Vacuum
PS4512-1AH PSA Pad, 5", Standard
PS4512V-1AH PSA Pad, 5", Vacuum
PS4512-2H Hook Pad, 5", Standard
PS4512V-2H Hook Pad, 5", Vacuum
Items Not Shown:
PS4-045 Wrench
PS46-TK Tune Up Kit
(Includes fi gures no. 4,
7, 9, 11-13, 21-23, 25-
27, 30-34, 36-41)
PARTS LIST FOR
PS4512 & PSF4512—5" RANDOM ORBITAL SANDERS
PS4612 & PSF4612—6" RANDOM ORBITAL SANDERS

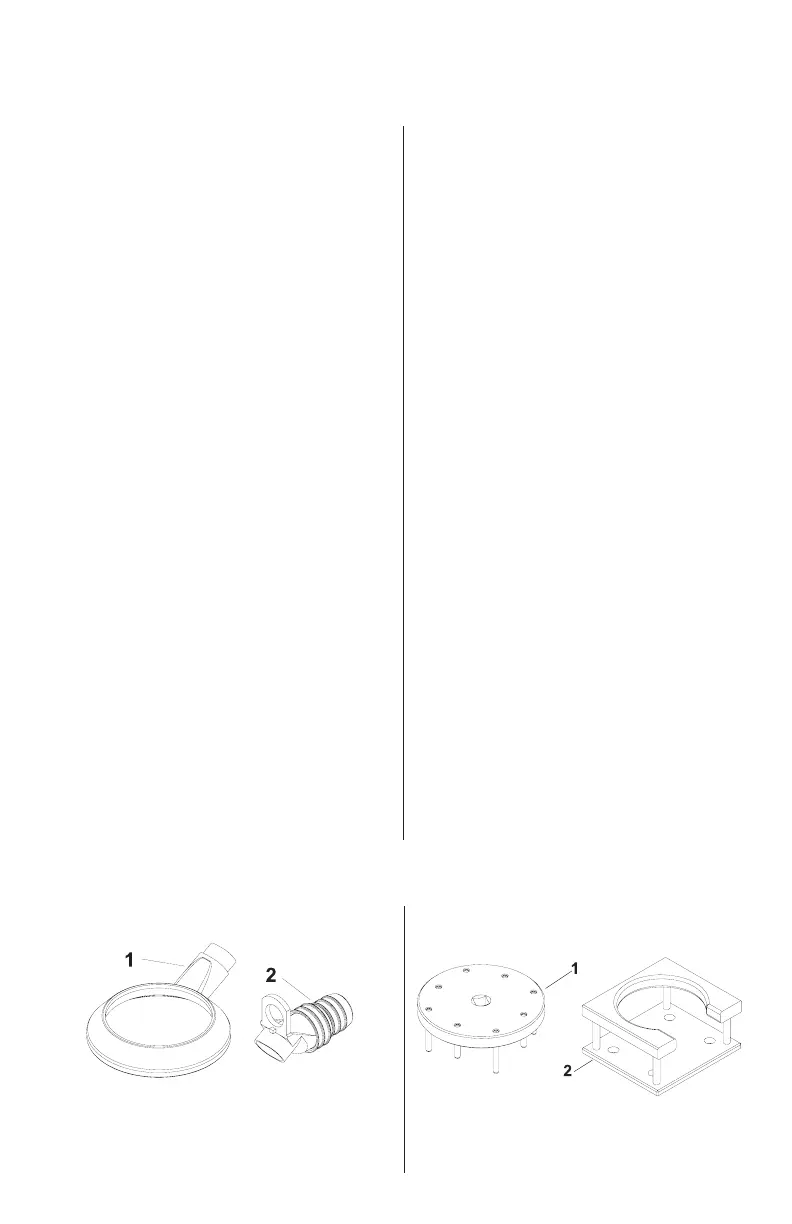

1. PS4-074 Large Shroud, Vacuum
2. PS4-040 Swiveling Vacuum
Adapter
Fig. Part
No. No. Description
Remote Vacuum Kit
1. PS4-095 Lock Ring Wrench
2. PS4-096 Vise Plate
Fig. Part
No. No. Description
Repair Fixture PS46-RF
For 5" and 6" Sanders
