Snapper 5500 Watt Generator

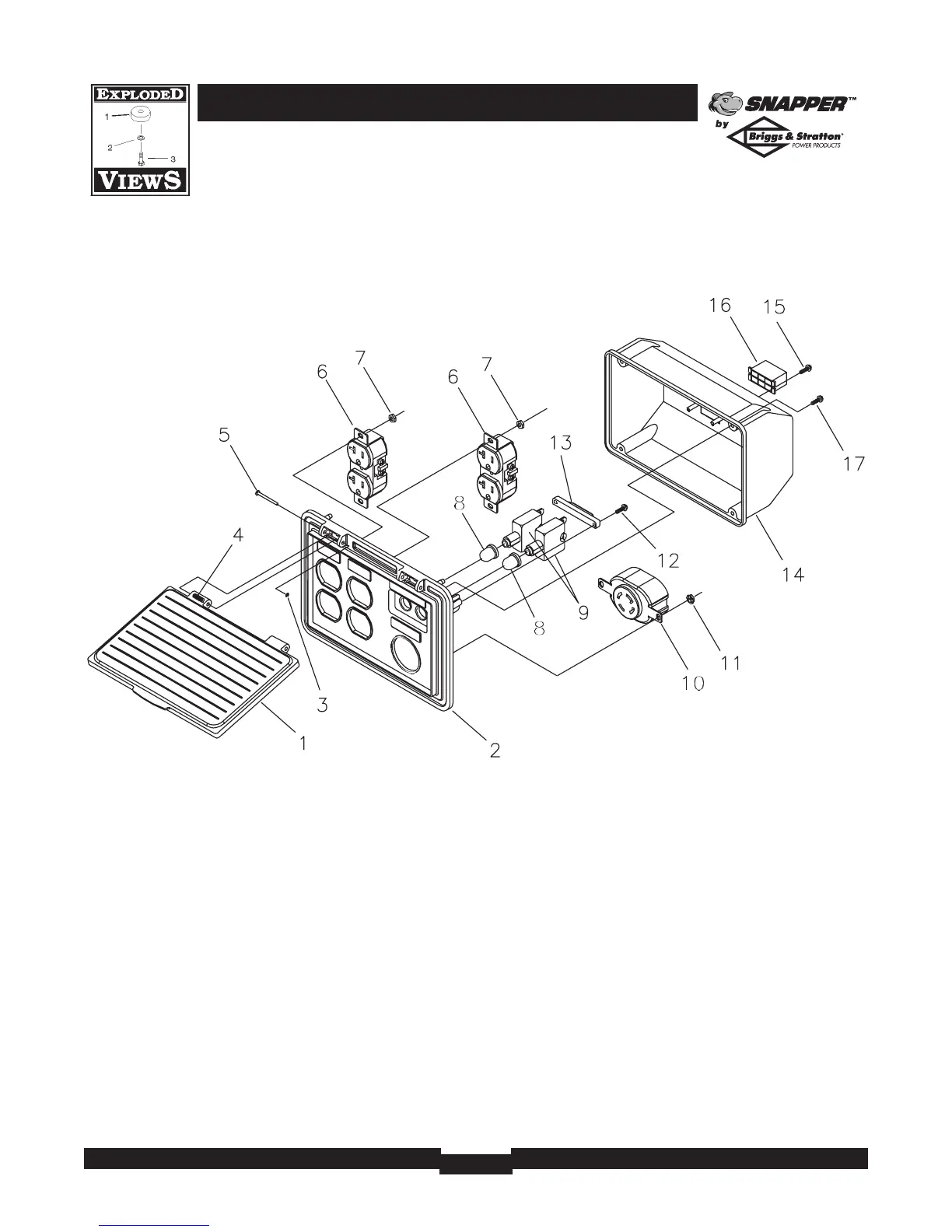

EXPLODED VIEW AND PARTS LIST – CONTROL PANEL
Item Part # Description
1 188914GS COVER, Lid, Control Panel
2 188889GS CONTROL PANEL, Compact
3 189167GS CLIP, Hinge Pin Retainer
4 189182GS SPRING, Hinge, Pin
5 189166GS PIN, Hinge, Cover, Compact
6 68759GS OUTLET, 120V, 20A, Duplex
7 189165GS NUT, Palnut, Pushnut
8 84198GS CAP, Circuit Breaker
9 75207GS BREAKER, Circuit
10 43437GS OUTLET, 120/240V Locking, 30A
11 189164GS NUT, Palnut, Pushnut
12 84543CGS SCREW
13 93857GS BAR, Retaining
14 188890GS COVER, Back, Control Panel
15 82308GS SCREW
16 22694GS HOUSING, Receptacle
17 192241GS SCREW
