Snapper Model 030215 Portable Generator
6

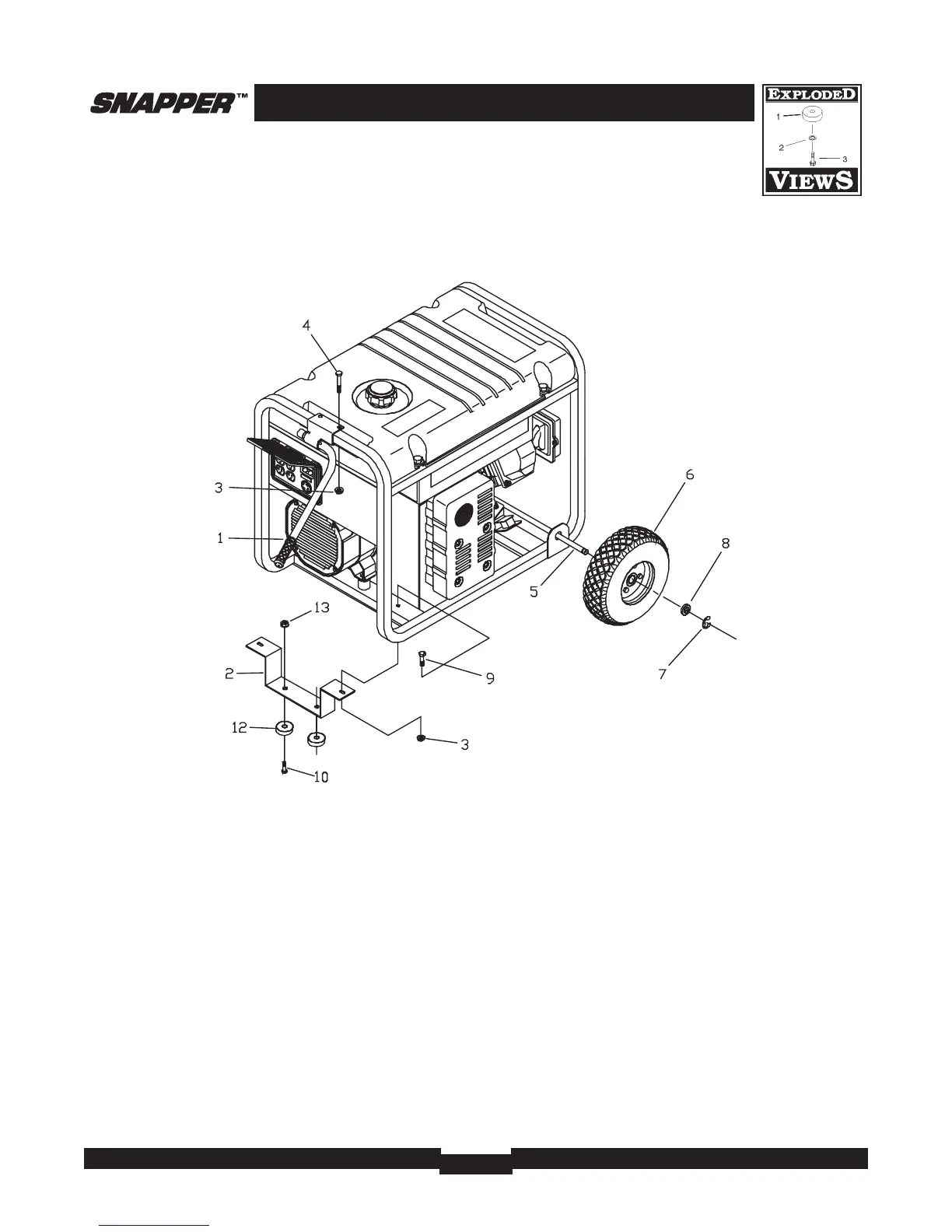

EXPLODED VIEW AND PARTS LIST - WHEEL KIT
Item Part # Description
1 189715GS ASSY, Handle
2 B187101GS LEG, Mounting
3 52858GS NUT, Locking Hex M8 - 1.25
4 39287GS HHCS, M8 - 1.25 x 45
5 191267GGS AXLE, 5/8" x 23.62"
6 B4966GS WHEEL, 10" Diameter
7 191265GS E-RING
8 22247GS WASHER, Flat, 5/8"
9 39253GS HHCS, M8 - 1.25 x 20
10 22413GS HHCS, 1/4 - 20 x 1.00 Lg
12 191413GS VIBE MOUNT, with Washer
13 192432GS NUT, 1/4 - 20 Serrated Lock
* - Items without part numbers are common fasteners and
are available at your local hardware store.
