S2646/S3246 Electrical – 17

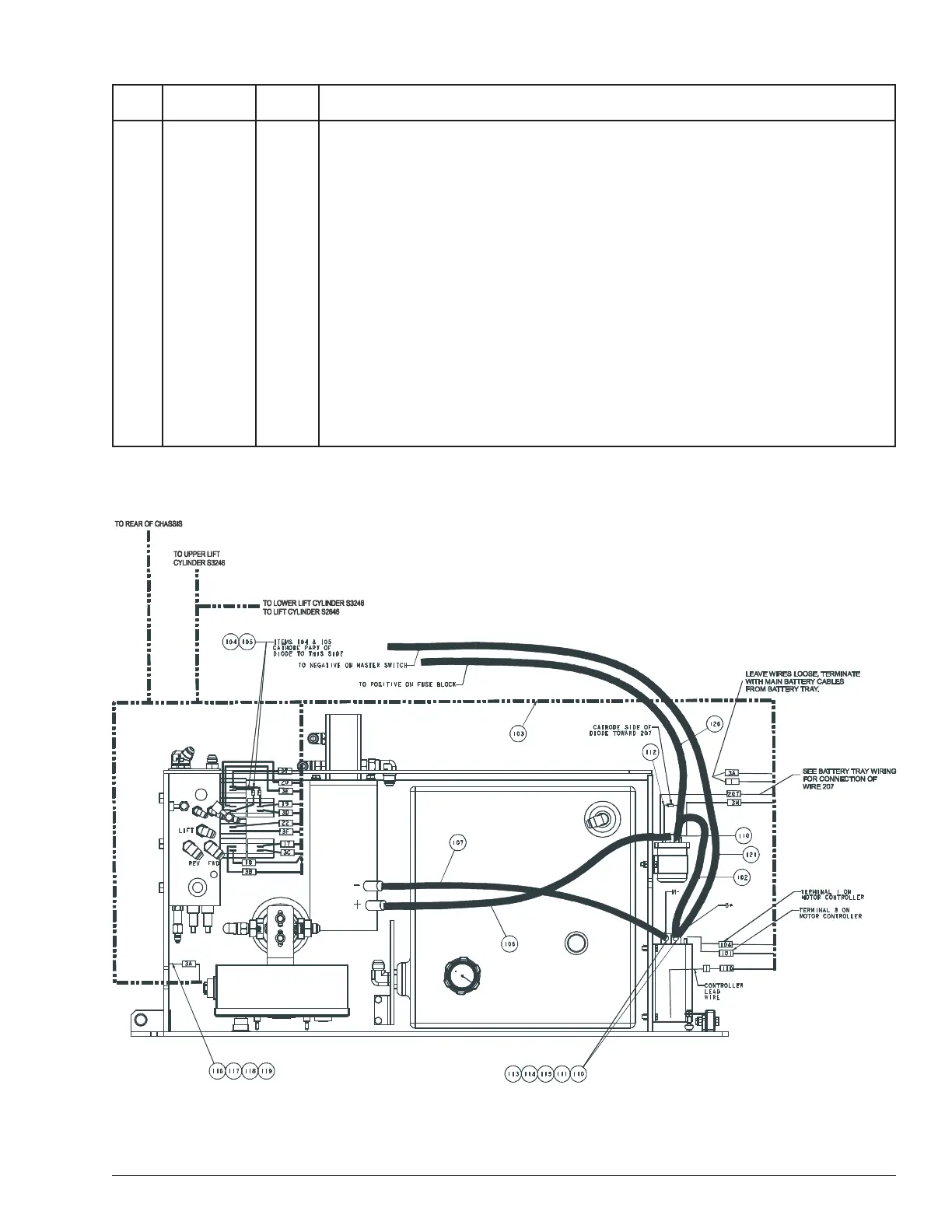

Hydraulic Tray Wiring
102 0150459 1 WIRE 2 R313I R313I 12
103 0371890 1 HARNESS MAIN WIRE 2646/3246
104 0371888 1 DIODE WIRE ASSY
105 0371889 1 DIODE WIRE ASSY
106 0371891 1 WIRE 2 R375I R313I 39 RED
107 0371892 1 WIRE 2 R375I R313I 43 BLK
110 3040269 4 BOOT BTRY CABLE END BLK 1/0 GA
111 3043802 1 RUBBER BOOT WIDE END (2X2/0GA)
112 0073253 1 WIRE 18 R10I R10I 11 DIO
113 970239 2 BLT HEXHD .313-18 .750 GR5
114 5560031 2 5/16 NUT SELF LOCKING
115 986269 4 WASHER FLAT .313
116 5560341 1 WASHER STAR .250 EXTERNAL TOOTH
117 970049 1 BLT. 250-20 1.00 GR5
118 986019 1 WASHER FLAT .250
119 5560004 1 NUT LOCKING .250-20
120 0151157 REF WIRE 2 R375 R313 142 RED
121 0371896 REF WIRE 2 R375 R313 149 BLK
Item Part No. Qty. Description
0371861
AFTER SEPTEMBER 2005:
To Next Page
