S2646/S3246 Electrical – 19
3087790 1 ELECTRIC MOTOR, 24V
1 8010323 1 DRIVE ENDHEAD
2 8010324 1 BEARING
3 8010325 1 RETAING RING
4 8010326 1 FAN
5 8010327 1 ARMATURE AND FAN ASSY
6 8010328 1 FIELD COIL KIT
7 8010329 1 BRUSH
8 8010330 1 BRUSH SPRING
9 8010331 1 BRUSH BOX ASSY
10 8010332 1 BRUSH LEAD ASSY KIT
11 8010333 1 BEARING
12 8010334 1 WAVY WASHER
13 8010335 1 COMMUTATOR ENDHEAD
14 8010336 1 BRUSH COVER PLATE KIT

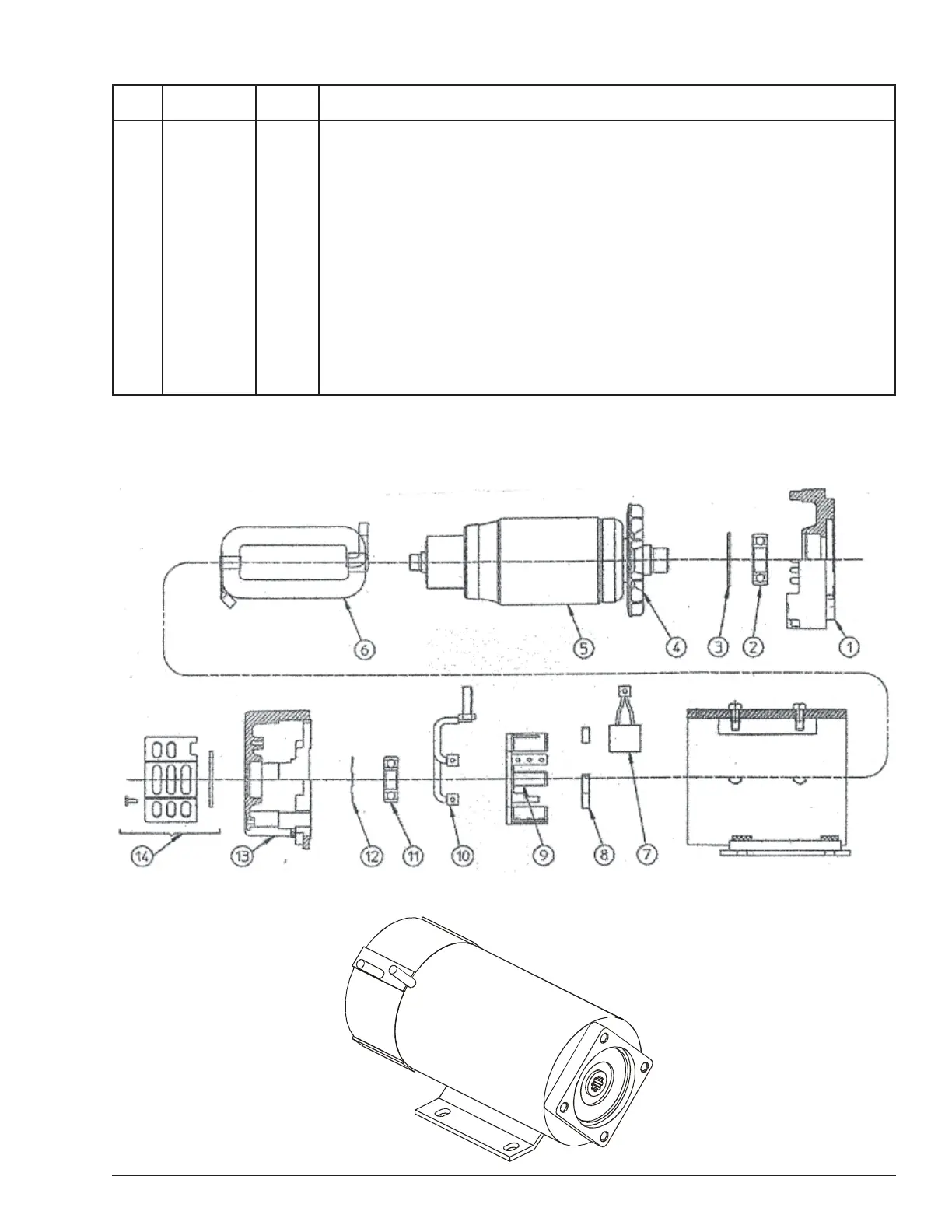

Electric Motor, hydraulic pump
Item Part No. Qty. Description
AW3087790
A
1
D
1
(+)
(-)
