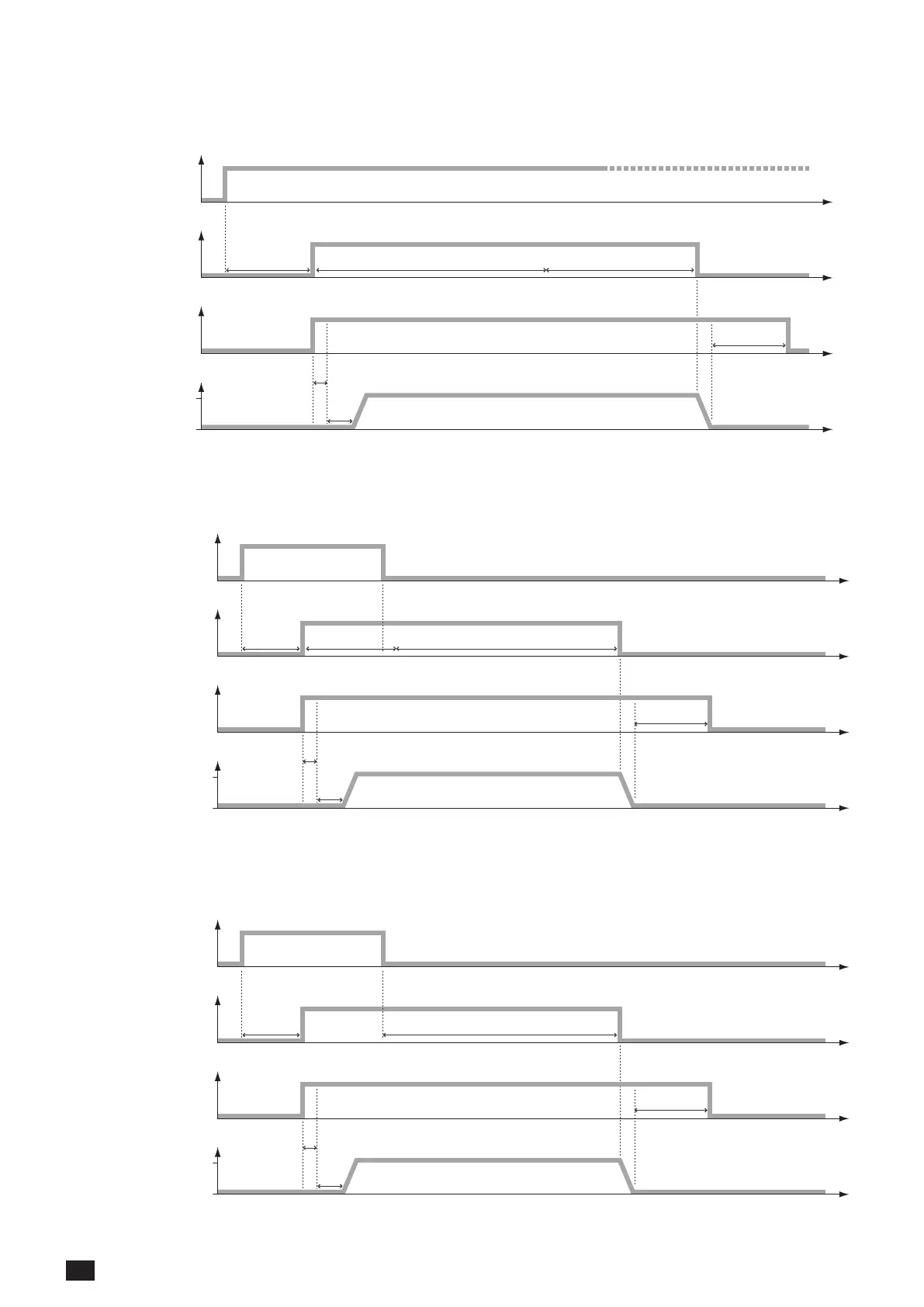

Explanation of how EON works:
E2T when set as Limited
EON input
Operation request
“Starting order”
contact
Pos II
Pos I
Starting time
E1T E2T E3T
2CT
?
2AT
E2T takes priority over EON if E2T is set as LIM (Limited)
EON input
Operation request
“Starting order”
contact
Pos II
Pos I
Starting time
E1T E2T E3T
2CT
?
2AT
EON takes priority over E2T if E2T is set as UNL (Unlimited)
EON input
Operation request
“Starting order”
contact
Pos II
Pos I
Starting time
E1T E3T
2CT
?
2AT
