I 521 P – B 304
© SOCOREX ISBA S.A. – CH. CHAMP-COLOMB 7 – P.O. BOX – CH-1024 ECUBLENS/LAUSANNE – SWITZERLAND
TEL. 41-(0)21 651 6000 – FAX 41-(0)21 651 6001 – E-MAIL: socorex@socorex.com – www.socorex.com
Since
1991
***Cinematic viscosity is indicated in centistokes (cst). The dynamic viscosity in centipoises (cps)(cst). The dynamic viscosity in centipoises (cps)
is obtained by multiplying the cinematic viscosity by the density of the liquid (kg/m
3
).
PERFORMANCE DATA AND DATA AND
ORDERING INFORMATION
TECHNISCHE DATEN UND
BESTELLINFORMATIONEN
DONNÉES TECHNIQUES ETÉES TECHNIQUES ET
CATALOGUE
Volume
(mL)
Range
(mL)
Increment
(mL)
Accuracy*
Err.Rel %%
Precision*
CV %
Cat. No.
Adj. volume
Cat. No.
Fixed volume**
20 2 – 20 0.1 < ± 0.7% < 0.1% 521.020 521.F020
50 10 – 50 1 < ± 0.7% < 0.1% 521.050 521.F050
100 10 – 100 1 < ± 0.7% < 0.1% 521.100 521.F100
*Values refer to the maximum volume, obtained by a regular and smooth plunger
movement, ith Acqua bidest. at constant temperature (± 0.5°C) comprised
between 20 and 25°C.
** When ordering, specify desired fixed volume
within instrument range.
Vol.
(mL)
Max. cinematic
viscosity (cst)***
Example of liquids Test conditions for
all 521 models
20 100 Olive oil
Dispensing time < 10 s
Dispensing strength < 3 kg
Pressure in barrel < 3 bars
50 300 Silicone oil
100 150 Silicone oil
Cat. No Description Cat. No Description Cat. No Description
GLP.xx Threaded adapter, PP,
Ø 22, 25, 28, 30, 34, 36, 38, 40, 45 mm
314.xxxx Amber glass reservoir
(Ø 32/45 mm)
0100, 0250, 0500, 1000, 2500 mL
314.0500P Pyrex glass reservoir
(Ø 32 mm) 500 mL with
side neck
GLT.xx Threaded adaptater, PTFE,
Ø 36, 38, 40, 45 mm
314.xxxxPE Amber glass reservoir
(Ø 32/45 mm)
0500, 1000, 2500 mL with PE coating
315.xxxx PE reservoir (Ø 25/45 mm) 0250,
0500, 1000, 2500 mL
NSP.SP.xx Tapered adapter, PP,
18.8, 24, 29.2, 45 mm
320.SB050 Work station for one dispenser
(up to 50 mL model)
521.621 Spare feed tube 300 mm, PTFE,
20 mL model
NST.xx Tapered adapter, PTFE,
18.8, 24, 29.2 mm
320.BC050 Work station for bulk container
(20 and 50 mL models)
521.622 Spare feed tube 300 mm, PTFE,
50 mL model
1.524 60 cm delivery extension tubing,
PTFE, for 20 mL model
320.BC100 Work station for bulk container
(100 mL model)
521.623 Spare feed tube 375 mm, PTFE,
100 mL model

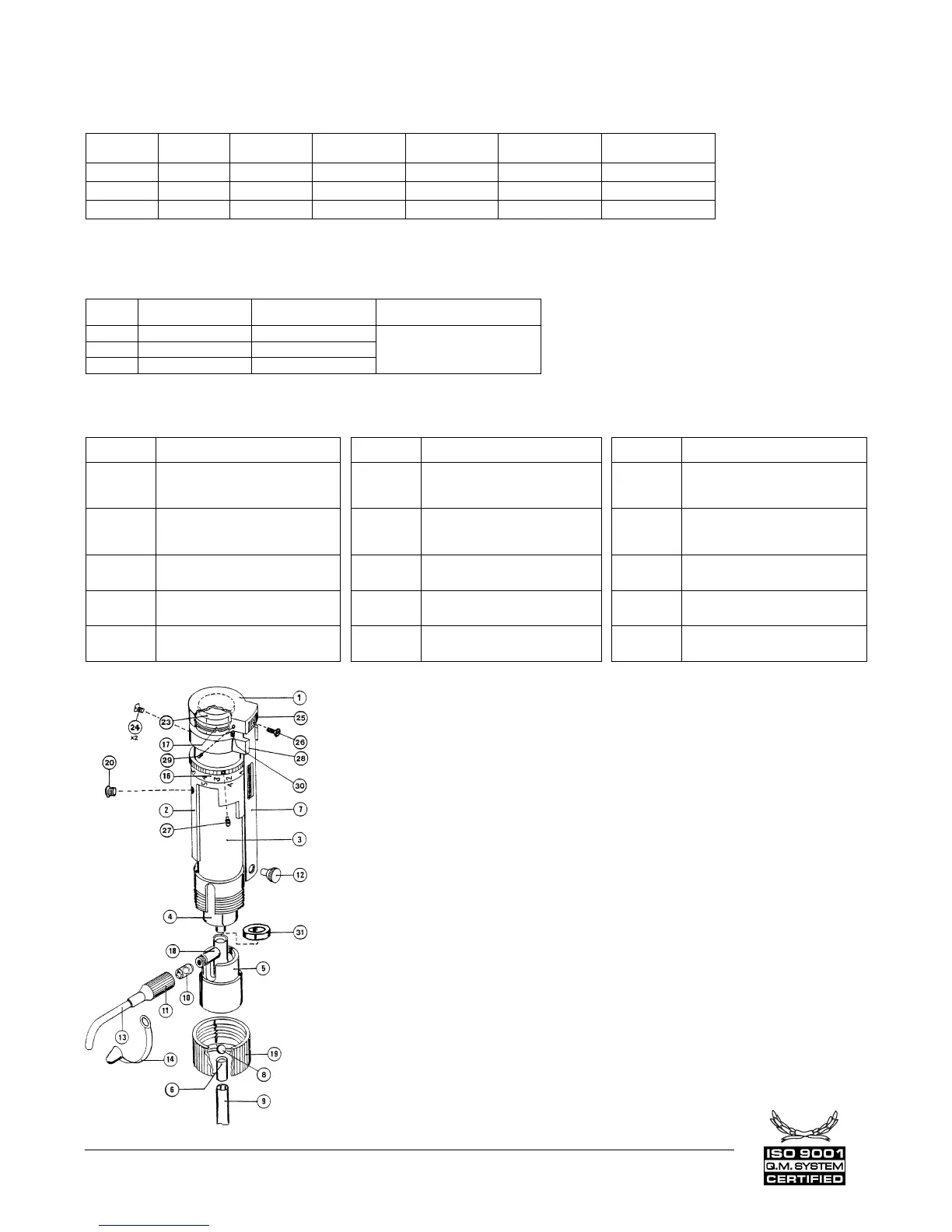

SPARE PARTS
1. Plunger cap
2. Selector assembly
3. Sleeve
4. Glass barrel
5. Body
6. Intake valve
7. Guide bar
8. Intake valve ball
9. Feed tube
10. Outlet valve assemblyOutlet valve assembly
11. Delivery jet connector
12. Stop screw
13. Delivery jet
14. Tip cap
16. Vernier ring
17. Nut
18. T-union
19. Ring
20. Clik stop assembly
24. Guide ring fixing screw
25. Guide bar fixing plate
26. Guide bar fixing screw
27. Vernier finger
28. Guide ring
29. Calibration fixing screw
30. Calibration screw
31. Distance ring
ERSATZTEILEZTEILE
1. Kolben Deckel
2. Selektor Aggregat
3. Mantel
4. Glaskolben
5. Körper
6. Saugventil
7. Führungsstangeührungsstange
8. Kugel (Saugventil)
9. Saugschlauch
10. Ausgangsventil
11. Mutter, Ausstosskanüle
12. Blockierschraube
13. Ausstosskanüle
14. Deckel
16. Vernier Ring
17. Mutter
18. T-Stück
19. Ring
20. Clik stop Aggregat
24. Führungsring Schraube
25. Führungsstange Platte
26. Führungsstange Schraube
27. Vernier Finger
28. Guide Ring
29. Blockierschraube
30. Kalibrierschraube
31. Distanzring
LISTE DE PIÈCES
1. Capuchon
2. Assemblage selecteur
3. Douille
4. Cylindre de verre
5. Embase
6. Soupape d’aspiration
7. Régletteéglette
8. Bille, soupape d’aspiration
9. Tuyau d’aspiration
10. Soupape de distribution
11. Raccord de bec
12. Butée
13. Bec verseur
14. Capuchon du bec
16. Bague de réglage
17. Ecrou
18. Raccord en T
19. Bague
20. Assemblage cliquet
24. Vis, bague réglette
25. Plaquette
26. Vis, réglette
27. Vernier index
28. Bague, réglette
29. Vis de blocage
30. Vis de calibration
31. Bague de calage
