Sofar 100KTLX-G4 User Manual

Wiring ProcedureWiring Procedure
Requested cable dimensions SOFAR 100 – 125KTLX-G4
Cable cross-sectional area of L/N: Copper Wire:95 – 185 mm²
Aluminum Wire:120 – 240 mm²
Cable cross-sectional area of P/E: 16 – 35 mm²
Multi-core cable O.D. range: ≤60mm
Single-core cable O.D. range: ≤32mm
1. 1. Open the cover, see Open the wiring box on page 31.
2. 2. Turn OFF the AC circuit breaker and secure against reconnection.
3. 3. Unscrew the nut of the AC terminal block and select the sealing ring according
to the outer diameter of the cable. Insert the nut, sealing ring into the cable in
sequence.

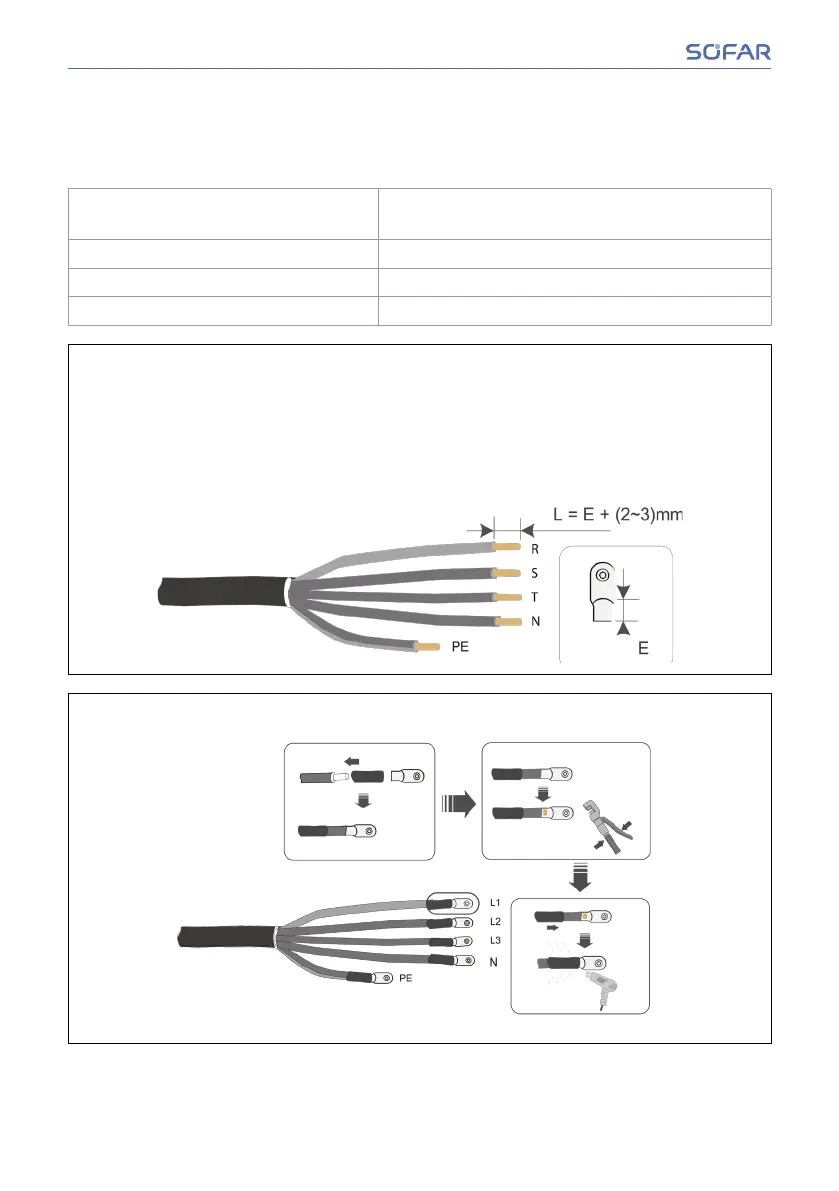

4. 4. Removetheinsulationlayerofanappropriatelengthaccordingto󰘰gurebelow.
5. 5. Crimp the Terminal.
34/78 SOFAR 100...125KTLX-G4
Electrical Connections
