Soho 1 - Assembly Instructions; Step 1: Connect Front Center Mast and Canvas Shelf; Step 2: Attach Top Easel Support Bar and Brass Plate; Step 3: Connect Back Center Mast and Support Arms

Parts Needed: A, F, H, N, T, Screwdriver

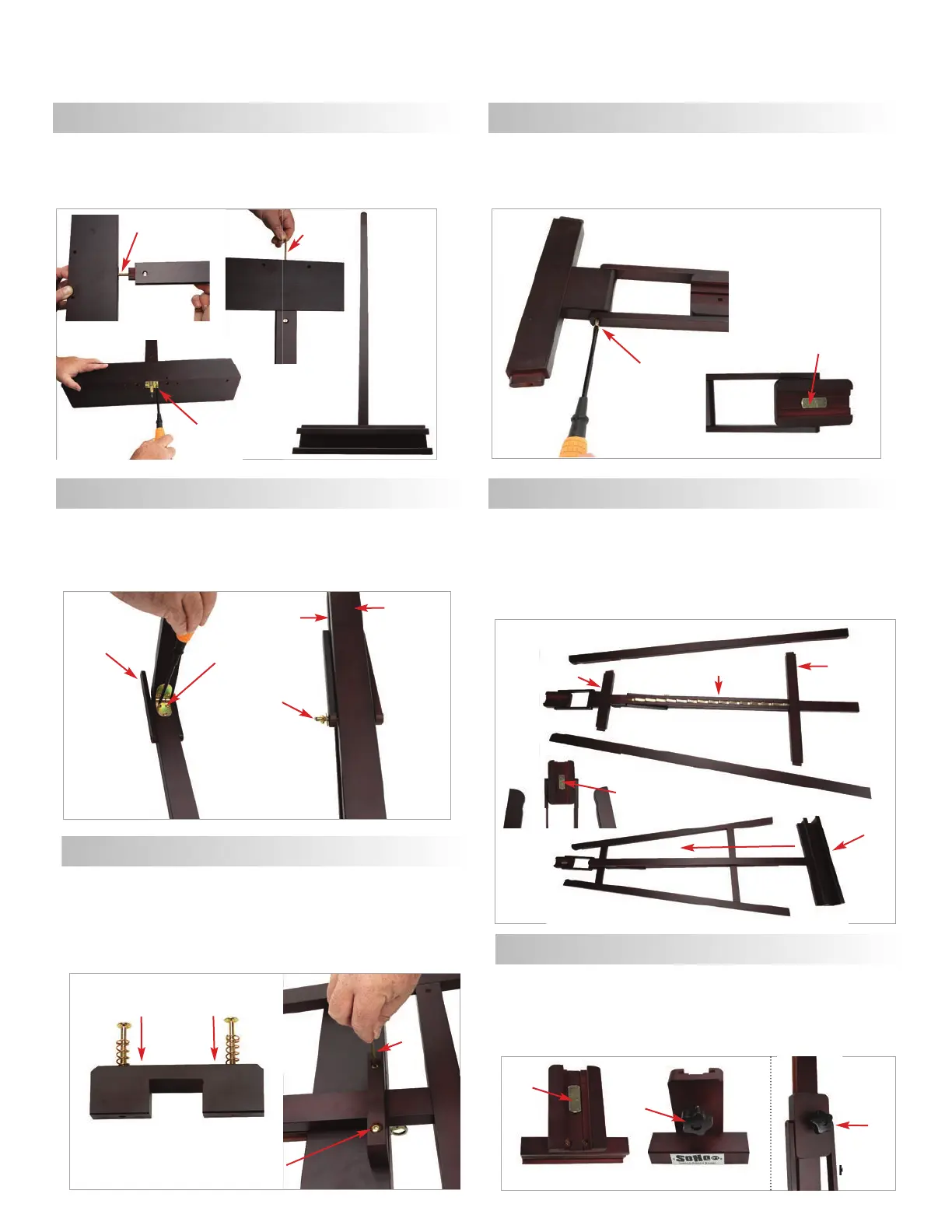

First, connect the front center mast (T) to the front canvas shelf (N) using the 4.5"
bolt and barrel nut (F) tighten using the Allen wrench (A). Next, secure the ratchet
system (H) to the bottom of the canvas shelf (N).
STEP 1
Assembly Instructions
H
T
Parts Needed: Screwdriver, I, K, O, B
Attach the top easel support bar (O) to the center mast support bar (K) using
the ¾" wood screws (B). Next, secure the brass plate (I) to the center mast
support bar (K).
STEP 2
I
Parts Needed: Screwdriver, C, R, Q, E
Connect the back center mast (Q) to the center leg support (R) using the
3
⁄8" wood
screws (C). Next, connect the small support arms through the 3" long slot in the
center leg support (R) using the 3" bolt and wing nut (E).
STEP 3
Parts Needed: A, G, O, P, S, K, Q, T
Begin by placing back center mast (Q) between top and bottom center supports (O)
and (P). Then join (O) and (P) to right and left support legs (S) using the 3" bolts
and barrel nuts (G). Lay the easel flat on it’s backside and slide the front center
mast (T) into the center mast support (K), from the bottom up. Ensure that brass
plate is still in place before sliding the mast up.
STEP 4
Connect arms
through the 3"
long opening of R
Small
support
arms
Parts Needed: A, D, L, N, Q, P
Turn the easel upside down, then slide the springs onto the 2" bolts (D). These go
into the “U” support bar (L). Attach the “U” support bar (L) to the back of the front
canvas shelf (N). Note that the back center mast (Q) will pass through the “U”
support bar (L). Please note, due to the use of springs, use pressure to secure the
2" bolts to the barrel nuts using the Allen wrench (A).
STEP 5
Parts Needed: I, J, M, T, K
Add a brass plate (I) to the back of the top canvas support (J). Then slide the top
canvas support (J) onto the front center mast (T) from the top down, keeping the
brass plate (I) secure. Next, secure with a black turn knob (M). Finally, secure the
center mast support (K) with a black turn knob (M).
STEP 6
N
I - secure the brass plate
D - 2" bolts with springs fit here
Use pressure when
securing the bolts
J Back
J Front
K
S - Right leg
S - Left leg
O
P
O
K
N
N
Q
(ratchet side
down)
R
A
E
R
Q
T
N
B
I
M
M
T
A
L
N
C
K
F
Q+R
T+N
K
Q
P
K
