70
Electrical Connection
Step 4: Connect the assembled communication cable into the COM 2 terminal. Secure
the assembled connector on COM 2 terminal.
a. Install the connector enclosure back into the COM 2 terminal.
b. Install the cable support sleeve into the enclosure.
c. Tighten M3 screw to secure it. (Torque: 0.4 ± 0.1 N·m)
d. Clockwise tighten the swivel nut to finish the COM 2 wiring connection.
Click!
M3
0.4 ± 0.1 N·m
1
2
4
3

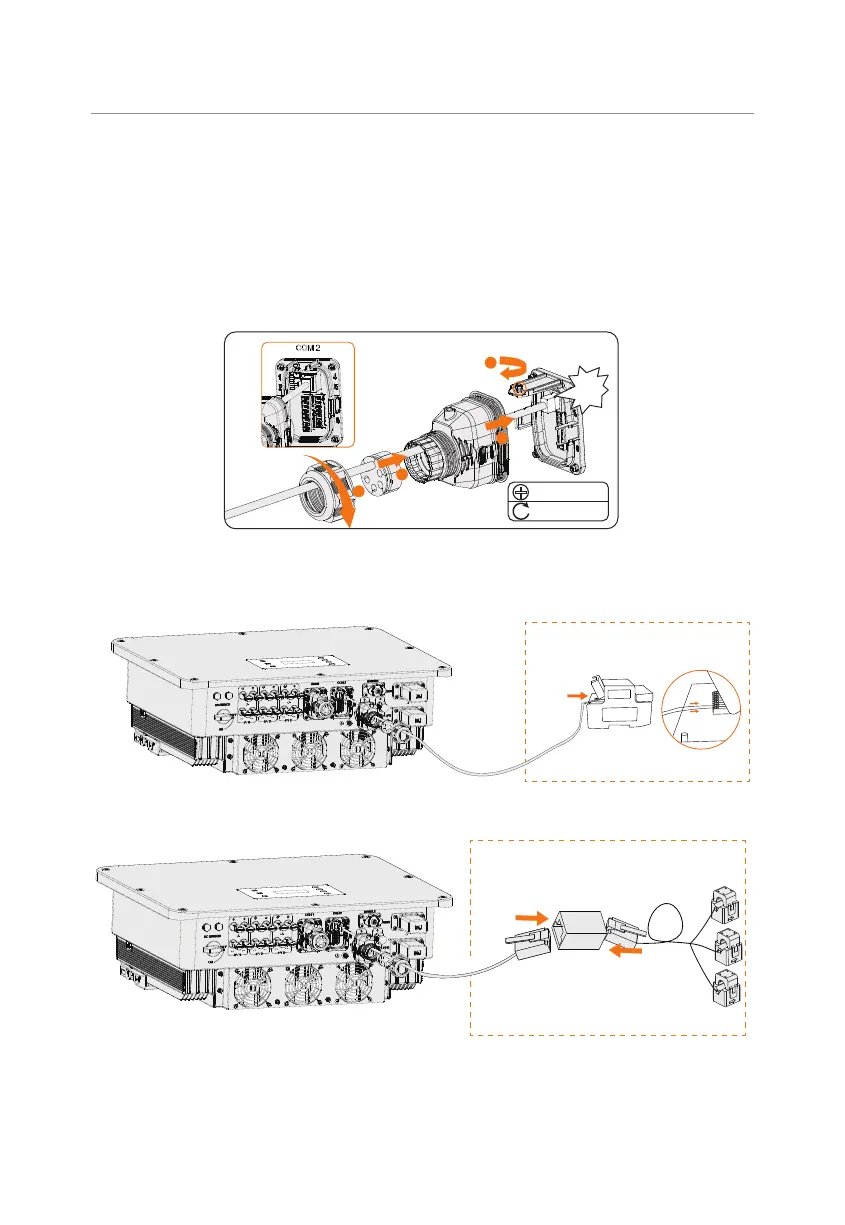

Figure 8-51 Connecting to COM 2
Step 5: For wire meter connection, insert another side of the communication cable into
meter. For CT connection, connect the other side to CT.
Figure 8-52 Connecting to wire meter
Figure 8-53 Connecting to CT
To Next Page
