19
EN
DE
FR
ES
IT

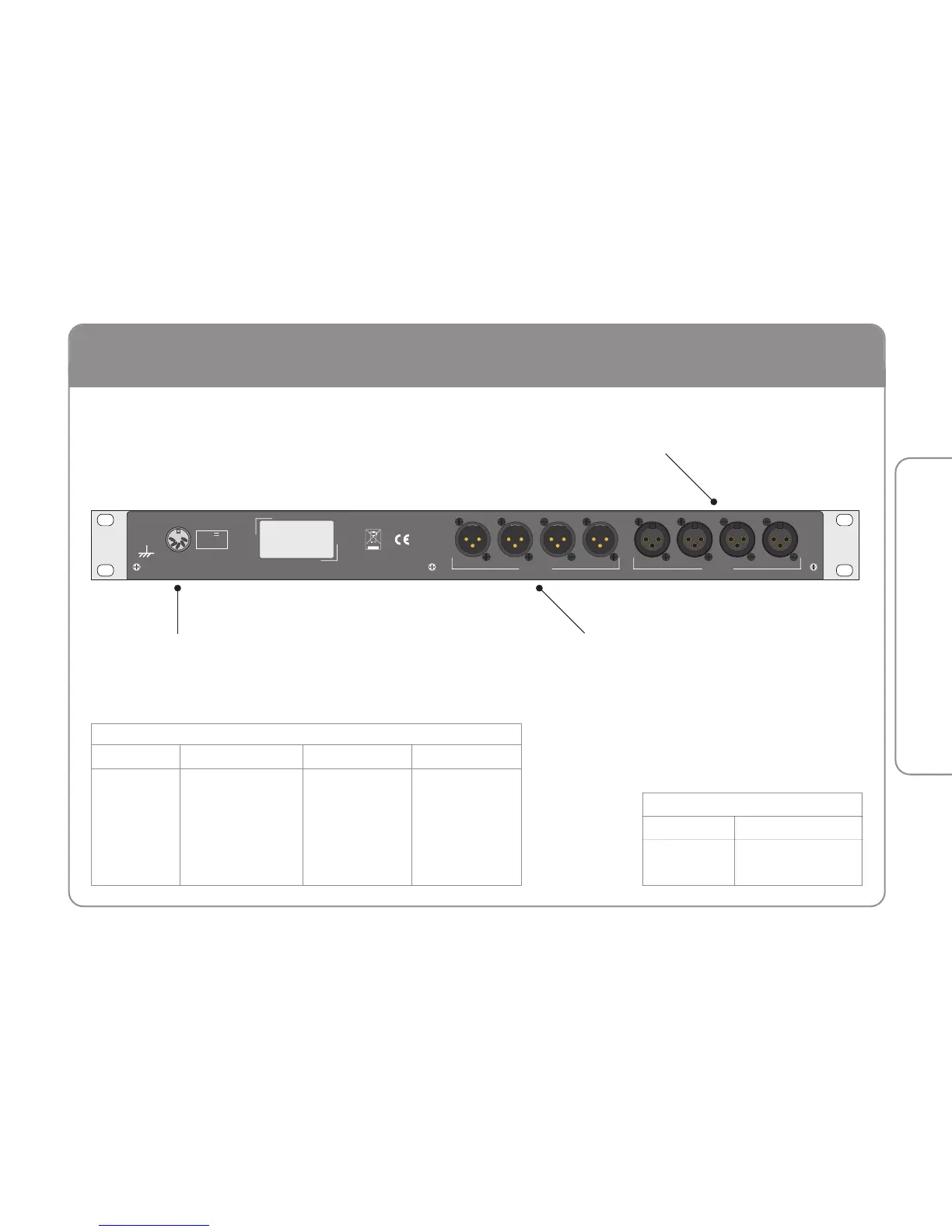

2. Connect
POWER
+5V - 0.5A
+
/-15V - 0.3A
DC
MANUFACTURED IN U.K.
INPUT
4
3
2
1
OUTPUT
4
3
2
1
Solid State Logic - Oxford - England
ALPHA VHD Pre
Part no. 629998XA
Serial No
12345
Connections sur panneau avant
DIN 5 broches 180° XLR-F 3 broches XLR-M 3 broches
Pin 1 0V 0V 0V
Pin 2 0V +ve +ve
Pin 3 +5V –ve –ve
Pin 4 –15V
Pin 5 +15V
Connections sur panneau arrière
Instrument Jack 6,35 mono
Pointe (Tip) Signal
Gaine (Sleeve) 0V
Courant continu
+5V, ±15Vdc fourni par
l’alimentation externe
Sortie Analogique
Symétrique, niveau de sortie maximal: +24dBu
Entrées microphone
Symétriques, niveau d’entrée maximum: 0dBu (+20dBu avec Pad)
