10. Appendix 10. Appendix
Stripping conductor: 18±1mm
conductor
Insulation
18±1mm
10.1 Battery Terminal Assembly
In order to avoid DC arc, Solis suggest to install a DC switch between the battery and RHI inverter.
Make sure the polarities of battery is correct before connecting to the inverter;
Please follow the instructions below to choose the battery power cable.
NOTE:
Power cable uses water-proofed AMPHENOL connectors. It must keep pressing
this Lock Button during pulling out the power plug.

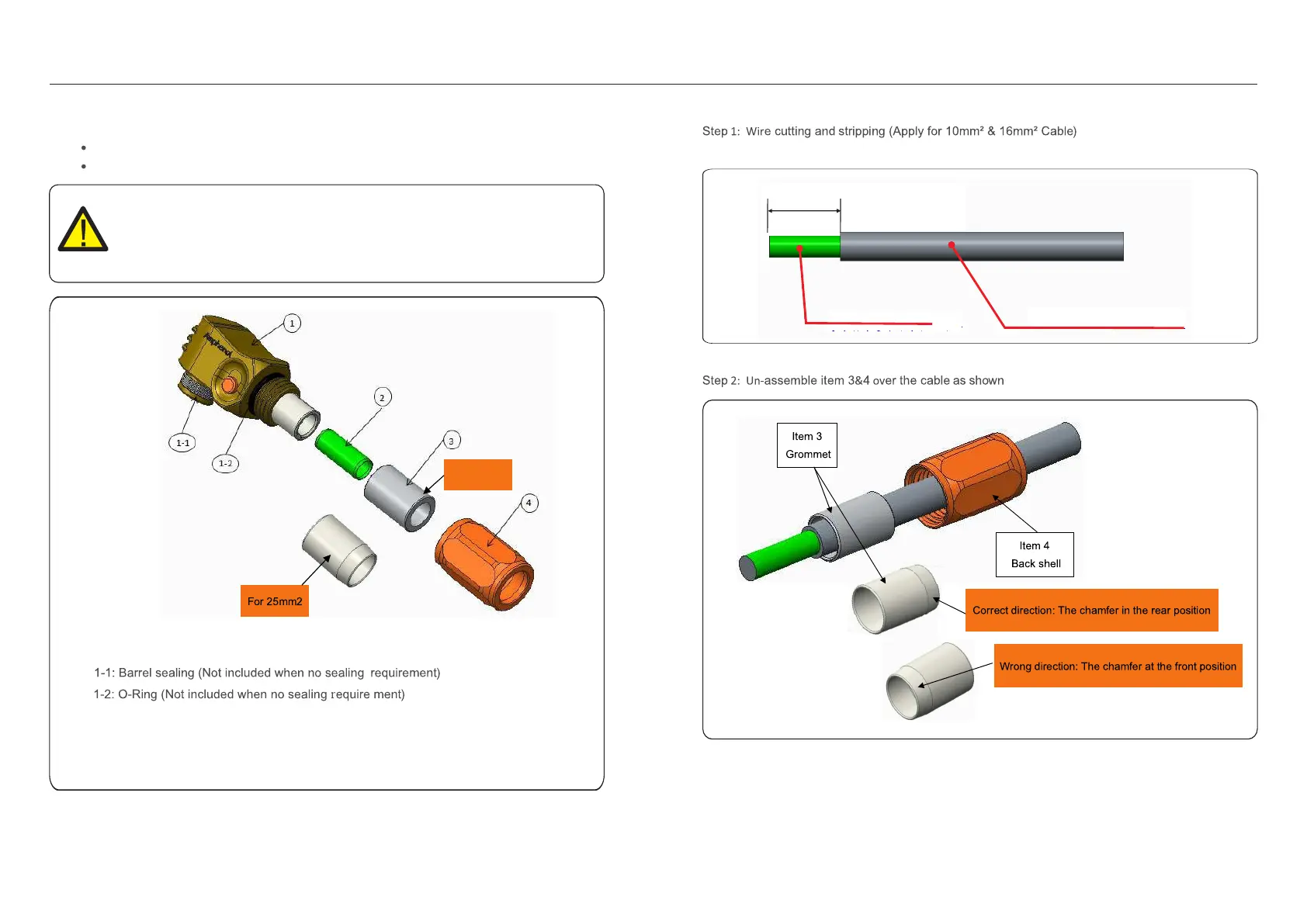

For 16mm2
①:Connector Body
②:Barrel(Only forcable size 16mm²）
③:Grommet(Not included whenno sealing requirement)
④:BackShell

SOLIS RHI-5G Series Specifications

General

Type	Hybrid Inverter
Max DC Voltage	600 V
Max DC Input Power	6500 W
Nominal AC Output Power	5000 W
Max AC Output Power	5500 W
Number of MPPTs	2
Battery Voltage Range	40-60V
Max Charge/Discharge Current	100 A
Protection Degree	IP65
Frequency	50/60 Hz
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Model	RHI-5G
Rated Power Output	5kW
MPPT Voltage Range	90 V - 520 V
Efficiency	97.6%
Communication Interfaces	RS485, WiFi
Nominal AC Voltage	230V
