SOLIS S5-EH1P-L User Manual

6. Operation 6. Operation
.62..61.
6.6.6.2 Battery Select
This product is compatible with multiple battery models. Please refer to the latest
compatible battery list on Solis company website.
WARNING:
Inverter must be installed with compatible battery models. Any defect,
damage or collateral loss due to using a non-compatible battery is not
in the scope of inverter warranty or compensation.
Please refer to the battery compatible list on Solis company website for
information on latest compatible battery models.
For above compatible battery modules, Only three parameters need to be defined:
* OverDischg SOC (10%~40%, default 20%)
--Inverter will not discharge the battery when the OverDischg SOC is reached.
Battery self-discharge is unavoidable,SOC may go lower than the limit if the battery
can't get charged for a long period of time.
* ForceCharge SOC (5%~OverDischg SOC, default 10%)
--To prevent the battery going into sleep mode, when the ForceCharge SOC is reached,
inverter will charge the battery using the power from either PV or Grid.
* ForceChg Limit (0A~100A, default 100A)
--Determine the battery charge current limit when inverter operates in force charge status.
B-BOX LV

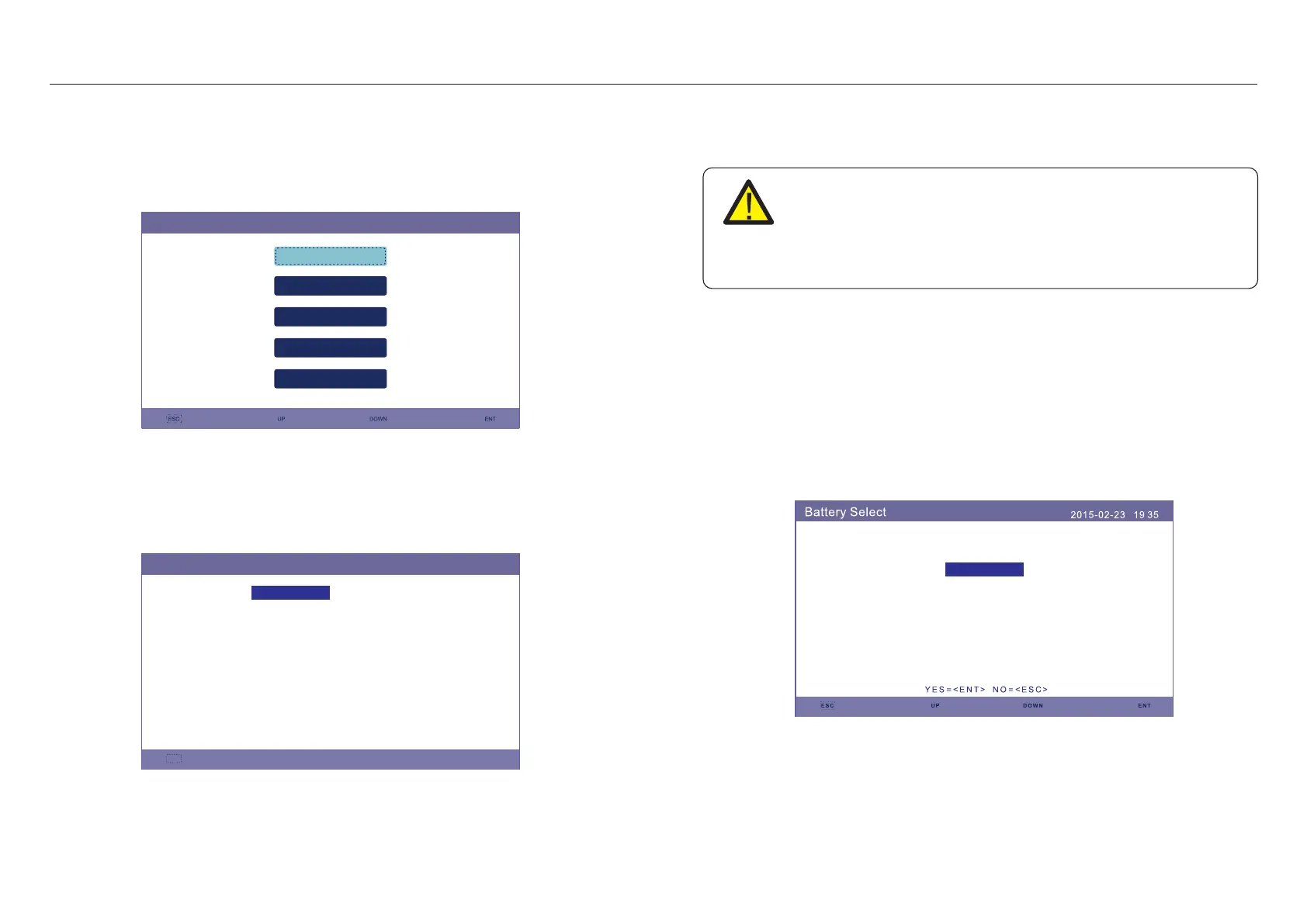

Figure 6.33 Battery Select
Battery Module:
6.6.5 Restart HMI
This function is to reboot the LCD screen.
Settings
Storage Energy Set
2015-02-23 19 35
Control Parameter
Battery Select
Storage Mode Select
Battery Wakeup
6.6.6 Storage Energy Set
Figure 6.31 StorageEnergyset
Meter Set
This section contains working mode setting, battery control setting, etc.
6.6.6.1 Control Parameter
Enter the Control Parameter menu as shown below:
Don't change the settings without the permission of technicians.
Settings
Control Parameter
2015-02-23 19 35
Backup Supply：
Backup Votage：
Current Direction：
Battery Current：
Floating Charge：
Battery Overoltage：
Battery Undervoltage：
Disable
230.0V
Charge
000.0A
E S C
U P
D O W N E N T
Charge Limitation：
Discharge Limitation：
000.0A
000.0A
Equalizing Charge：
055.0V
000.0V
056.4V
046.0V
S E T = < E N T > D O N E = < E S C >
Figure 6.32 Control Parameter
Voltage Droop：
Disable
