DIGITAL MODELS
D
ESCRIPTION
1 - Selector.
2
- Fault Indicator
3
-
Arc reinforcement current (Ifor): MMA mode. This parameter configures the increase in peak cu-
rrent while welding to increase welding power by shortening the arc. The adjustment values vary from
0% to 25% of the increase over I1.
4
- Welding current (I1):
This parameter will introduce the current in amperes the equipment should
supply; this will depend on the electrode used. The setting limit lies between 10A and 200A (in accor-
dance with the model).
5 - Start current (Ihot): MMA mode. Determines the initial arc current (Hot Start), improving the start-up
of difficult electrodes. In this case the values vary from 0% to 25% of the increase over I1. After selec-
ting the % increase, you can determine the duration of Ihot.
6 - Units of measurement: A = Amps.
7 - Units of measurement: S = seconds.
8 - Units of measurement: % = percentage.
9 - Display.
10 - MMA weld mode indicator.
11 - TIG weld mode indicator.
TO SELECT THE WELDING MODE
Press 1 for 2 seconds. The display shows _ _ _. Turn 1 to select between MMA or TIG mode. Press 1 again
to accept your option.
TO MODIFY A PARAMETER
Turn Selector 1 to the right or to the left to select your welding parameters. The number of available parame-
ters depends on the welding mode selected. To modify a parameter, press selector 1 briefly until the LED in-
dicator flickers. Turn the selector to choose the welding parameters. Press 1 again to accept the change.
Some parameters can be double as, for example, the Ihot. In this case, the LED lights up to show two values:
Current in %, and Time in seconds.
PARAMETERS FOR MMA MODE
- I1 (A): Main welding current
- Ihot (%): Initial welding power expressed in % - which will be added to I1 (LED % lit).
- Thot (S): Parameter in which both the Ihot LED and the S (seconds) LED are lit. The time displayed will be
the time-value applied in the Ihot parameter.
- Ifor (%): Additional current that the unit will supply in case of short-circuit. Value expressed in % which will
be added to I1.
PARAMETERS FOR TIG MODE
- I1 (A): Welding current in Amps
FAULT LED
This LED lights up when there is a fault in the unit. It indicates either too low supply voltage or overheating.
The Fault Indicator might light up during a few seconds when the unit starts. The display will show Er1.

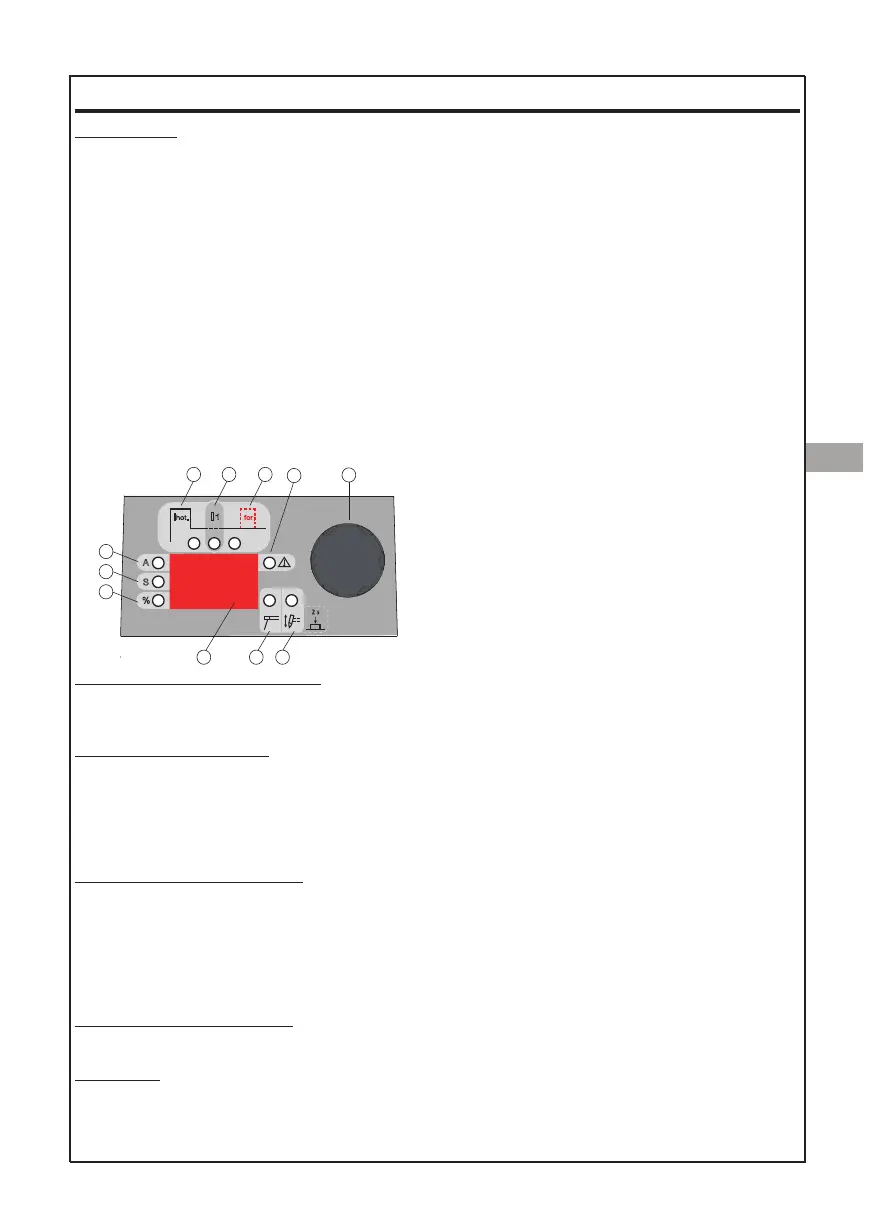

I 1 I for. I hot.
A
%
S
1
2
345
6
7
8
9 10 11
