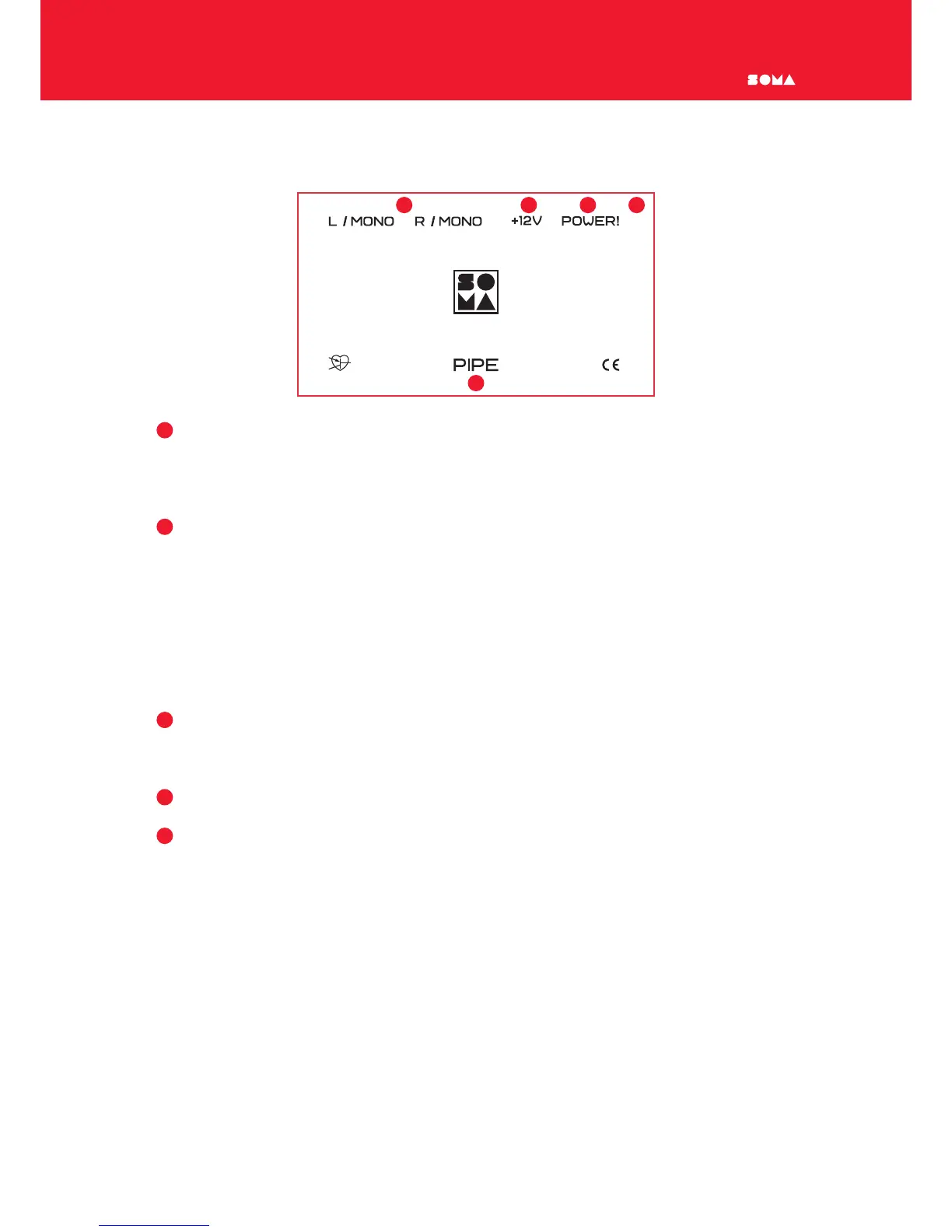

BREAKOUT BOX
1
Custom XLR connector for connecting the PIPE. The instrument is connected using a
special cable that transmits the L/R audio signal and power. Please note: The pin arrangement
is irregular. Use only the cable that is supplied with the PIPE and do not use it with other
equipment to avoid damage.
2
Outputs: LEFT OUT and RIGHT OUT — 6.3 mm jacks. The PIPE outputs can be used for an
unbalanced or balanced connection. Average output voltage when the volume knob is turned
up to the maximum — 2V p-p. The peak output voltage — 9V p-p. The output resistance is
150 Ohm. The PIPE outputs can be connected directly to long balanced cables (up to 25
meters) without the need for a direct box.
Both outputs can be used for mono signals. When only one jack is plugged in, both channels
will be combined into that channel. The PIPE has a wide and beautiful stereo signal, so it is
highly recommended to use a stereo connection to fully enjoy its sound.
3
Power supply socket: +12V DC, center positive. Power supply unit should be very stable
and designed for at least a 0.15A load. It is recommended to use the power supply that
comes with the instrument.
4
Power switch.
5
Power indicator.
2 3
1
4 5
