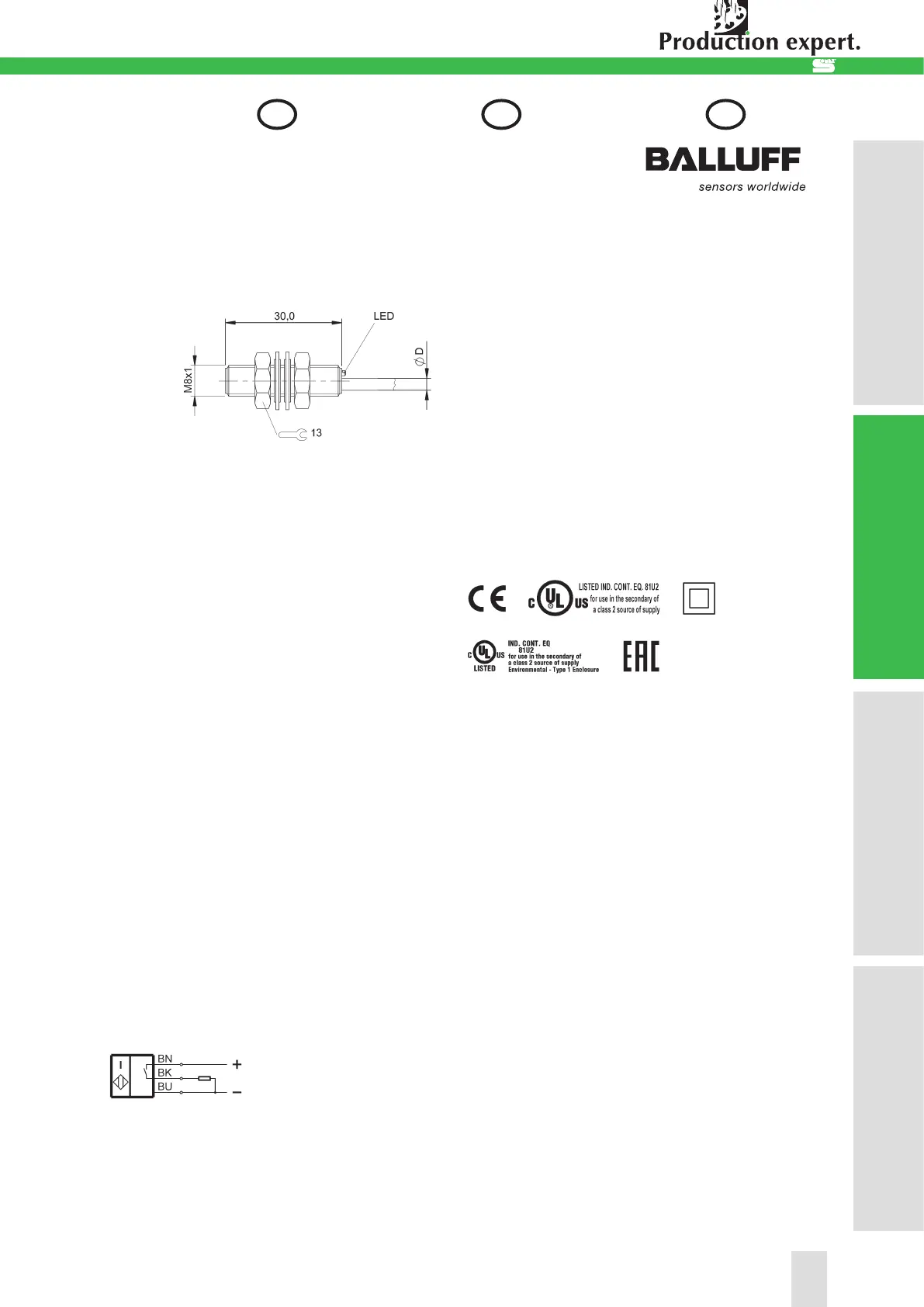

BES 516-324-E4-C-PU-03
BES00N5
Inductive sensor
PNP
Normally open (NO)
1.50 mm
Flush (shielded)
Cable, PUR, 3.00 m
General attributes
Approvals / Conformity CE
cULus
EAC
Basic standard IEC 60947-5-2
Enclosure Type per IEC 60529 IP68 according to BWN PR 20
Function indicator Yes
Polarity reversal protected Yes
Power indicator No
Protection Class II
Short circuit protected Yes
MTTF 830 a
Electrical attributes
Connection type Cable
Eff. operating current Ie 200 mA
Eff. operating voltage Ue DC 24.0 V
Electrical version DC, direct current
Load capacitance max. (at Ue) 0.500 µF
Max. no-load cur. Io undamped 3.0 mA
Minimum operating current Im 0 mA
No-load current Io damped max. 9.0 mA
Operating voltage UB max. DC [V] 30.0 V
Operating voltage UB min. DC [V] 10.0 V
Rated insulation voltage Ui 250 VAC
Rated short circuit current 100 A
Ripple max. (% of Ue) 15 %
Switching freq. f max. (at Ue) 2500 Hz
Switching function Normally open (NO)
Switching output PNP
Voltage drop static max. 2.5 V
Mechanical attributes
Ambient temperature Ta max. 70 °C
Ambient temperature Ta min. -25 °C
Assured operating distance Sa 1.20 mm
Cable diameter D max. 3.1 mm
Cable jacket material PUR
Cable length 3.00 m
Conductor cross-section 0.14 mm²
Depth 30.0 mm
Diameter d1 M08x1
Eff. operating distance Sr 1.50 mm
Housing material Stainless steel
Mech. installation condition Flush (shielded)
Mounting length 29.0 mm
Number of conductors 3
Rated operating distance Sn [mm] 1.50 mm
Sensing face material PBT
Tightening torque 8 Nm
Remarks
The sensor is functional again after the overload has been eliminated.
For further information on MTTF/B10d, please refer to the MTTF / B10d Certificate.
Specification of the MTTF value and the B10d value do not represent any binding quality
and/or life expectancy guarantees.
