UNPACKING:
Save your carton and the styrofoam inserts for future safe
transport, in case you move or the unit ever requires shipping
for repair. It is best if you place it into an additional outer
“over-carton” before shipment to minimize a chance of theft
in shipment.
Before you proceed, find the serial number which is located on
the rear panel of the unit and note it here for future reference or
in case of theft in shipment.
PLACEMENT:
Keep your Sonamp out of direct sunlight and away from
windows where rain may enter. It should be placed away from
heat sources such as hot air ducts or radiators; do not place the
unit directly on a pile carpet that could interfere with air flow
into its bottom vent opening. If you stack your components, it
is better to place the Sonamp above or alongside your other
components; when driven hard, the unit itself may create a
little heat and disturb components stacked on top of it. If it is
inside a cabinet, allow ample ventilation. Very sensitive low
level sources might pick up some hum radiating from its
enormous power supply.
MAKING CONNECTIONS:
Before making any signal or speaker connection, make sure
your power amplifier is turned off and unplugged. When
making connections,make sure there is no strain or tension on
input leads or speaker wires that could cause them to pull loose
in the future.
Input Connections:
Use the RCA jacks for the R and L channels.Make sure these are
consistent with R and L outputs from your preamplifier.
Looping Jacks
Your Sonamp provides a pair of RCA output jacks which
duplicate the input signal. These facilitate connection of
additional power amplifiers from a single source component.
With only a single input connector pair you can link or “loop”
amplifiers without messy Y-cord adapters.
Speaker Connections
You may use either bare wire or banana plugs with the Sonamp
“5-way” terminals. If you use bare wire without spade lugs or
plugs, make sure you strip only enough wire (1/2") to fit into
the slot in the terminal. Before inserting the wire, twist all its
strands tightly to prevent strays that could cause a short circuit
between + and - terminals! Insert wire in the direction of
terminal rotation (clockwise) to force wire around terminal
post for secure connection.
Sonance • 961 Calle Negocio • San Clemente, CA 92673-6202, USA • (800) 582-7777 or (949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (800) 582-0772
AUTO ON
OFF ON
LINE
LINE
OUTIN
L
R
WARNING:
HAZARDOUS ENERGY, MAKE PROPER SPEAKER
CONNECTIONS; SEE OWNERS MANUAL BEFORE USING
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE
ATTENTION:
DEBRANCHER AVANT DE REMPLACER LE FUSIBLE
ATTENTION:
VOIR LE CAHIER D' INSTRUCTION
ATTENTION:
UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE
HAZARD USE ONLY SAME TYPE AND RATING FUSE.
47K
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS:
RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
SONANCE
S/N
A DIVISION OF DANA INNOVATIONS
SAN CLEMENTE, CA 92672
+
+
--
L
R
SONAMP 2120T
AC FUSE
3AG 8A
120VAC/60Hz
750 VA
USE 8
Ω SPEAKERS
SPEAKER
4
12
3
5
6

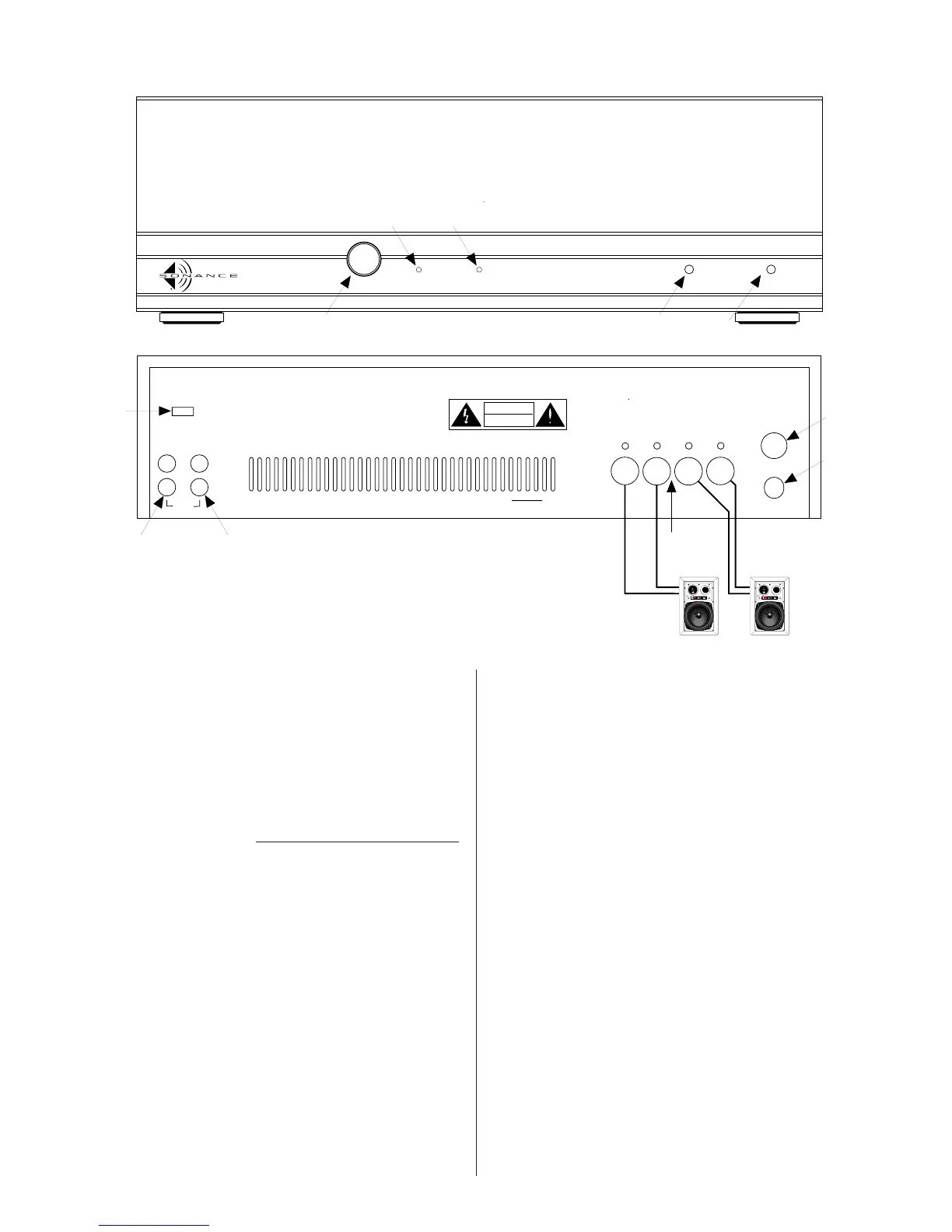

A. FRONT PANEL
1. POWER SWITCH
2. ACTIVE L.E.D.
3. POWER L.E.D.
4. INPUT LEVEL CONTROLS
B. REAR PANEL
1. RCA INPUT JACKS
2. RCA OUTPUT JACKS
3. SPEAKER TERMINALS
4. AUTO ON DEFEAT SWITCH
5. AC POWER CORD
6. FUSE
B
A
POWER LRA.C. ONACTIVE
4
4
1
2 3
IR
PN.33-0807
T4000
FLAT
BASS
MID
TREBLE
BASS
MID
TREBLE
HI IMP
8Ω
LIVE
ROOM
DEAD
ROOM
IR
PN.33-0807
T4000
FLAT
BASS
MID
TREBLE
BASS
MID
TREBLE
HI IMP
8Ω
LIVE
ROOM
DEAD
ROOM
SONAMP 2120T
