PCB1210 - 28-08-08
INSTALLATION EXAMPLES
These characteristics are for information purposes only. The manufacturer reserves the right to make modifications without prior notice in order to improve the product.
ASSEMBLY RECOMMENDATIONS: All the “COMPACT” series modules can be placed over the various types of embedded boxes,
for which we have various types of front frames that are delivered separately. THE BASIC COMPACT SERIES CONTROL DEVICES
CAN BE ASSEMBLED WITH ALL THE PRESTIGE LINE RANGE OF FRONT FRAMES, WITH THE EXCEPTION OF MODELS
KC9300 AND KC9302.
For further details please see www.sonelco.com

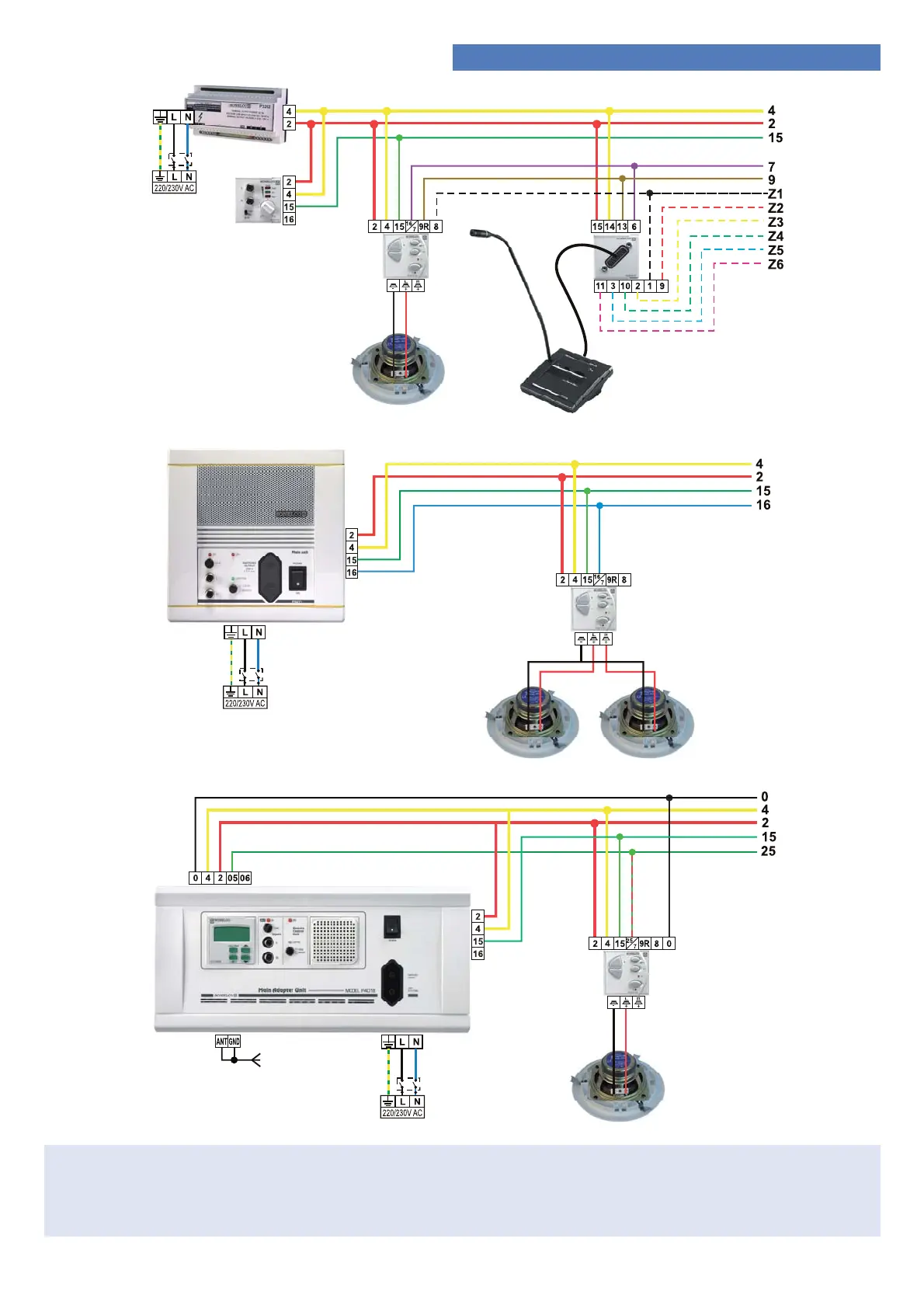

A MONO CHANNEL + WARNING RECEPTION
A STEREO CHANNEL
TWO MONO CHANNELS
P3262
PC3110
PCB1210
P4715 P5556
PC9405
This type of installation, 1 mono channel +
warnings requires SW2 and SW3
PCB1210
P4715
P3271
For this type of installation, 1stereo channel the bridges must be removed
PCB1210
P4715
P4018SE
This type of installation, 2 mono channels requires
bridges SW1 and SW3.
Although the example shows the
installation of the control with one
speaker, it could also be installed with
two speakers (see wiring diagram of
one stereo channel)
Although the example shows the
installation of the control with one
speaker, it could also be installed with
two speakers (see wiring diagram of
one stereo channel)
