These characteristics are merely for information purposes. The manufacturer reserves the right to introduce modifications without prior notification in order to improve the product
PCP1272 26-07-10
ASSEMBLY RECOMMENDATIONS: All the modules of the “COMPACT” series can be placed on different types of flushmount boxes, for which we have several
types of front frames, which are supplied separately. For further details, see www.sonelco.com

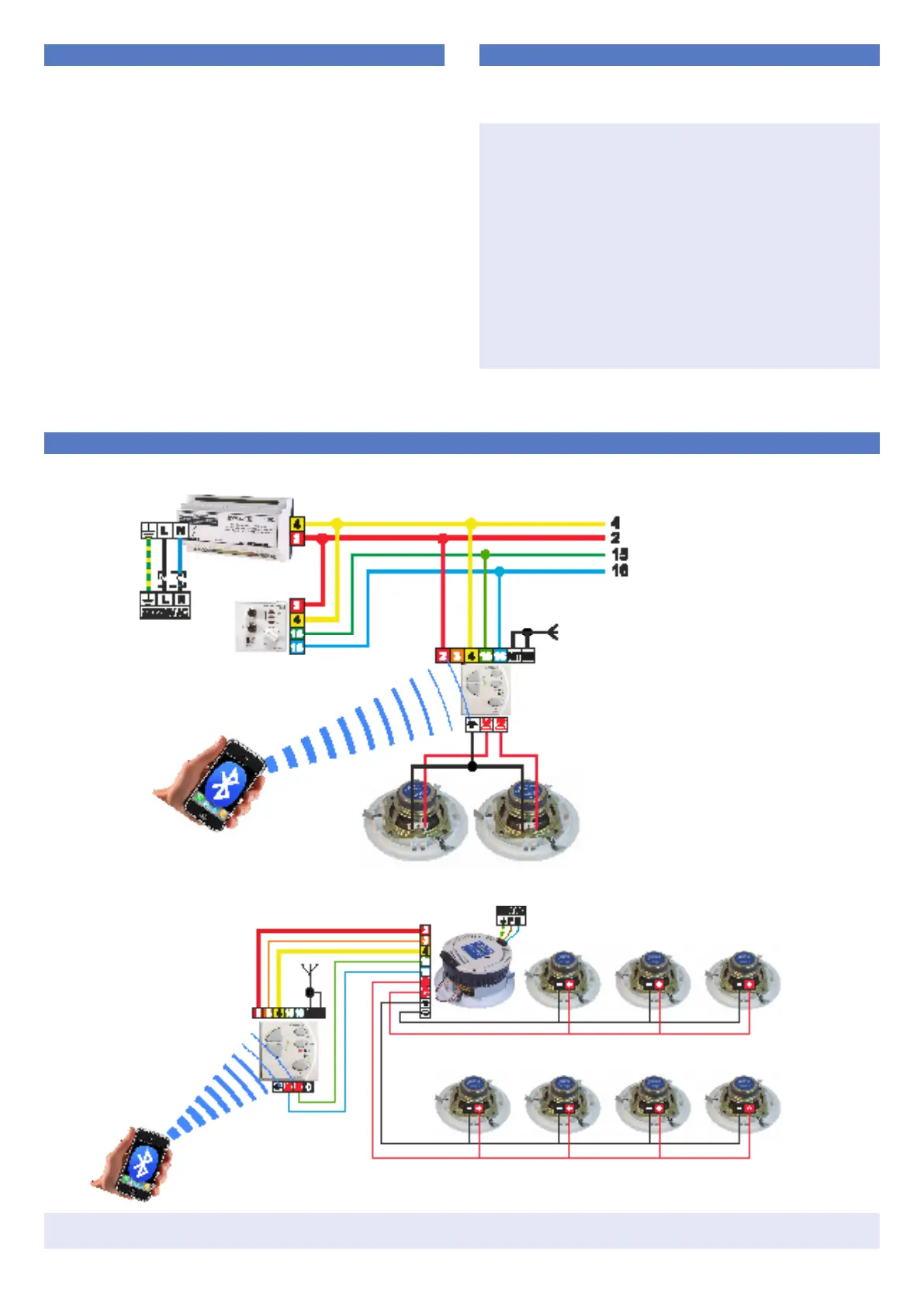

INSTALLATION EXAMPLE
P3262
PC3110
P4715
PCP1273
CONNECTION
Before proceeding to make the connection make sure that the power
supply unit is off. Insert the control in the metal frame and make the
connection according to the following instructions:
TERMINALS:
0 - SCAN – Only in AUX mode (output)
2 - Input +16V power supply
3 - Output +16V after the switch
4 - Ground
15 - Left channel audio input and power supply source telecontrol.
16 - Right channel audio input
7 - Message audio input
8 - Zone selection input. Connect with relative zone wire Zx
(in case of messages by zones)
9R - General call input.
L+ - Output for left speaker
R+ - Output for right speaker
- - Common ground for speakers
ANT - FM external antenna input
GND - Antenna ground
NOTE: The system must be wired up separately from the mains, accor-
ding to regulations
TECHNICAL CHARACTERISTICS
Power supply voltage: 16VDC
Maximum consumption: 420 mA
Standby consumption: 30 mA
Rated output power:1+1W RMS
Output impedance: 8 Ohm
Maximum output power: 1.5+1.5W RMS
Distortion < 1%
Maximum output current (Terminal 3): 1 A
Frequency response: 80Hz-21KHz (-3dB)
Signal/noise ratio: >87 dB
Input sensitivity (Terminals 15,16): 1.45 V
Crosstalk noise: 40 dB
TUNER
Antenna connector input: 75 Ohm
Reception frequency: 87.50 MHz – 108.00 MHz
Input sensitivity: 2 μV
Programmable search sensitivity: 4 different levels
THE BLUETOOTH
Bluetooth version: 3.0
Distance from Bluetooth: 8 m.
Password: 1234
PCP1273
PCP1273
P4715
P4715
INDEPENDENT SYSTEM
SYSTEM INTEGRATION WITH MOST AREAS
