Sonnenkraft PSC-E Series - Page 8

GB
8

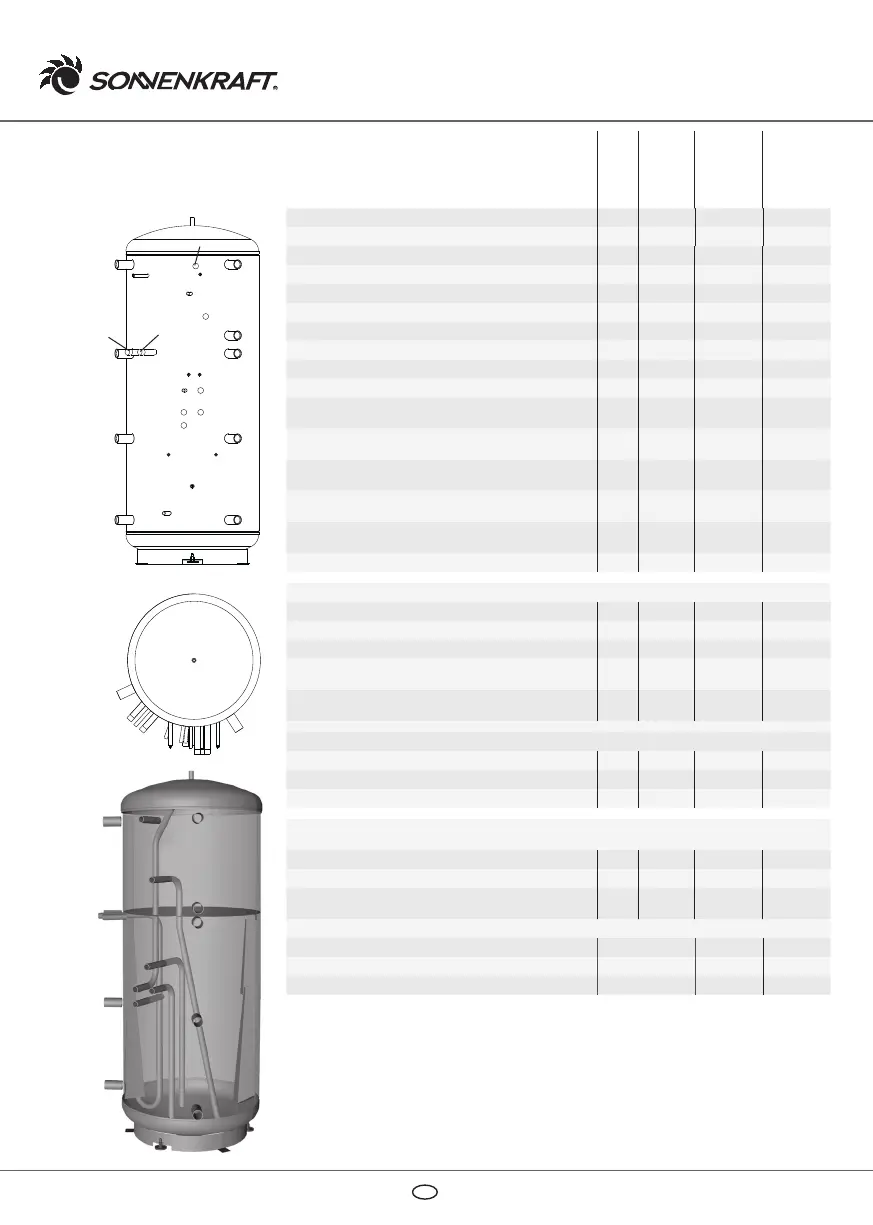

Connection diagram
Specifications
Electric immersion heater EHP can be mounted in the sleeves A, B, C and HP.
SLM50HE-L/R/O: Fastening sleeve M8 top or left/right for stratified charging module
SLM50HE
HKM20HE-BH (RAS-BH): Fastening sleeve M8 for heating circuit module HKM20HE
or return flow lift station RAS20
FWMi-L/R/U: Holding bolts top left/right and fastening sleeve M10 bottom
for fresh water module FWMi
Unit Dia. connection PSC800E PSC1000E
Item no. 121444/C 121445/C
Contents l - 776 912
Diameter insulated
mm - 990 990
Diameter uninsulated mm - 790 790
Height insulated mm - 1860 2140
Height uninsulated mm - 1778 2058
Canted height uninsulated mm - 1830 2100
Weight (uninsulated) kg - 136 150
Permissible heating operating pressure bar - 3 3
Permissible heating operating temperature °C - 95 95
Sleeve A, 2 x (e.g. KVWW boiler flow inlet for warm
water reheating or immersion heater EHP)
mm
Rp 6/4" 1450 1780
Sleeve B, 2 x (e.g. heating flow inlet VL-HZ, immersion
heater EHP or boiler flow inlet for reheating KV-HZ)
mm
Rp 6/4" 1030 1250
Sleeve C, 2 x (e.g. heating return line RL-HZ
or immersion heater EHP)
mm
Rp 6/4" 630 745
Sleeve D, 2 x (e.g. underflow heating return line
RL-FBHZ, draining)
mm
Rp 6/4" 260 260
Sleeve HP 1x (f.e. heat pump return line for hot
water reheating or immersion heater EHP)
mm
Rp 6/4" 1210 1400
EL venting mm
Rp 1/2" top top
Connections, stratified charging module SLM50HE
SLM50HE-O Forward flow "Top" mm
G 1"
1670 1770
SLM50HE-M Forward flow "Middle" mm G 1" 1370 1470
SLMU Return flow "Bottom" mm G 1" 930 1030
F-SLM50HE-O/WW - Sensor immersion sleeve
SLM "top"/warm water
mm
Di 15 x
100
1500 1600
F-SLMU/S - Sensor immersion sleeve
SLM "bottom"/solar
mm
Di 15 x
100
300 300
Connections, fresh water module FWMi
FWMi-VL Forward flow mm G 1" 800 900
FWMi-RLM Return flow "Middle" mm G 1" 722 822
FWMi-RLU Return flow "Bottom" mm G 1" 800 900
Connections, heating circuit module HKM20HE / return flow lift station RAS20
HKM20HE-VL/RAS-VL Forward flow mm G 1" 1158 1258
HKM20HE-RL/RAS-RL Return flow mm G 1" 1158 1258
F-HKM/F-RAS Sensor immersion sleeve mm
Di 15 x
100
930 1030
ErP data hot water storage tank
storage volume
l 776 912
standing loss S
W 131 138
energy efficiency class
- C C
HKM20HE-BH
(RAS-BH)
A
D
C
B
EL
F-SLM50HE-O/WW
SLM50HE-O
SLM50HE-M
HKM20HE-RL
(RAS-RL)
FWMi-RLU
SLM50HE-L
F-HKM20-HE
(F-RAS)
FWMi-L
SLM50HE-O
A
D
C
B
HKM20HE-VL
(RAS-VL)
SLM50HE-R
SLM50HE-U
FWMi-RLM
FWMi-VL
FWMi-R
FWMi-U
F-SLM50HE-U/S
HP
