Sonoff 4CH User Manual

8

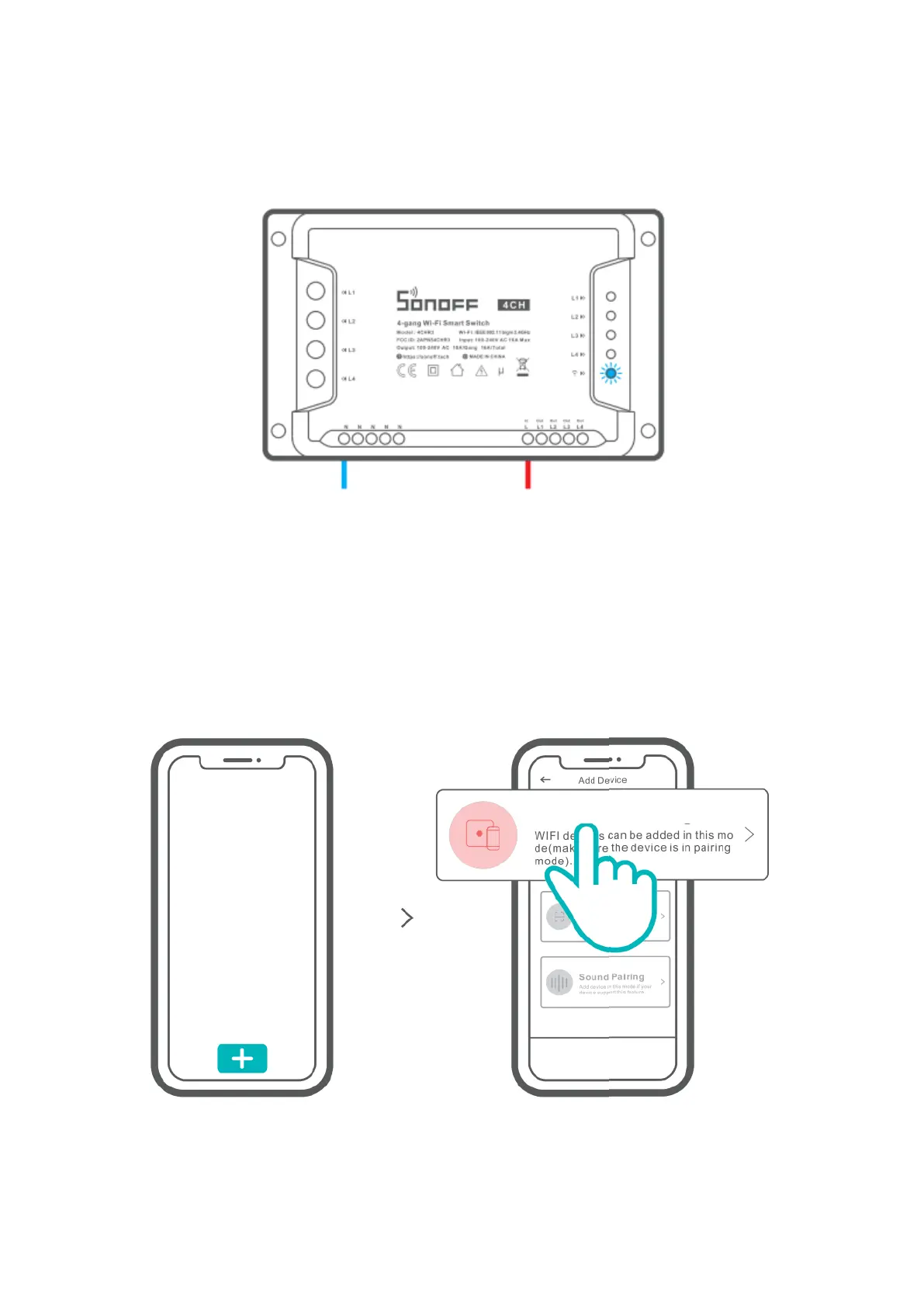

Power on
After powering on, the device will enter the quick paring mode (Touch) during the first
use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash and
release.
The device will exit the quick pairing mode (Touch) if not paired within 3mins. If you
want to enter this mode, please long press any configuration button for 5s until the Wi-Fi
LED indicator changes in a cycle of two short and one long flash and release.
Add the device
Tap “+” and select “Quick Pairing”, then operate following the prompt on the app.
Quick Pairing

Sonoff 4CH Specifications

General

Model	Sonoff 4CH
Category	Switch
Channels	4
Wi-Fi	IEEE 802.11 b/g/n 2.4GHz
Max Current	10A per channel
Max Power	2200W per channel
Operating Temperature	-10°C to 40°C
Operating Humidity	5%-95% RH, non-condensing
Certification	CE, FCC, RoHS
Input Voltage	100-240V AC 50/60Hz
Control	App
Compatibility	Amazon Alexa, Google Assistant
Enclosure Material	V0
Dimensions	145 x 90 x 40 mm
