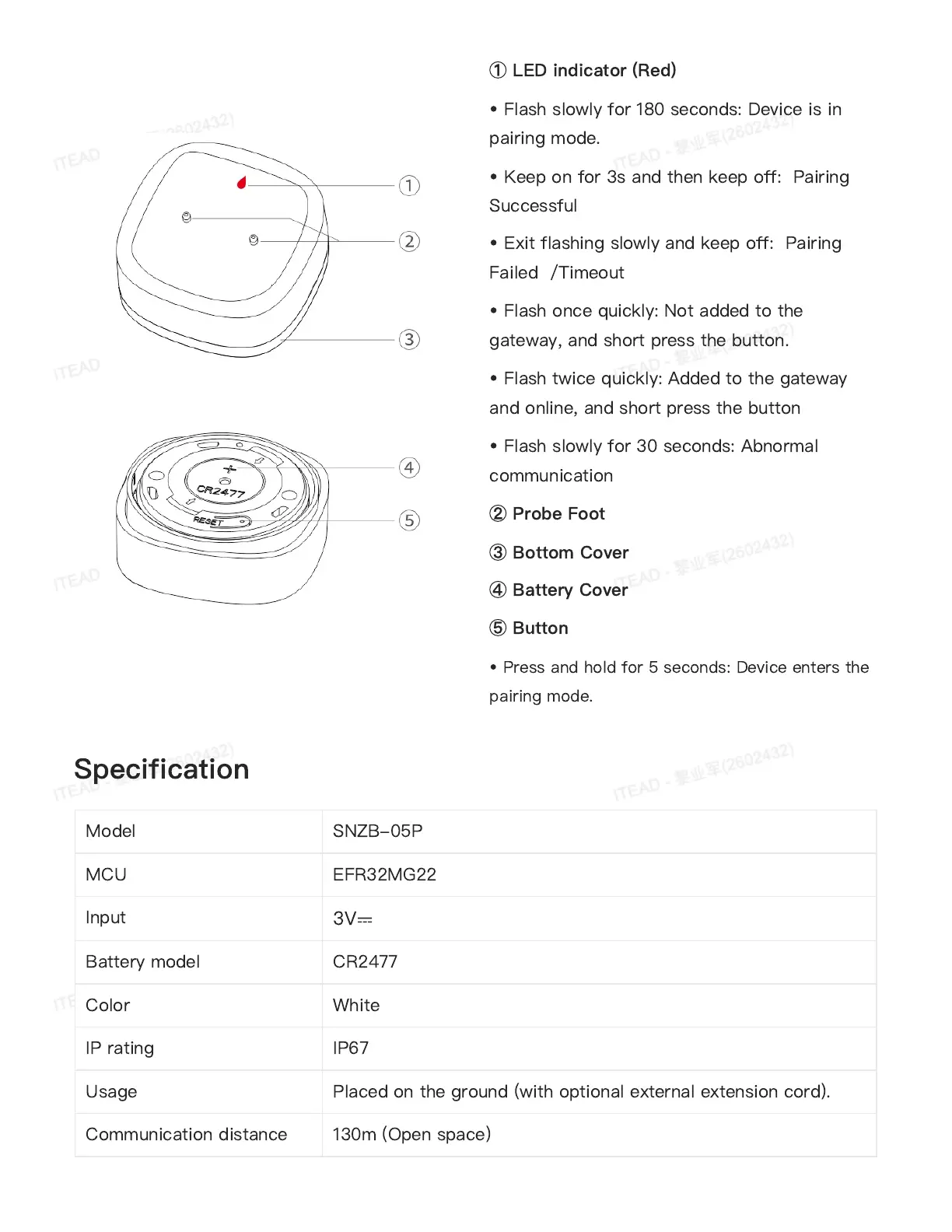

Specification
①
LED indicator (Red)
•
Flash slowly for 180 seconds: Device is in
pairing mode.
•
Keep on for 3s and then keep off: Pairing
Successful
•
Exit flashing slowly and keep off: Pairing
Failed /Timeout
•
Flash once quickly: Not added to the
gateway, and short press the button.
•
Flash twice quickly: Added to the gateway
and online, and short press the button
•
Flash slowly for 30 seconds: Abnormal
communication
②
Probe Foot
③
Bottom Cover
④
Battery Cover
⑤
Button
•
Press and hold for 5 seconds: Device enters the
pairing mode.
Model SNZB-05P
MCU EFR32MG22
Input
3V
⎓
Battery model CR2477
Color White
IP rating IP67
Usage Placed on the ground (with optional external extension cord).
Communication distance 130m (Open space)
