BDV-E190/E290/E490/E690
3
1 A-1797-336-A OVERALL ASSY (Dock for iPod/iPhone: TDM-iP30)
(E290: AEP, SAF, AUS, PX/E490: CND, AEP, UK/
E690: AEP)
2 1-489-949-11 REMOTE COMMANDER (including BATTERY LID)
(RM-ADP072) (CND, PX)
2 1-489-951-11 REMOTE COMMANDER (including BATTERY LID)
(RM-ADP074) (EXCEPT CND, MX6, PX, E32)
2 1-489-952-11 REMOTE COMMANDER (including BATTERY LID)
(RM-ADP073) (MX6, E32)
3 1-754-060-21 ANTENNA (FM) (FM wire antenna (aerial))
(EXCEPT CND, PX)
4 1-756-988-21 BATTERY, MANGANESE (R6)
5 1-835-855-31 CORD WITH CONNECTOR (1.5m) (HDMI CAB
(High Speed HDMI cable)
(SP, MX6, E3, TW, E12, E32, EA, E15)
6 1-838-669-11 CORD, CONNECTION (1.2m) (Video cord)
(CND, AEP, UK, SAF, AUS, PX)
7 1-839-590-11
CORD, CONNECTION (USB5P) (0.5m) (USB cable)
(E290: AEP, SAF, AUS, PX/E490: CND, AEP, UK/
E690: AEP)
8 2-682-469-01 FOOT (SW) (4 pieces) (Foot pads for subwoofer)
(E190)
8 4-417-671-01 FOOT (15 pieces)
(Foot pads for front, center, surround) (E190)
9 4-162-924-11 FOOT (ST) (E490: 12 pieces/E690: 24 pieces)
10 4-400-642-01 COVER, BOTTOM (Speaker-bottom cover)
(E490: 2 pieces/E690: 4 pieces)
11 4-400-644-01 BASE, BOTTOM (E490: 2 pieces/E690: 4 pieces)
12 4-400-643-01
BASE, TOP (E490: 2 pieces/E690: 4 pieces)
13 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
(E490: 12 pieces/E690: 24 pieces)
14 7-682-574-04 SCREW +B 5X8 (Screw: silver)
(E490: 6 pieces/E690: 12 pieces)
15 7-682-973-31 SCREW +PSW 5X14 (Screw: silver)
(E490: 2 pieces/E690: 4 pieces)
16 A-1849-540-A STAND ASSY (Lower parts of the front speakers
(E490: 2 pieces)/ Lower parts of the front and
surround speakers (E690: 4 pieces))
Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : 240 V AC area in E model
E12 : 220-240 V AC area in E model
E15 : Iran model
E32 : 110-240 V AC area in E model
EA : Saudi Arabia model
MX6 : Latin-American model
PX : PX model
SAF : South African model
SP : Singapore model
TW : Taiwan model

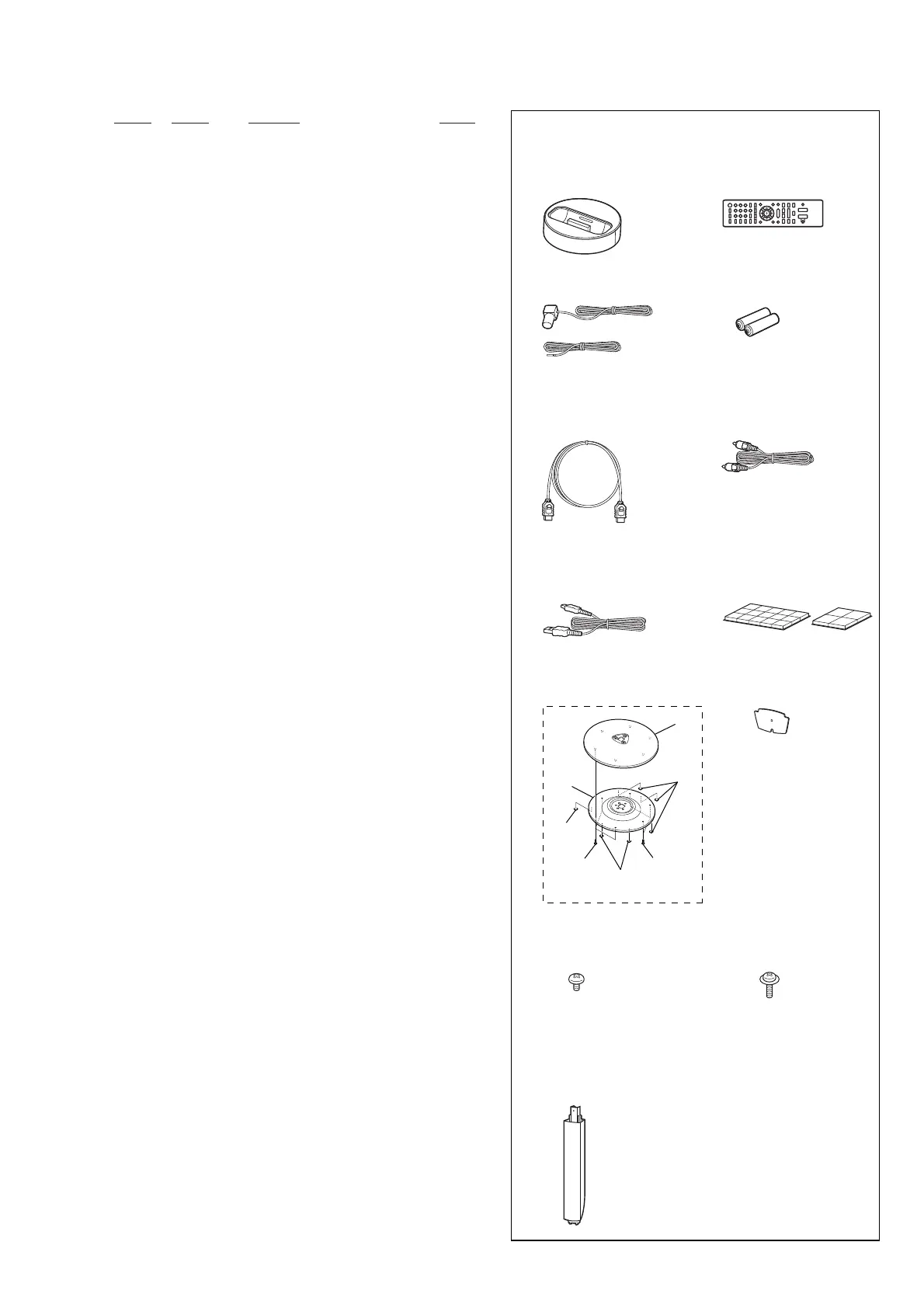

2 Remote commander
(remote) (1)
5 High Speed HDMI cable (1)
(for E190: SP/E290/E490: E12, E3,
SP, CH, TH and TW/E690: E12, E3,
SP and TH only)
4 R6 (size AA) batteries (2)
6 Video cord (1)
(for E190/E290: AEP, AUS and
SAF/E490: AEP/E690: AEP and
AUS only)
Bases
(4: for E490 only)
(8: for E690 only)
9
9
9
12
11
1313
3 FM wire antenna (aerial) (1)
or
1 Dock for iPod/iPhone
(TDM-iP30) (1)
(for E290: AEP, AUS and SAF/
E490: AEP/E690: AEP and
AUS only)
8 Foot pads (2)
7 USB cable (1)
(for E290: AEP, AUS and SAF/
E490: AEP/E690: AEP and AUS
only)
10 Speaker-bottom covers
(2: for E490 only)
(6: for E690 only)
15 Screws (silver)
(2: for E490 only)
(4: for E690 only)
16 Lower parts of the front
speakers
(2: for E490 only)
Lower parts of the front and
surround speakers
(4: for E690 only)
14 Screws (silver)
(6: for E490 only)
(12: for E690 only)
