Sony BDV-E3100 Service Manual

BDV-E2100/E3100/E4100/E6100
3
1 1-491-938-11 REMOTE COMMANDER (including BATTERY LID)
(RM-ADP091) (SP, RU)
1 1-491-939-11 REMOTE COMMANDER (including BATTERY LID)
(RM-ADP089) (US, CND, PX)
1 1-491-940-11 REMOTE COMMANDER (including BATTERY LID)
(RM-ADP090) (AEP, UK, E3, SAF, TW, AUS, EA,
TH, E12, CH)
1 1-491-956-11 REMOTE COMMANDER (including BATTERY LID)
(RM-ADP096) (MX6, E32)
2 1-754-852-11 ANTENNA (FM) (FM wire antenna (aerial))
3 1-835-855-31 CORD WITH CONNECTOR (HDMI CABLE)
(High Speed HDMI cable) (E3, SP, TW, MX6, EA,
TH, E12, E32, CH)
4 4-162-924-11 FOOT (ST) (E4100/E6100: 12 pieces)
5 4-442-654-01 BASE, TOP (E4100/E6100: 2 pieces)
6 4-442-659-01 BASE, BOTTOM (E4100/E6100: 2 pieces)
7 4-443-771-01 COVER, BOTTOM (Speaker-bottom covers)
(E4100: 2 pieces/E6100: 4 pieces)
8 7-682-562-09 SCREW +B 4X10 (Screw: black)
(E4100: 8 pieces/E6100: 16 pieces)
9 7-682-973-31 SCREW +PSW 5X14 (Screw: silver)
(E4100: 2 pieces/E6100: 4 pieces)
10 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
(E4100/E6100: 12 pieces)
11 A-1901-102-A STAND ASSY (Lower parts of the front speakers
(E4100: 2 pieces)/ Lower parts of the front and
surround speakers (E6100: 4 pieces))
Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
E3 : 240 V AC area in E model
E12 : 220 – 240 V AC area in E model
E32 : 110 – 240 V AC area in E model
EA : Saudi Arabia model
MX6 : Latin-American model
PX : PX model
RU : Russian model
SAF : South African model
SP : Singapore model
TH : Thai model
TW : Taiwan model

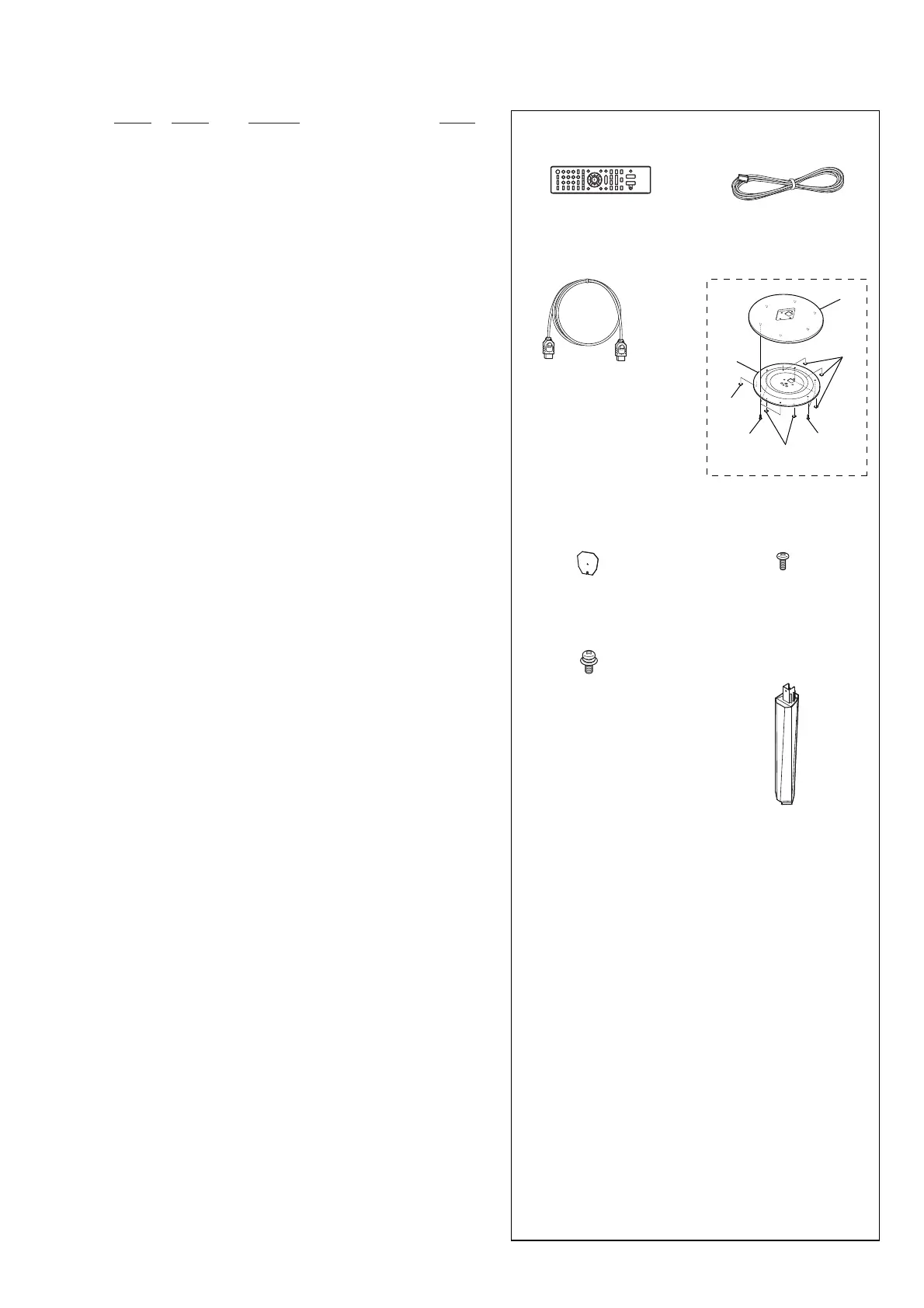

1 Remote commander
(remote) (1)
3 High Speed HDMI cable (1)
(E3, SP, TW, MX6, EA, TH,
E12, E32, CH)
5
4
6
4
4
1010
Bases
(2: E4100)
(4: E6100)
2 FM wire antenna (aerial) (1)
7 Speaker-bottom covers
(2: E4100)
(4: E6100)
9 Screws (silver)
(2: E4100)
(4: E6100)
8 Screws (small) (black)
(8: E4100)
(16: E6100)
11 Lower parts of the front
speakers
(2: E4100)
Lower parts of the front and
surround speakers
(4: E6100)
Ver. 1.1

Sony BDV-E3100 Specifications

General

Karaoke	-
Child lock	Yes
Product color	Black
Supported file systems	exFAT, FAT32, NTFS
Disc types supported	BD, BD-R, BD-R DL, BD-RE, BD-ROM, CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Optical disc player type	Blu-Ray player
Built-in HDD	No
Video compression formats	AVCHD, MPEG1, MPEG2, MPEG4, WMV9, Xvid
Apple docking compatibility	Not supported
Video formats supported	M2TS, M4V, MP4, MPEG1, MPEG2, MPEG4, MTS, WMV9, XVID
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, DTS-HD HR
RMS rated power	1000 W
Audio output channels	5.1 channels
Supported radio bands	AM, FM
Preset stations quantity	20
Front speakers RMS power	250 W
Front speaker woofer diameter (imperial)	2.56 \
Center speaker type	1-way
Subwoofer driver diameter (imperial)	7.09 \
Number of HDMI outputs	1
Power consumption (standby)	0.5 W
Power consumption (typical)	95 W
Package weight	14000 g

Weight and Dimensions

Main unit weight	2700 g
Subwoofer weight	5800 g
Center speaker weight	580 g
Satellite speaker weight	620 g
Main unit dimensions (WxDxH)	430 x 296 x 50.5 mm
Subwoofer dimensions (WxDxH)	255 x 345 x 365 mm
Front speaker dimensions (WxDxH)	90 x 91 x 205 mm
Center speaker dimensions (WxDxH)	240 x 85 x 90 mm
