Getting Started
To connect speaker cords to the unit and surround amplifier
Connect the speaker cords to match the color of the SPEAKERS jacks of the unit and surround
amplifier.
When connecting to the unit and surround amplifier, insert the connector until it clicks.
FRONT R FRONT L CENTER SUBWOOFER
SPEAKERS
L
R
3-16
IMPEDANCE USE
SPEAKERS
Green
(Center speaker)
Purple
(Subwoofer)
White
(Front left
speaker (L))
Red
(Front right
speaker (R))
Gray
(Surround right
speaker (R))
Blue
(Surround left
speaker (L))

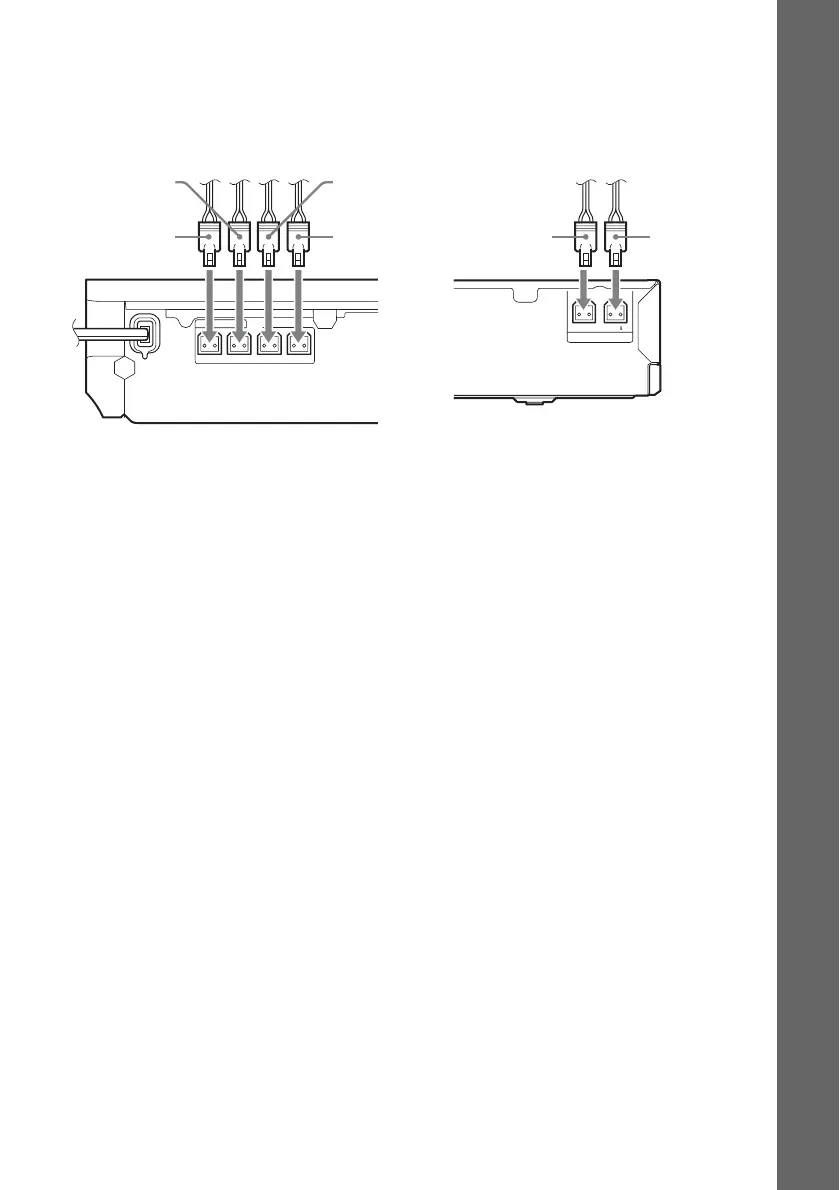

Rear panel of the unit
Rear panel of the surround amplifier
