Sony BDV-N5200W Service Manual

BDV-N5200W/N7200W/N7200WL/N9200W/N9200WL
3

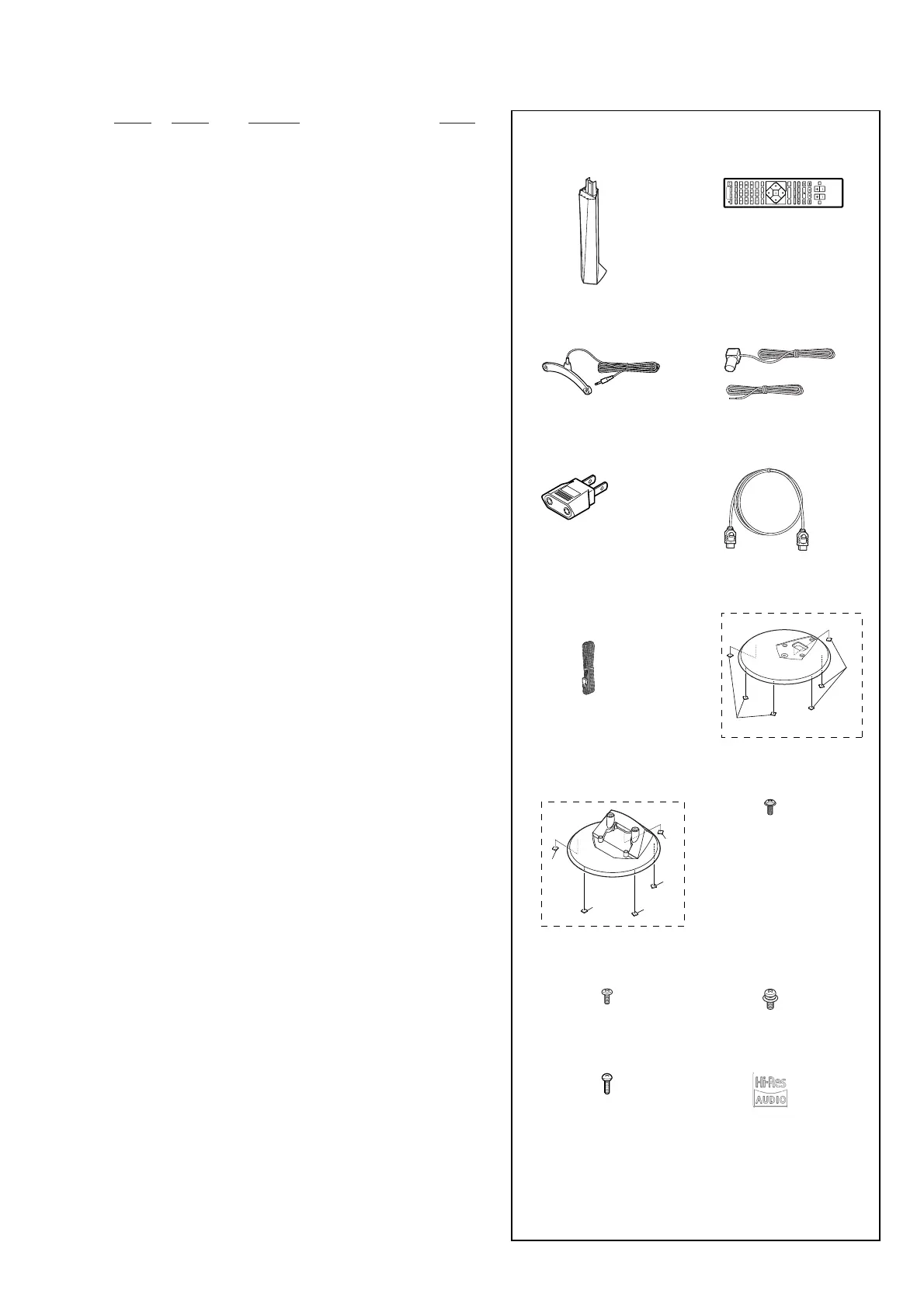

Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
E3 : 240 V AC area in E model
E12 : 220-240 V AC area in E model
E32 : 110-240 V AC area in E model
EA : Saudi Arabia model
MX : Mexican model
MX6 : Latin-American model
PX : PX model
RU : Russian model
SP : Singapore model
TH : Thai model
TW : Taiwan model
• Color variations
BDV-N5200W/N7200W/N9200W : Black
BDV-N7200WL/N9200WL : White
1 A-1976-261-A STAND ASSY (TB) (Stands) (1 piece) (N9200W)
1 A-1976-923-A STAND ASSY (TB) (Stands) (1 piece) (N9200WL)
2 1-492-776-11 REMOTE COMMANDER (RM-ADP120W)
(Remote control) (N7200WL/N9200WL: EXCEPT
MX6)
2 1-492-777-11 REMOTE COMMANDER (RM-ADP120)
(Remote control) (N5200W: AEP, UK, SP/N7200W:
AEP, UK, E12/N9200W: EXCEPT CND, MX6)
2 1-492-778-11 REMOTE COMMANDER (RM-ADP118W)
(Remote control) (N9200WL: MX6)
2 1-492-779-11 REMOTE COMMANDER (RM-ADP118)
(Remote control) (N5200W: MX/N7200W: E32/
N9200W: MX6)
2 1-492-780-11 REMOTE COMMANDER (RM-ADP117)
(Remote control) (US, PX, CND)
3 1-542-903-11 MEASUREMENT MIC (STEREO) (Calibration mic)
(N7200W/N7200WL/N9200W/N9200WL)
4 1-754-060-21 ANTENNA (FM) (FM wire antenna (aerial))
(EXCEPT US, PX, CND)
4 1-754-848-11 ANTENNA ISOLATOR (CH)
4 1-793-184-41 CONNECTOR (F TYPE ADAPTOR)
(FM wire antenna (aerial)) (US, PX, CND)
5 1-785-504-21 ADAPTOR, CONVERSION (PX, E32, MX6)
6 1-835-855-31 CORD WITH CONNECTOR (HDMI CABLE)
(MX, SP, E12, E32, E3, EA, TH, CH, MX6, TW)
7 1-846-401-41 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (1, green))
(N7200WL/N9200WL)
7 1-846-401-51 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N9200W)
7 1-846-401-61 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N7200W)
8 A-1976-265-B BASE ASSY (TB)
(Lower parts of the front and surround speakers)
(1 piece) (N9200W)
8 A-1976-924-B BASE ASSY (TB) (1 piece) (N9200WL)
9 4-488-333-01 FOOT (1 piece) (N9200W/N9200WL)
10 A-1979-287-A BASE (SAT) ASSY (W) (1 piece) (N7200WL)
10 4-480-329-01 STAND, BASE (1 piece) (N7200W)
11 2-893-646-01 FOOT (1 piece) (N7200W/N7200WL)
12 4-533-400-11 SCREW +B 4X10 (WASHER) (1 piece)
(N9200W/N9200WL)
13 7-682-562-09 SCREW +B 4X10 (1 piece) (N7200W/N7200WL)
14 7-682-973-31 SCREW +PSW 5X14 (1 piece)
(N9200W/N9200WL)
15 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3 (1 piece)
(N9200W/N9200WL)
16 4-477-465-31 HI-RES LABEL
(N7200W/N7200WL/N9200W/N9200WL)
2 Remote commander
(remote) (1)
3 Calibration mic (1)
(N7200W/N7200WL/N9200W/
N9200WL )
6 High Speed HDMI cable (1)
(MX, SP, E12, E32, E3, EA,
TH, CH, MX6, TW)
5 Adaptor Conversion
(PX, E32, MX6)
4 FM wire antenna (aerial) (1)
or
1 Lower parts of the front and surround
speakers (4)
(4: N9200W/N9200WL)
12 Screws (small)
(12: N9200W/N9200WL)
7 Speaker cords
(N7200WL/N9200WL: 1, green)
(N7200W/N9200W: 5, red/white/
gray/blue/green)
14 Screws (large)
(4: N9200W/N9200WL)
15 Screws
(7: N9200W/N9200WL)
16 Hi-Res Label
13 Screws
(8: N7200W/N7200WL)
9
9
8 Bases
(6: N9200W/N9200WL)
10 Stands (for front and surround
speakers
(5: N7200W/N7200WL)
11
11
11
11
11
Ver. 1.1

Sony BDV-N5200W Specifications

General

BD-Live	Yes
Karaoke	-
Product color	Black
Supported file systems	FAT32, NTFS
Disc types supported	BD, BD-R, BD-RE, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	Blu-Ray audio, Blu-Ray video, CD audio, CD video
Optical disc player type	Blu-Ray player
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic, Dolby TrueHD, DSD, DTS, DTS 96/24, DTS-ES, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD HR
RMS rated power	- W
Audio output channels	7.1 channels
Supported radio bands	AM, FM
Preset stations quantity	20
HDMI in	2
USB version	2.0
Number of HDMI outputs	1
