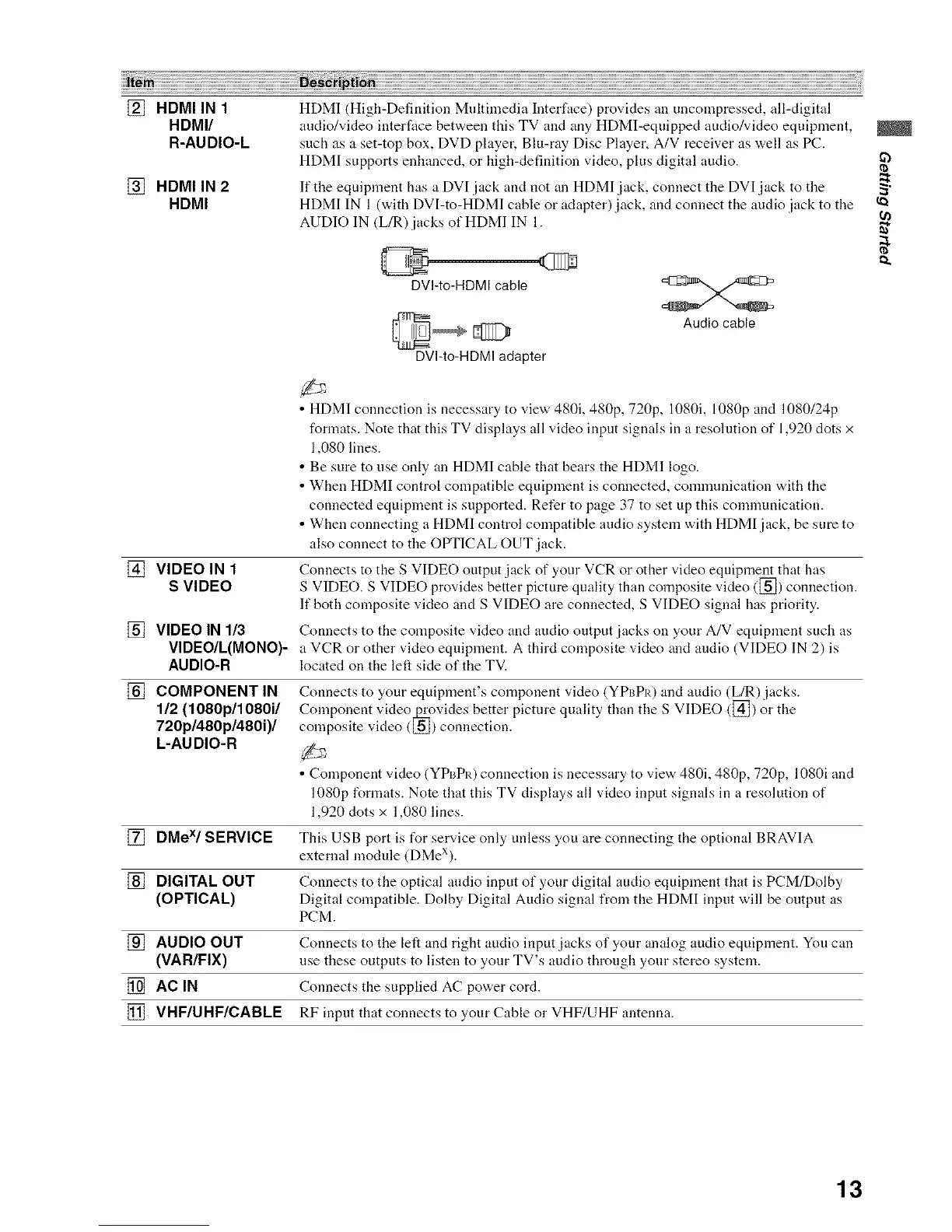

Sony BRAVIA KDL-40V3000 User Manual

[] HDMI IN 1
HDMI/
R-AUDIO-L
[] HDMI IN 2
HDMI
HDMI (High-Definition Mnltimedia Interface) provides an uncompressed, all-digital
audio/video interface between this TV and any HDMI-equipped audio/video equipment,
such as a set-top box, DVD player, Blu-ray Disc Player, A/V receiver as well as PC.
HDMI supports enhanced, or high-definition video, plus digital audio.
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the
HDMI IN 1(with DVI-to-HDMI cable or adapter) jack, and connect the audio jack to the
AUDIO IN (L/R) jacks of HDMI IN 1.
DVI-to-HDMI cable
[] VIDEO IN 1
S VIDEO
[] VIDEO IN 113
VIDEO/L(MONO)-
AUDIO-R
[] COMPONENT IN
112 ( 1080p/1080i/
720p1480p1480i)l
L-AUDIO-R
@_ Audio cable
O
DVl-to-HDMI adapter
• HDMI connection is necessary to view 480i, 480p, 720p, 1080i, 1080p and 1080/24p
formats. Note that this TV displays all video input signals in a resolution of 1,920 dots x
1,080 lines.
• Be sure to nse only an HDMI cable that bears the HDMI logo.
• When HDMI control compatible equipment is connected, conmmnication with the
connected equipment is supported. Refer to page 37 to set up this connnunication.
• When connecting a HDMI control compatible audio system with HDMI jack, be sure to
also connect to the OPTICAL OUT jack.
Connects to the S VIDEO output jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than composite video ([]) connection.
If both composite video and S VIDEO are connected, S VIDEO signal has priority.
Connects to the composite video and audio output jacks on your A/V equipment such as
a VCR or other video equipment. A third composite video and audio (VIDEO IN 2) is
located on the left side of the TV.
Connects to your equipment's component video (YPBPR) and audio (L/R)jacks.
Component video_ovides better picture quality than the S VIDEO ([]) or the
composite video (1__) connection.
• Component video (YPBPI0 connection is necessary to view 480i, 480p, 720p, 1080i and
1080p formats. Note that this TV displays all video input signals in a resolution of
1,920 dots x 1,080 lines.
[] DMeX/SERVICE This USB port is for service only unless you are connecting the optional BRAVIA
external module (DMeX).
[] DIGITAL OUT Connects to the optical andio input of your digital audio equipment that is PCM/Dolby
(OPTICAL) Digital compatible. Dolby Digital Audio signal from the HDMI inpnt will be output as
PCM.
[] AUDIO OUT Connects to the left and right audio input jacks of your analog audio equipment. You can
(VAR/FIX) use these outpnts to listen to your TV's audio through your stereo system.
[] AC IN Connects the supplied AC power cord.
[] VNF/UNF/CABLE RF input that connects to your Cable or VHF/UHF antenna.
g.
13

Sony BRAVIA KDL-40V3000 Specifications

Power

power consumption in operation	260 W
power consumption in standby	Less than 0.4 W
energy star compliant	Yes

Display

screen size	40 inches
aspect ratio	16:9
display resolution	1920 x 1080p

Inputs and Outputs

analog audio input(s)	5 (1 Side /4 Rear)
audio out (variable/fixed)	1 (Rear)
component video (Y/Pb/Pr ) input(s)	2 (Rear)

Weight and Dimensions

weight with pedestal	25.0 kg
dimensions with pedestal	992 x 688 x 265 mm
dimensions without pedestal	992 x 643 x 122 mm
