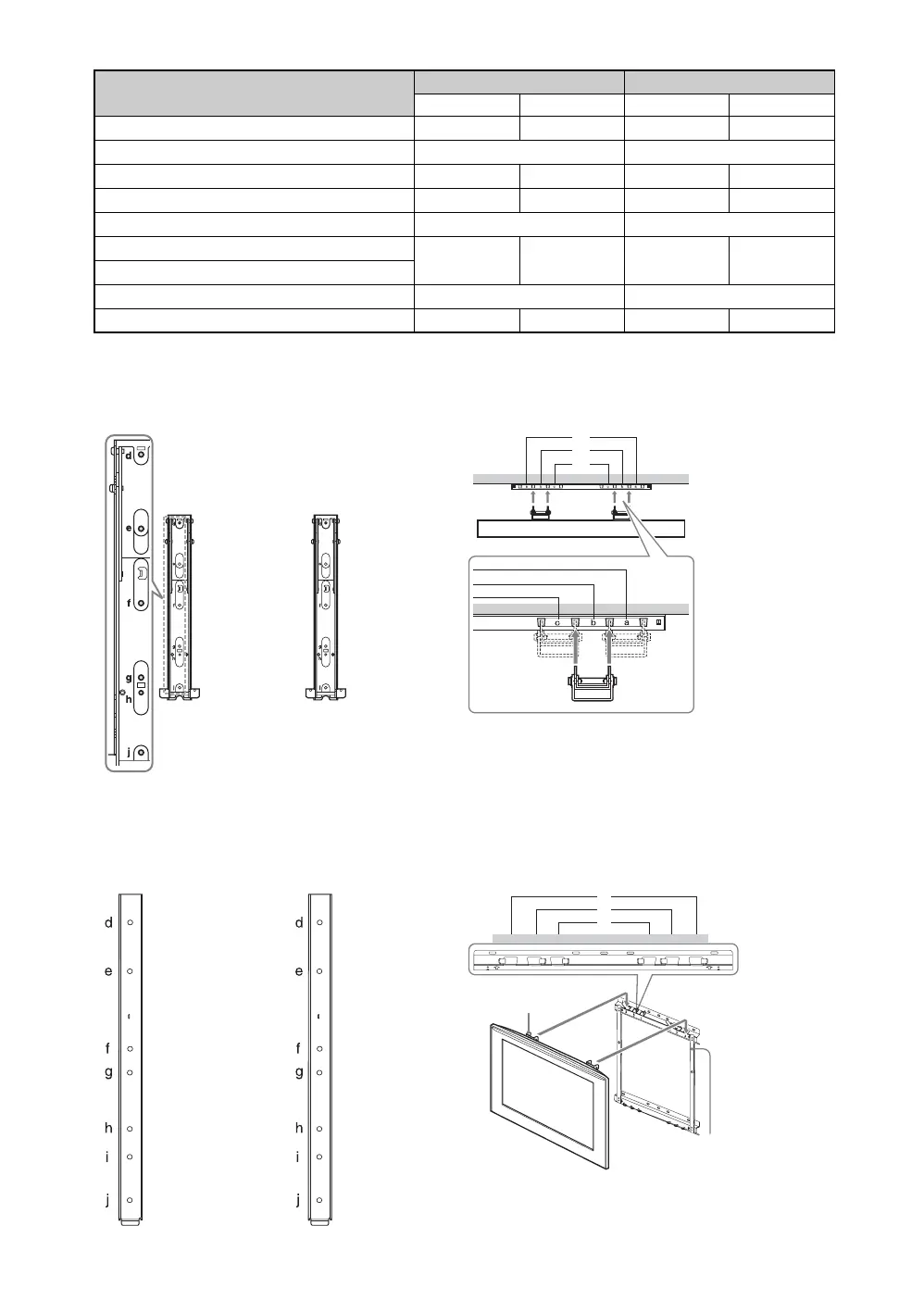

Screw and Hook locations diagram/table
SU-WL500
SU-WL50B
Model Name
KDL-
Screw location Hook location
SU-WL500 SU-WL50B SU-WL500 SU-WL50B
60NX815/60NX810 d, g – a –
60NX800 e, j a
55NX815/55NX810 e, j – b –
52NX800 – e, j – b
46NX710 e, j b
46NX700
–e, j– b
40NX800
40NX710 e, j b
40NX700 – e, j – b
Screw location
When installing the Mounting Hook on the TV.
Hook location
When installing the TV onto the Base Bracket.
b
a
c*
* Hook location “c” cannot be
used for the models.
a
b
c
c
b
a
Screw location
When installing the Mounting Hook on the TV.
Hook location
When installing the TV onto the Base Bracket.
b
a
c*
Base Bracket
Mounting Hook
* Hook location “c” cannot be used
for the models.
