KD-65A8 / 65A89 / 65A87 / 65A85 / 55A8 / 55A89 / 55A87 / 55A85
5-014-780-11(1)
6
GB

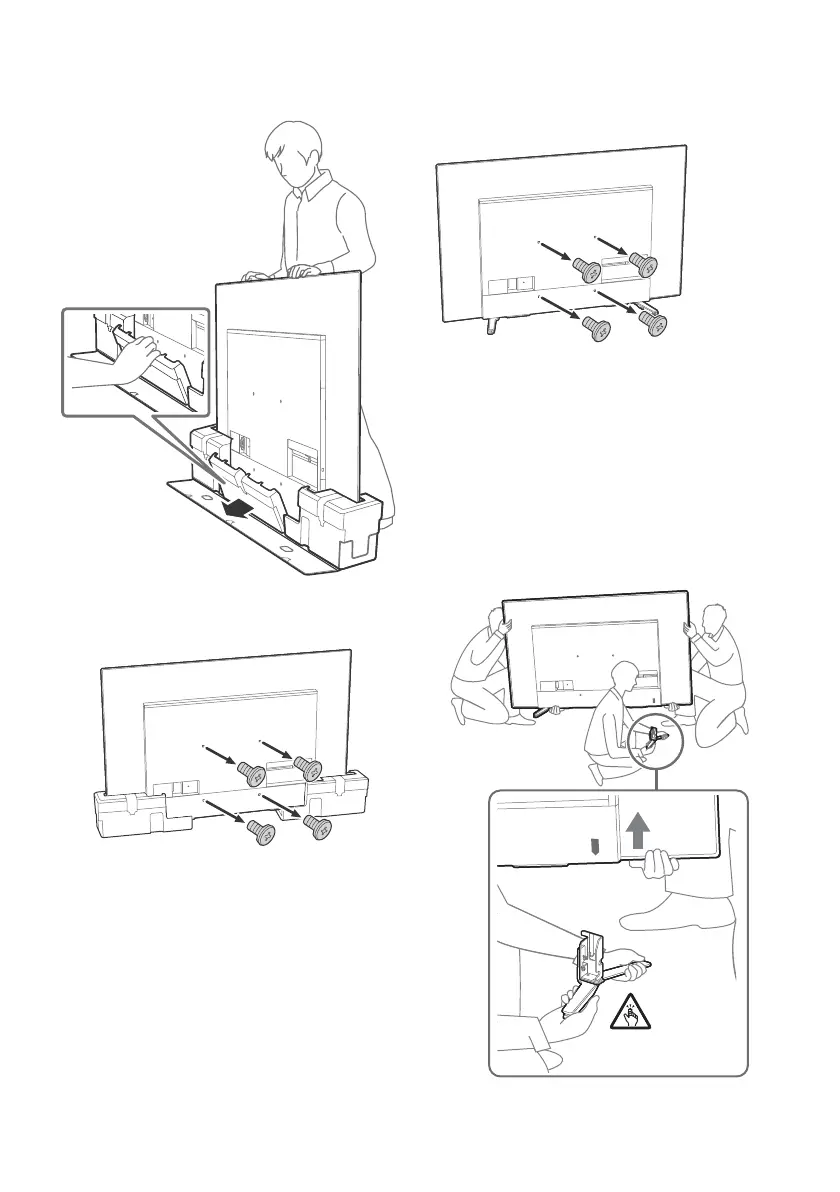

Installing the TV to the Wall from Carton
1 Remove the centre cushion.
2 Remove the screws from the rear of the
TV.
Note
• Be sure to store the removed screws and reuse
when attaching the Wall-Mount Bracket to the TV
set (SU-WL850 only). Keep the screws away from
small children.
Installing the TV to the Wall from Table-Top
Stand
Remove the screws from the rear of the TV.
Note
• Be sure to store the removed screws and reuse when
attaching the Wall-Mount Bracket to the TV set
(SU-WL850 only). Keep the screws away from small
children.
Detaching the Table-Top Stand from the TV
1 Remove one side of the Table-Top Stand
at a time. Firmly hold the Table-Top
Stand securely with both hands while
the other people lift up the TV.
To Next Page
