– 60 –
Sony Corporation
Personal & Mobile Communication Company
9-926-441-11
CDX-C4750/C6600
99A047038-1
Printed in Singapore C1999. 1
Published by Quality Assurance Dept.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SERVO SUB
< CERMET RESISTOR >
RV1 1-238-091-11 RES, ADJ, CERMET 22K
RV4 1-238-091-11 RES, ADJ, CERMET 22K
*************************************************************
* 1-659-834-11 SUB BOARD
**********
< CONNECTOR >
CN1 1-770-347-21 CONNECTOR, FPC 6P
*************************************************************
MISCELLANEOUS
***************
11 1-776-207-82 CORD (WITH CONNECTOR) (POWER)
207 1-659-880-11 MOTOR FLEXIBLE BOARD
! 210 8-820-010-06 PICK-UP, OPTICAL KSS-521A/K1RP
212 1-659-881-11 PICK-UP FLEXIBLE BOARD
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M901 X-3371-664-2 MOTOR ASSY (SPINDLE)
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
M903 A-3291-676-A MOTOR SUB ASSY, LOADING (LOADING)
*************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
3-865-686-11 MANUAL, INSTRUCTION (ENGLISH) (C4750)
3-865-687-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH)
(C4750)
3-865-921-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH,
CHINESE) (C6600)
3-865-922-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH,CHINESE) (C6600)
X-3374-810-1 CASE ASSY
*************************************************************
**************
HARDWARE LIST
**************
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-621-772-10 SCREW +B 2X4
#4 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
#5 7-627-850-28 SCREW, PRECISION +P 1.4X3
#6 7-627-000-00 SCREW, PRECISION +P 1.7X2.2 TYPE3
#7 7-628-253-00 SCREW +PS 2X4
#8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#9 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3
#10 7-685-795-09 SCREW +PTT 2.6X12 (S)
*************************************************************

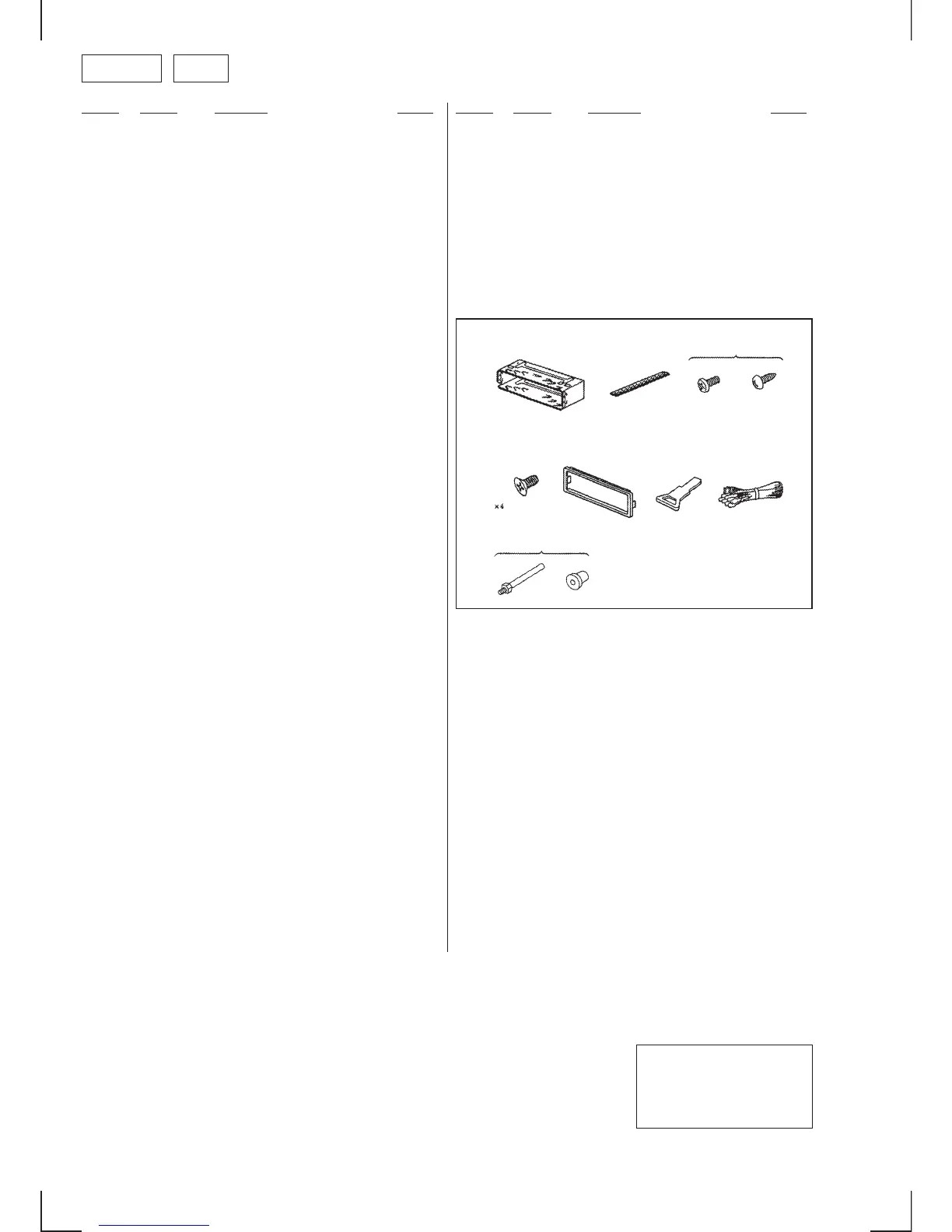

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
251 3-014-370-31 FRAME, FITTING
252 3-916-012-01 BRACKET (ND), FITTING ASSIST (C4750)
253 X-3368-725-1 SCREW ASSY, FITTING (C4750)
254 3-934-325-01 SCREW (+K 5X8 TP)
255 X-3374-806-1 COLLAR ASSY
256 3-388-078-01 KEY
257 1-776-207-82 CORD (WITH CONNECTOR) (POWER)
258 X-3366-405-1 SCREW ASSY (EXP), FITTING (C6600)
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
252251
254 255
253
256 257
258
