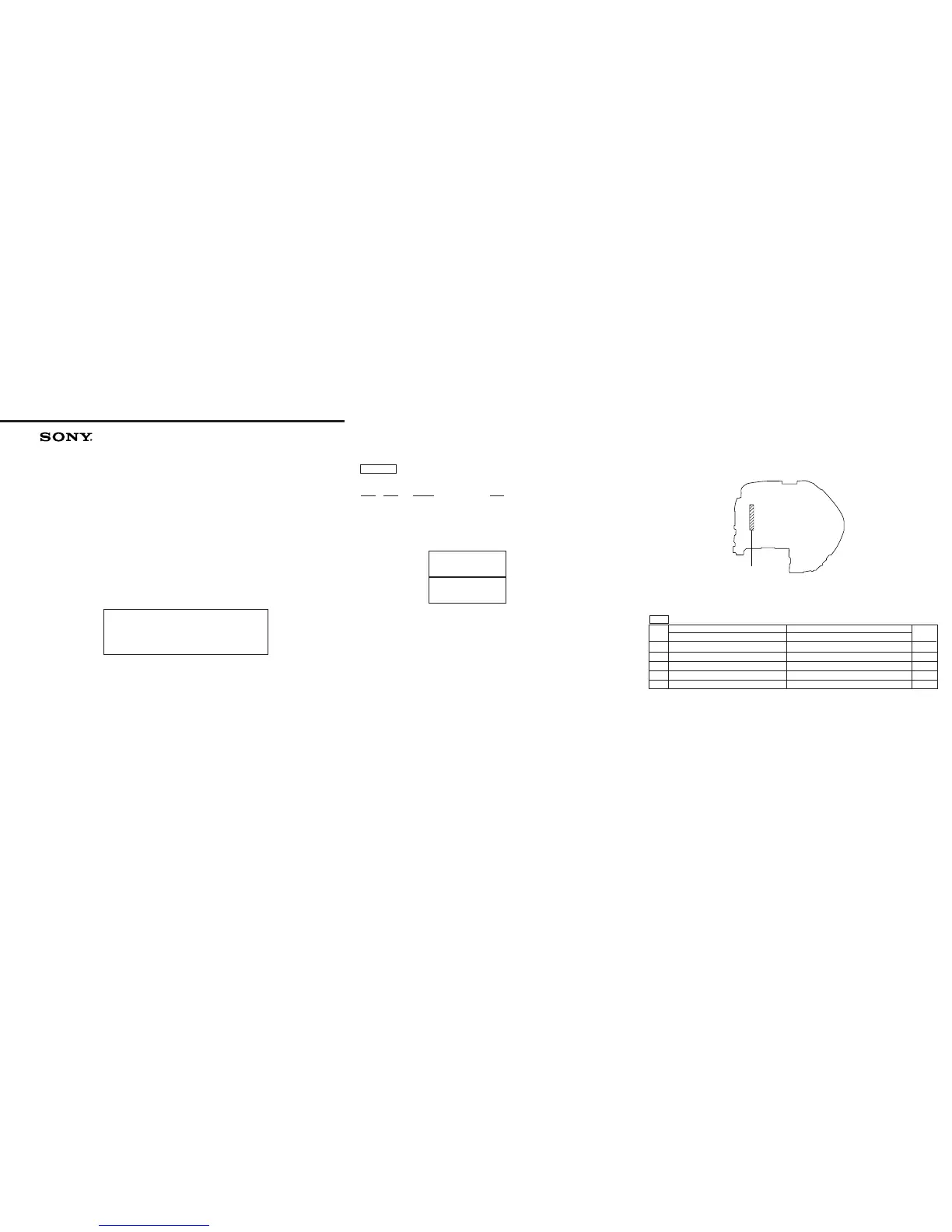

D-E300AN/E301/E305/
E307CK/E307CKT
SERVICE MANUAL
SUPPLEMENT - 2
File this Supplement with the Service Manual.
Subject :
r
MODEL ADDITION (D-E305 : Tourist model)
(Refer to original service manual (9-923-150-11) and
supplement-1 (9-923-150-82) previously issued for
the other information.)
r
CHANGE OF MAIN BOARD
(ECN-CD750822)
9-923-150-83
Sony Corporation
Personal A&V Products Company
97K0291-1
Printed in Japan © 1997.11
Published by Quality Engineering Dept.
(Shibaura)
US Model
D-E300AN/E301/E305/E307CK/E307CKT
Canadian Model
D-E300AN/E301/E307CK
AEP Model
UK Model
D-E300AN/E301/E305/E307CK
Australian Model
E Model
Chinese Model
D-E301/E305/E307CK
Tourist Model
D-E305
Page 33 – 34
Ref. No. Part No. Description Remark
• Abbreviation
JEW : Tourist
! 1-467-550-11 ADAPTOR, AC (AC-E455A) (E33, JEW)
1-528-541-11 BATTERY PACK (BP-DM10) (JEW)
! 1-569-007-11 ADAPTOR, CONVERSION 2P (E33,JEW)
3-861-668-01 MANUAL, INSTRUCTION (JEW) (JAPANESE)
3-861-668-11 MANUAL, INSTRUCTION (JEW) (CHINESE)
3-861-668-21 MANUAL, INSTRUCTION (JEW) (ENGLISH)
3-861-668-31 MANUAL, INSTRUCTION (JEW) (KOREAN)
r
CHANGE OF MAIN BOARD
The main board have been changed.
Printed wiring board and schematic diagram of new type, and changed parts list are described in this Supplement-2.
Refer to original service manual (9-923-150-11) and supplement-1 (9-923-150-82) previously issued for the other information.
NEW TYPE IDENTIFICATION
[MAIN BOARD] (Side B)
1-663-252- 15
Ref. No. Part No. Description Part No. Description Remark
Former Type New Type
C309 1-126-783-11 ELECT 22uF 20% 16V 1-126-794-11 ELECT 4.7uF 20% 50V Changed
C570 1-164-360-11 CERAMIC CHIP 0.1uF 16V ––––––––––––––– Deleted
C715 ––––––––––––––– 1-164-346-11 CERAMIC CHIP 1uF 16V Added
Q509 ––––––––––––––– 8-729-028-97 TRANSISTOR DTC114TUA-T106 Added
R548 ––––––––––––––– 1-216-845-11 METAL CHIP 100K 5% 1/16W Added
MAIN
(Service Manual see page 30 to 31)
r
MODEL ADDITION
Tourist model has been added for D-E305.
D-E305 (Tourist model) is approximately same as the D-E305 (E33 model).
Consequently, only difference between Tourist model and E33 model are listed.
r
DIFFERENCE PARTS LIST
ACCESSORIES & PACKING MATERIALS
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
Les composants identifiés par une
marque !sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
r
CHANGE OF ELECTRICAL PARTS LIST
