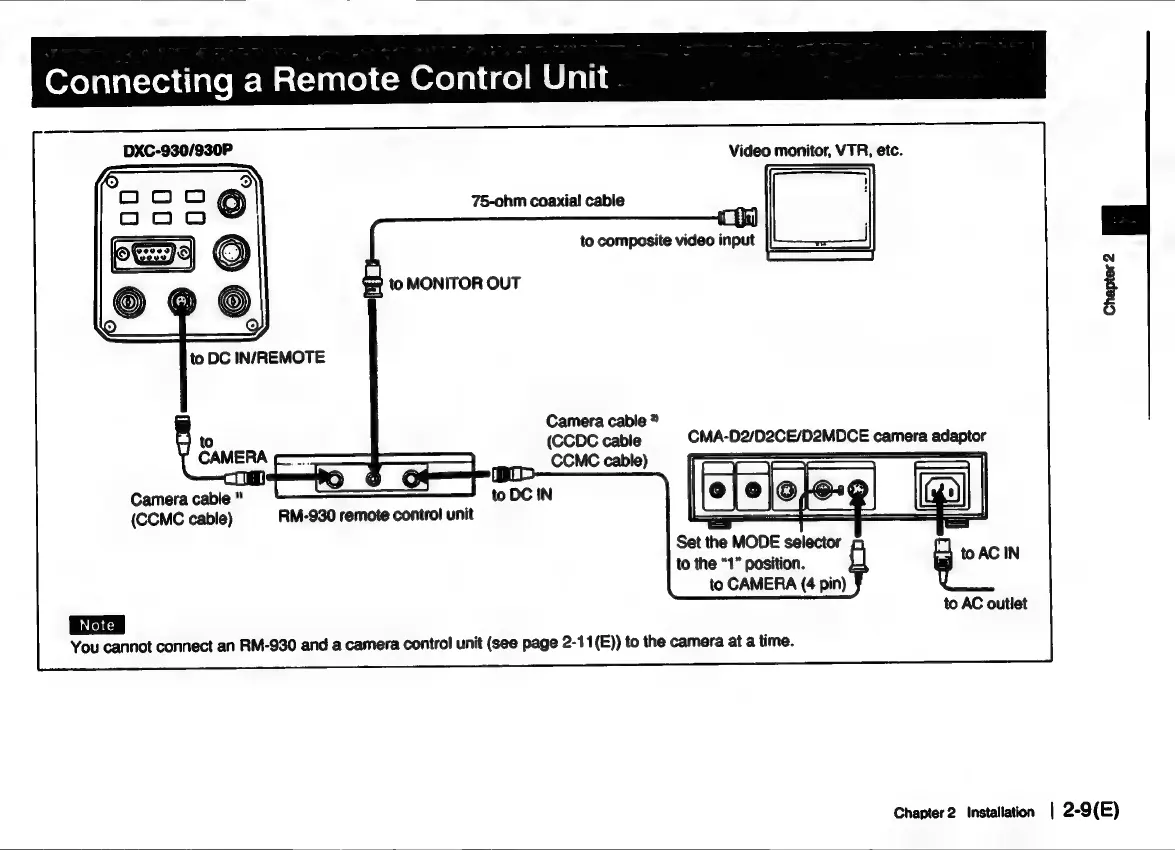

DXC-930/930P Video monitor, VTR, etc.
75-ohm coaxial cable
to composite video input
to MONITOR OUT
Chapter 2
Camera cable ?
(CCDC cable CMA-D2/D2CE/D2MDCE camera adaptor
Camera cable "
(CCMC
cable)
RM-930
remote
control
unit
Set the MODE selector
to the “1” position.
to CAMERA (4 pin)
to AC outlet
You
cannot
connect
an
RM-930
and
a
camera
control
unit
(see
page
2-11(E))
to
the
camera
at
a
time.
Chapter 2 Installation | 2-9(E)
