Sony DSC-TX20 - Page 34

DSC-TX20_L2
2-6

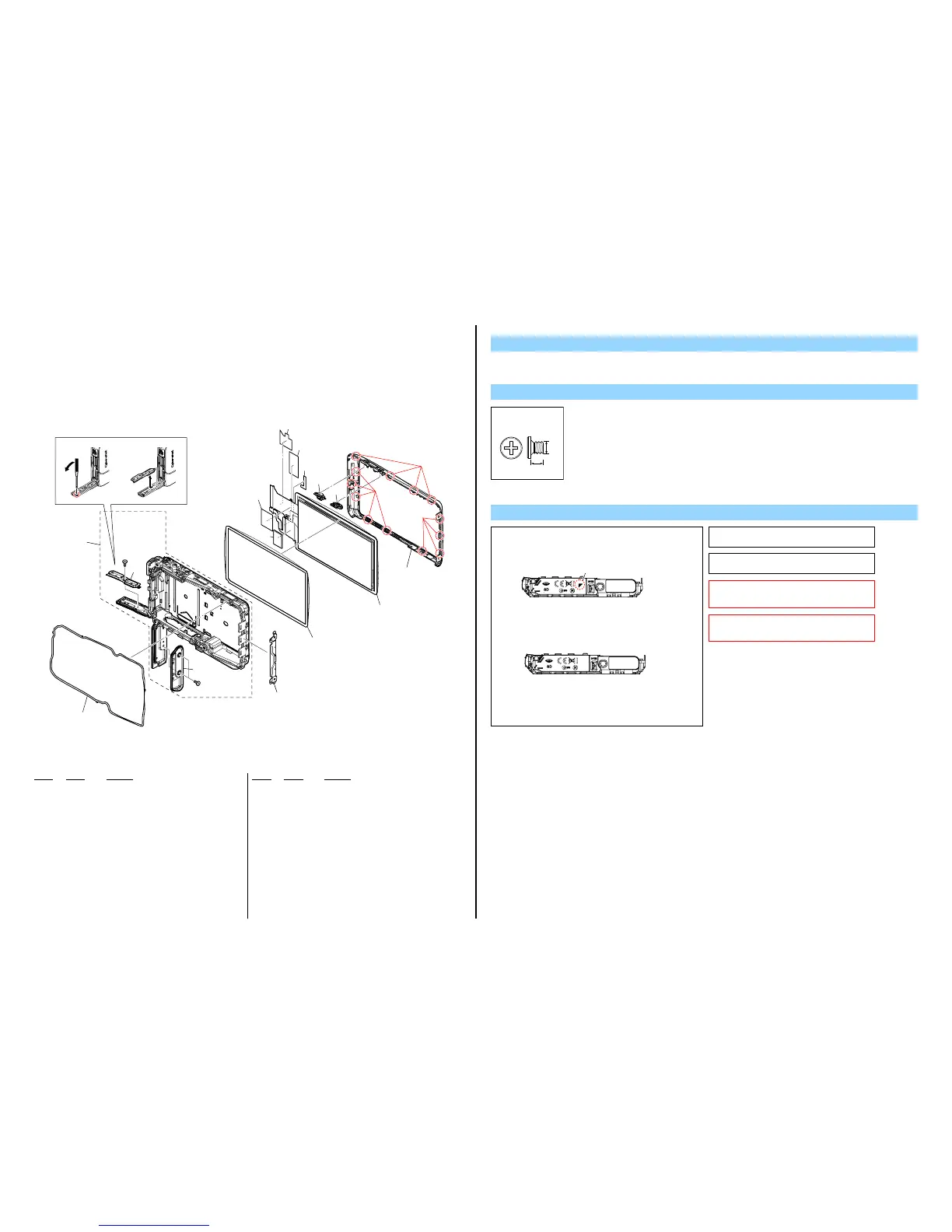

2-1-4. REAR SECTION
ns: not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
151 4-274-390-01 CABINET, PACKING
152 (Note 1) REAR ASSY (220)
153 4-275-742-01 PACKING, BTL
154 4-275-751-01 PACKING, ML
155 4-275-728-11 SHEET (TP), ADHESIVE
156 4-281-607-11 SHEET (TP), REINFORCEMENT
157 4-275-786-11 SHEET (LCD), PROTECTION
158 4-430-838-01 SHEET (LCD-H), PROTECTION
159 4-281-683-11 SHEET (TM), FLEXIBLE PROTECTION
160 4-421-251-01 REC (220), BUTTON (BLACK)
160 4-421-251-11 REC (220), BUTTON (PINK)
160 4-421-251-21 REC (220), BUTTON (BLUE)
160 4-421-251-31 REC (220), BUTTON (GREEN, ORANGE)
161 4-421-252-01 PLAYBACK (220), BUTTON (BLACK)
161 4-421-252-11 PLAYBACK (220), BUTTON (PINK)
161 4-421-252-21 PLAYBACK (220), BUTTON (BLUE)
161 4-421-252-31 PLAYBACK (220), BUTTON (GREEN, ORANGE)
162 4-421-246-01 ORNAMENTAL (220), (REAR) (BLACK) (Note 2)
162 4-421-246-11 ORNAMENTAL (220), (REAR) (PINK) (Note 2)
162 4-421-246-21 ORNAMENTAL (220), (REAR) (BLUE) (Note 2)
162 4-421-246-31 ORNAMENTAL (220), (REAR) (GREEN, ORANGE)
(Note 2)
163 4-429-097-01 SHEET (LCD-B), PROTECTION
LCD901 A-1880-765-A DISPLAY MODULE (MD5E-WBSNG)
#225 4-178-987-11 SCREW (M1.4), (FLAT) PRECISION (Note 3)
1. Remove to numerical order (1to 2) in the left figure.
DISASSEMBLY
151
152
(Note 1)
154
153
157
155
158
159
163
160
161
156
#225
(Note 3)
#225
(Note 3)
ns
1
(Claws)
1
(Claws)
1
(Claws)
1 162
(Note 2)
2 LCD901
Screw
Note
Note 2: When installed cabinet (rear) ornamental,
confirm the space has not become interspace.
Note 2:
 Cabinet (rear) ornamental を取り付け後、
隙間が無いことを確認してください。
Note 1:
When replacing this part, be careful whether a LOGO is
existed or not.
TransferJetのロゴ
TransferJet logo
឵ᤨߦࡠࠧߩ᦭ήߦᵈᗧߒߡߊߛߐ޿ޕ
X-2584-037-1
X-2584-038-1
X-2584-039-1
X-2584-040-1
X-2584-041-1
REAR ASSY (220) (BLACK) (EXCEPT US,UK,CH,J) (BLACK)
REAR ASSY (220) (RED) (EXCEPT US, CH, J) (PINK)
REAR ASSY (220) (BLUE) (EXCEPT US,UK,CH,J) (BLUE)
REAR ASSY (220) (GREEN) (EXCEPT US, CH) (GREEN)
REAR ASSY (220) (ORANGE) (EXCEPT US, UK, CH) (ORANGE)
X-2584-042-1
X-2584-043-1
X-2584-044-1
X-2584-045-1
X-2584-046-1
REAR ASSY (J) (220) (BLACK) (US, UK, CH, J) (BLACK)
REAR ASSY (J) (220) (RED) (US, CH, J) (PINK)
REAR ASSY (J) (220) (BLUE) (US, UK, CH, J) (BLUE)
REAR ASSY (J) (220) (GREEN) (US, CH) (GREEN)
REAR ASSY (J) (220) (ORANGE) (US, UK, CH) (ORANGE)
Jet Model
Non Jet Model
1.41.4
1.4
#225: M1.4 X 1.4
(Silver)
4-178-987-11
Note 3: This screw cannot be re-used.
Discard the screw removed once in servicing.
Instead, use a new screw.
Note 3:
 このねじは再利用することができません。
 サービス対応時に一度でも外した場合は新品
のねじと交換してください。
