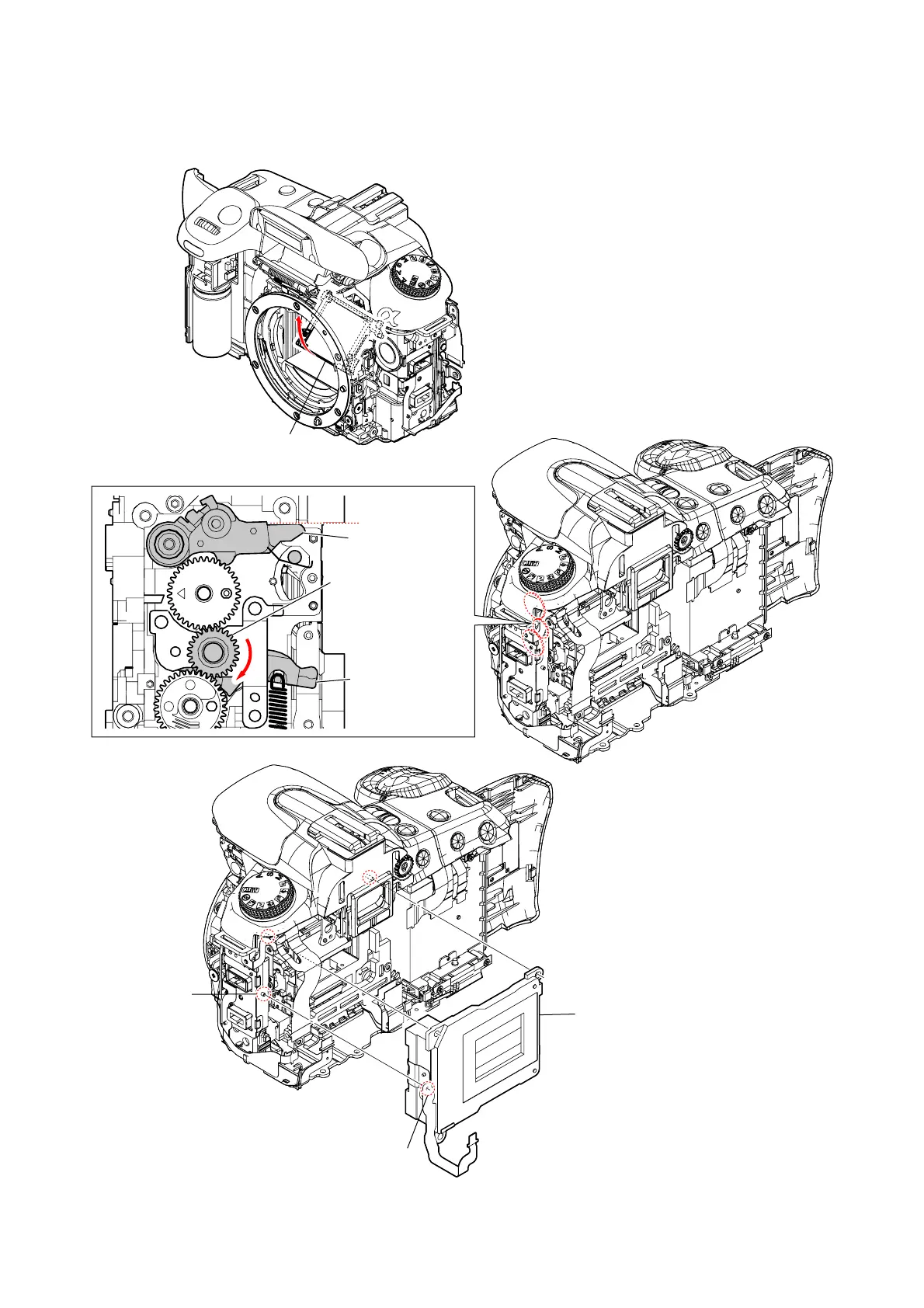

2-4. SHUTTER INSTALLATION
Follow the assembly in the numerical order given.
2 Rotate Idle Gear
Don't damage
Idle Gear.
1 Raise Main Mirror up.
3 Shutter
4 Shutter Flexible Board
Boss
Shutter Charge
Lever Down
Mirror Charge
Lever Up
