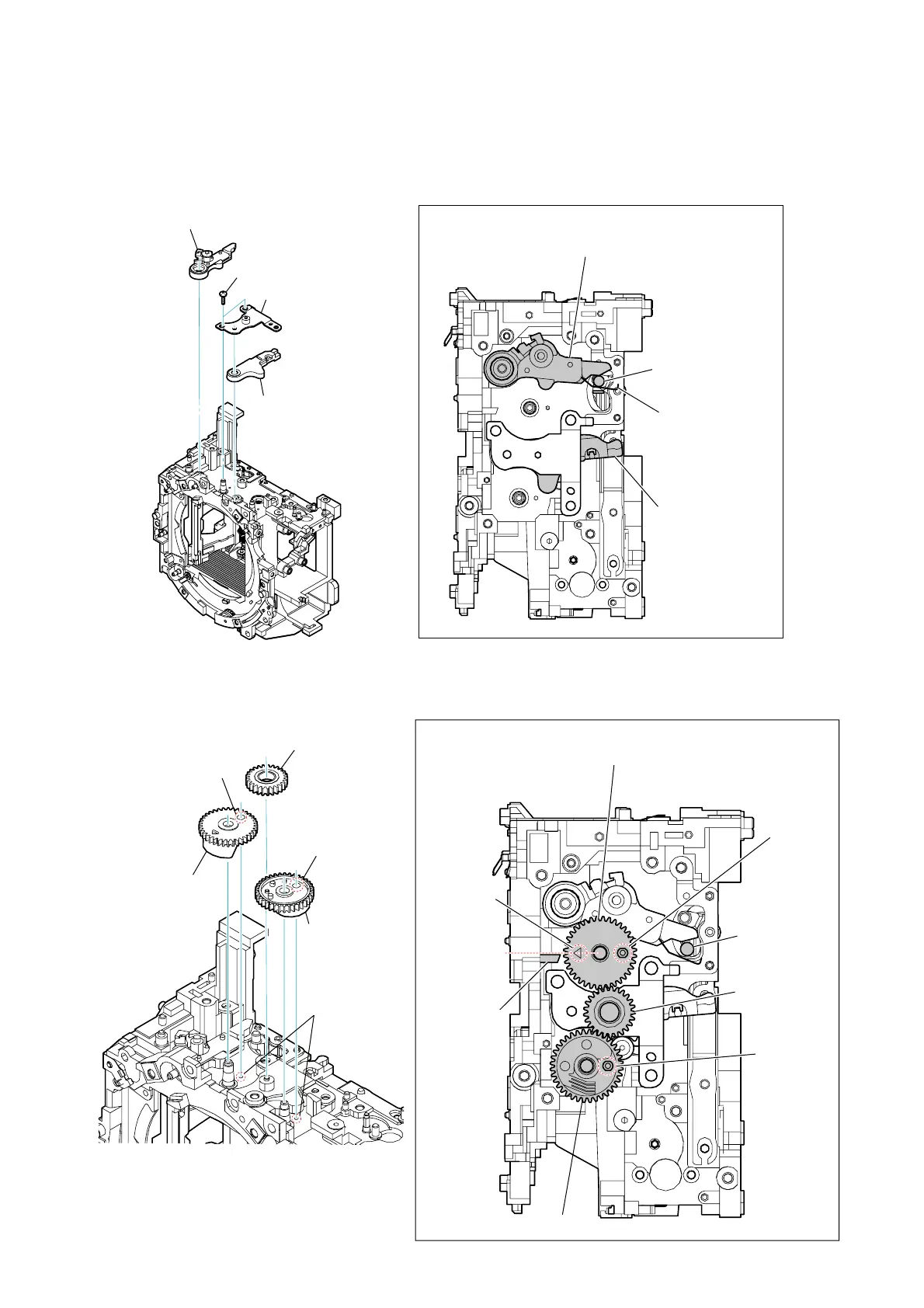

2-9. LEVERS AND GEARS INSTALLATION
Follow the assembly in the numerical order given.
2-9-1. MIRROR CHARGE/SHUTTER CHARGE LEVERS INSTALLATION
2-9-2. SHUTTER CAM/MIRROR CHARGE/IDLE GEARS INSTALLATION
1 Mirror Charge Lever Assy
Mirror Charge Lever Assy
Main Mirror
Holder Boss
Spring
4 Screw (#93)
2 Shutter Charge
Lever
Shutter Charge
Lever
3 Charge Base
Plate C Assy
- Levers Position -
Shutter Cam Gear Assy
Idle Gear
Mark
Hole
Hole
Hole
Hole
Hole
Mirror Charge Cam Gear
- Gears Position -
Mirror Box
Rib
Main Mirror
Holder Down
1 Shutter Cam
Gear Assy
3 Idle Gear
2 Mirror Charge
Cam Gear
