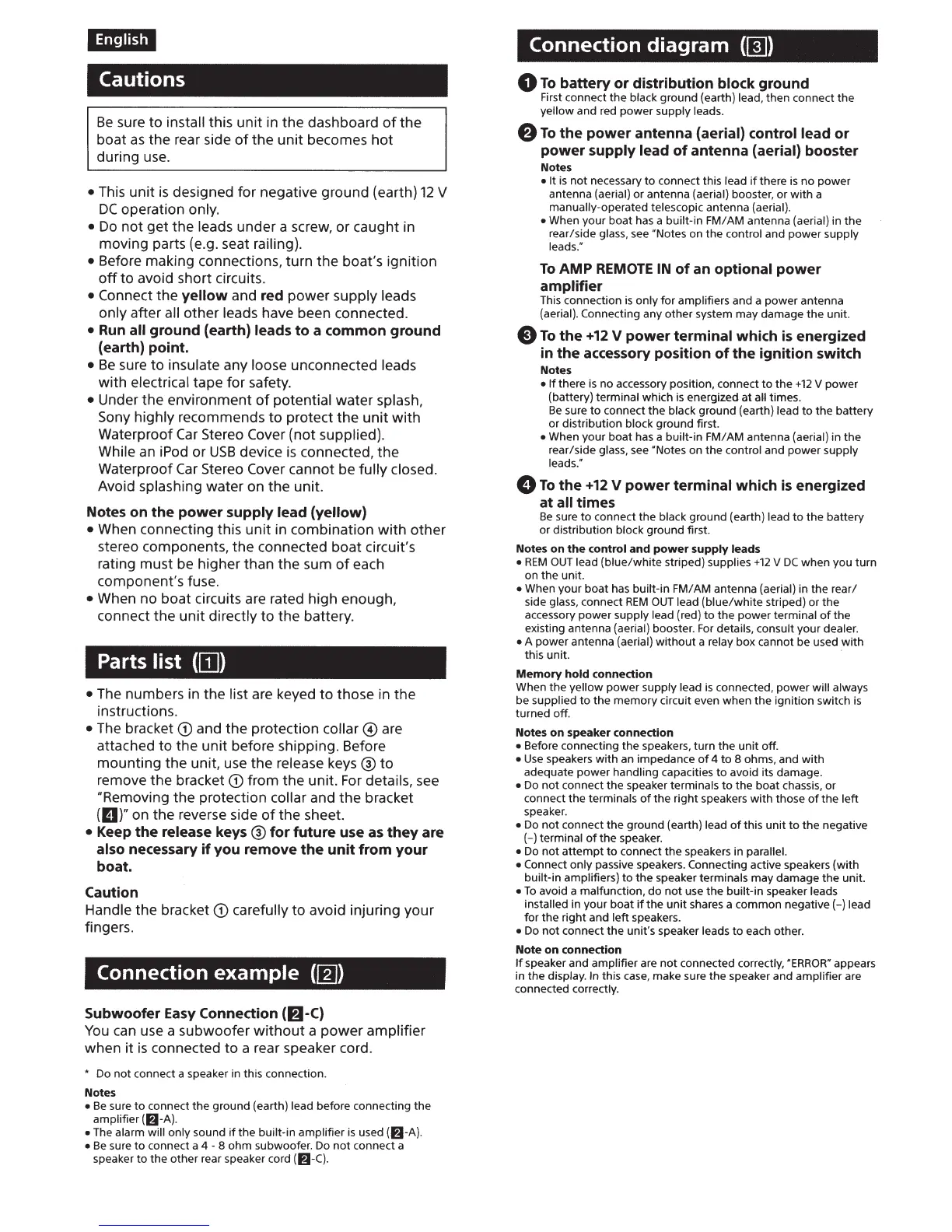

Cautions
Be
sure to install this
unit
in the dashboard
of
the
boat
as
the rear side
of
the unit becomes
hot
during
use.
• This unit
is
designed for negative ground (earth)
12
V
DC
operation only.
•
Do
not get the leads under a screw, or caught in
moving parts (e.g. seat railing).
• Before making connections, turn the boat's ignition
off
to avoid short circuits.
• Connect the
yellow
and red power supply leads
only after all other leads have been connected.
• Run all
ground
(earth) leads
to
a
common
ground
(earth)
point.
•
Be
sure
to
insulate any loose unconnected leads
with electrical tape for safety.
• Under the environment
of
potential water splash,
Sony highly recommends
to
protect the unit
with
Waterproof
Car
Stereo Cover (not supplied}.
While
an
iPod or
USB
device
is
connected, the
Waterproof
Car
Stereo Cover cannot be fully closed.
Avoid splashing water on the unit.
Notes
on
the
power
supply
lead
(yellow)
• When connecting this
unit
in combination with other
stereo components,
the
connected boat circuit's
rating must be higher than the sum
of
each
component's fuse.
• When no boat circuits are rated high enough,
connect the unit directly to the battery.
Parts
list
([!])
• The numbers
in
the list are keyed
to
those in the
instructions.
•
The
bracket
CD
and the protection
collar@
are
attached to the unit before shipping. Before
mounting the unit, use the release
keys®
to
remove the bracket
CD
from the unit.
For
details,
see
"Removing the protection collar and the bracket
(I))"
on the reverse side
of
the sheet.
• Keep
the
release keys ®
for
future
use as
they
are
also necessary
if
you
remove
the
unit
from
your
boat.
Caution
Handle the bracket
CD
carefully to avoid injuring your
fingers.
Connection
example
(IIJ)
Subwoofer
Easy Connection
(fJ-C)
You
can
use a subwoofer
without
a
power
amplifier
when it
is
connected to a rear speaker cord.
* Do
not
connect a speaker in
this
connection.
Notes
•
Be
sure
to
connect
the
ground
(earth) lead before connecting
the
amplifier
(ill-A).
• The alarm will
only
sound
if
the
built-in
amplifier
is
used
(ill-A).
•
Be
sure
to
connect a 4 - 8
ohm
subwoofer. Do
not
connect a
speaker
to
the
other
rear speaker cord
(ill-C).
Connection
diagram
([]])
0
To
battery
or
distribution
block
ground
First connect
the
black
ground
(earth) lead,
then
connect
the
yellow
and red
power
supply
leads.
f)
To
the
power
antenna
(aerial) control lead
or
power
supply
lead
of
antenna
(aerial)
booster
Notes
• It
is
not
necessary
to
connect this lead
if
there
is
no
power
antenna (aerial)
or
antenna (aerial) booster,
or
with
a
manually-operated telescopic antenna (aerial).
• When
your
boat
has a
built-in
FM/AM
antenna (aerial) in
the
rear/side glass, see "Notes on
the
control and
power
supply
leads."
To
AMP
REMOTE
IN
of
an
optional
power
amplifier
This connection is
only
for
amplifiers and a
power
antenna
(aerial). Connecting any
other
system
may
damage
the
unit.
E)
To
the
+12
V
power
terminal
which
is energized
in
the
accessory
position
of
the
ignition
switch
Notes
•
If
there
is
no accessory position, connect
to
the
+
12
V
power
(battery) terminal
which
is energized
at
all times.
Be
sure
to
connect
the
black
ground
(earth) lead
to
the
battery
or
distribution
block
ground
first.
• When
your
boat
has a
built-in
FM/AM
antenna (aerial) in
the
rear/side glass, see "Notes
on
the
control and
power
supply
leads."
0
To
the
+12
V
power
terminal
which
is
energized
at
all
times
Be
sure
to
connect
the
black
ground
(earth) lead
to
the
battery
or
distribution
block
ground
first.
Notes
on
the
control
and
power
supply
leads
•
REM
OUT
lead
(blue/white
striped) supplies
+12
V
DC
when
you
turn
on
the
unit.
• When
your
boat
has
built-in
FM/AM
antenna (aerial) in
the
rear/
side glass, connect
REM
OUT
lead
(blue/white
striped)
or
the
accessory
power
supply lead (red)
to
the
power
terminal
of
the
existing antenna (aerial) booster.
For
details, consult
your
dealer.
• A
power
antenna (aerial)
without
a relay
box
cannot be used
with
this unit.
Memory
hold
connection
When
the
yellow
power
supply lead
is
connected,
power
will always
be supplied
to
the
memory
circuit even
when
the
ignition
switch
is
turned
off.
Notes
on
speaker
connection
• Before connecting
the
speakers,
turn
the
unit
off.
•
Use
speakers
with
an impedance
of
4
to
8 ohms, and
with
adequate
power
handling capacities
to
avoid its damage.
• Do
not
connect
the
speaker terminals
to
the
boat
chassis,
or
connect
the
terminals
of
the
right
speakers
with
those
of
the
left
speaker.
• Do
not
connect
the
ground
(earth) lead
of
this
unit
to
the
negative
(-)terminal
of
the
speaker.
• Do
not
attempt
to
connect
the
speakers in parallel.
• Connect
only
passive speakers. Connecting active speakers
(with
built-in
amplifiers)
to
the
speaker terminals
may
damage
the
unit.
•
To
avoid a malfunction,
do
not
use
the
built-in
speaker leads
installed in
your
boat
if
the
unit
shares a
common
negative(-)
lead
for
the
right
and
left
speakers.
• Do
not
connect
the
unit's speaker leads
to
each other.
Note
on
connection
If
speaker
and
amplifier
are
not
connected correctly,
"ERROR"
appears
in
the
display. In this case, make sure
the
speaker and
amplifier
are
connected correctly.
