44
Specifications

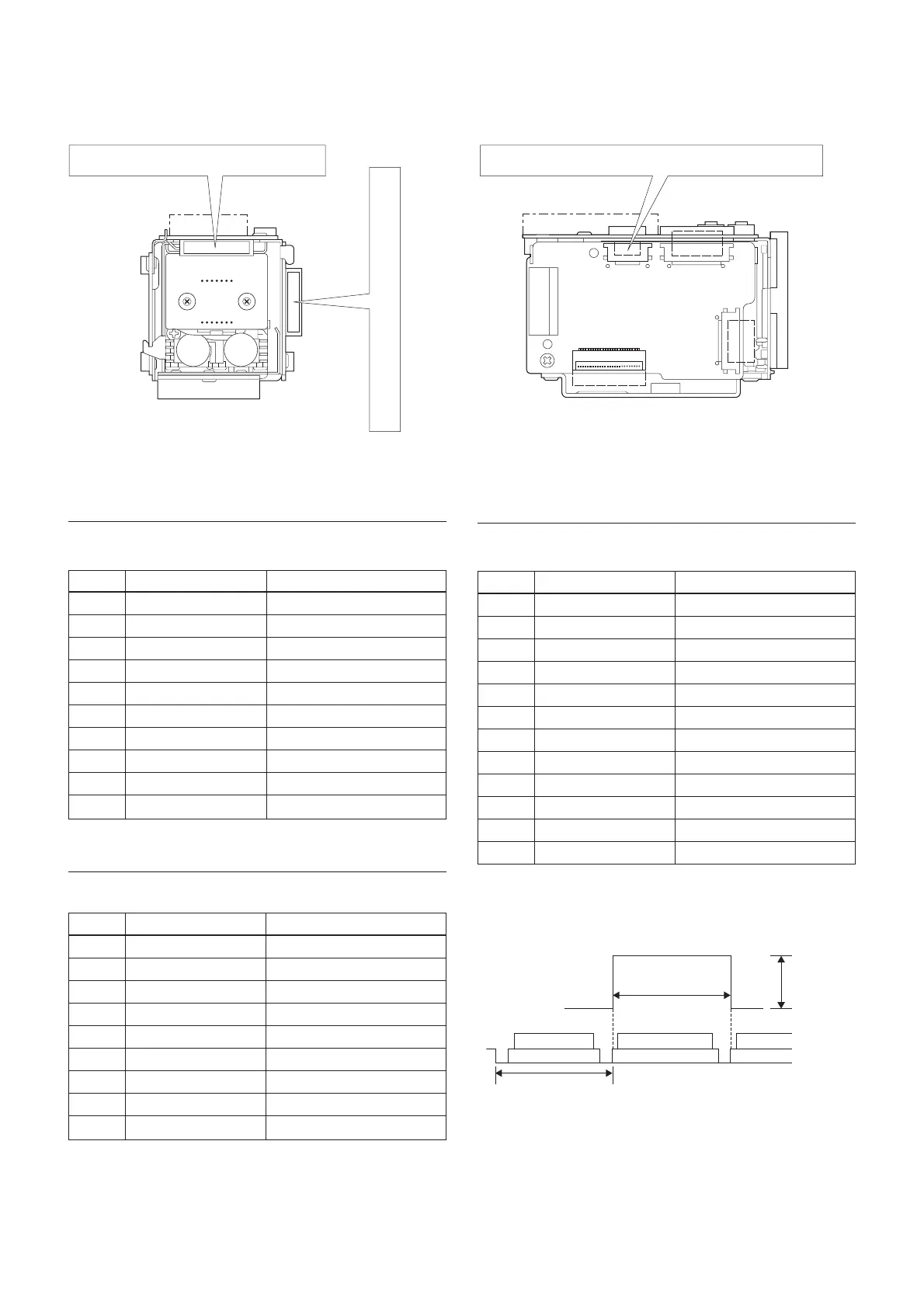

Pin assignment
qsqa0987654321
987654321
0987654321
Pin No. Name Level
1 TxD IN RS-232C level
2NC
3NC
4 RxD IN RS-232C level
5TD TTL level
6NC
7NC
8RD TTL level
9 GND
10 AF OUT
CN901
CN751
CN701
Connector type: JST S10B-ZR-SM3A-TF
CN901 (for DC and video)
Pin No. Name Level
1 DC IN 6V to 12V
2 GND (for DC IN)
3NC
4 VBS OUT Composite video signal
5 GND (For VBS OUT)
6 Y-Out
7 GND (For Y)
8 C-Out
9 GND (For C)
CN751 (for communications)
Pin No. Name Level
1 GND
2 GND
3 KEY_AD0
4 KEY_AD1
5 KEY_AD2
6 KEY_AD3
7 KEY_AD4
8 KEY_AD5
9 KEY_AD6
10 KEY_AD7
11 NC
12 Strobe
Connector type: Molex 52689-1240 FFC (0.5 mm)
CN701 (for FFC cable)
Strobe signal specifications
Ver tical timing
Ver tical timing
3.0 ±0.2 V
Video
Strobe
Connector type: JST S9B-ZR-SM3A-TF
