Installation

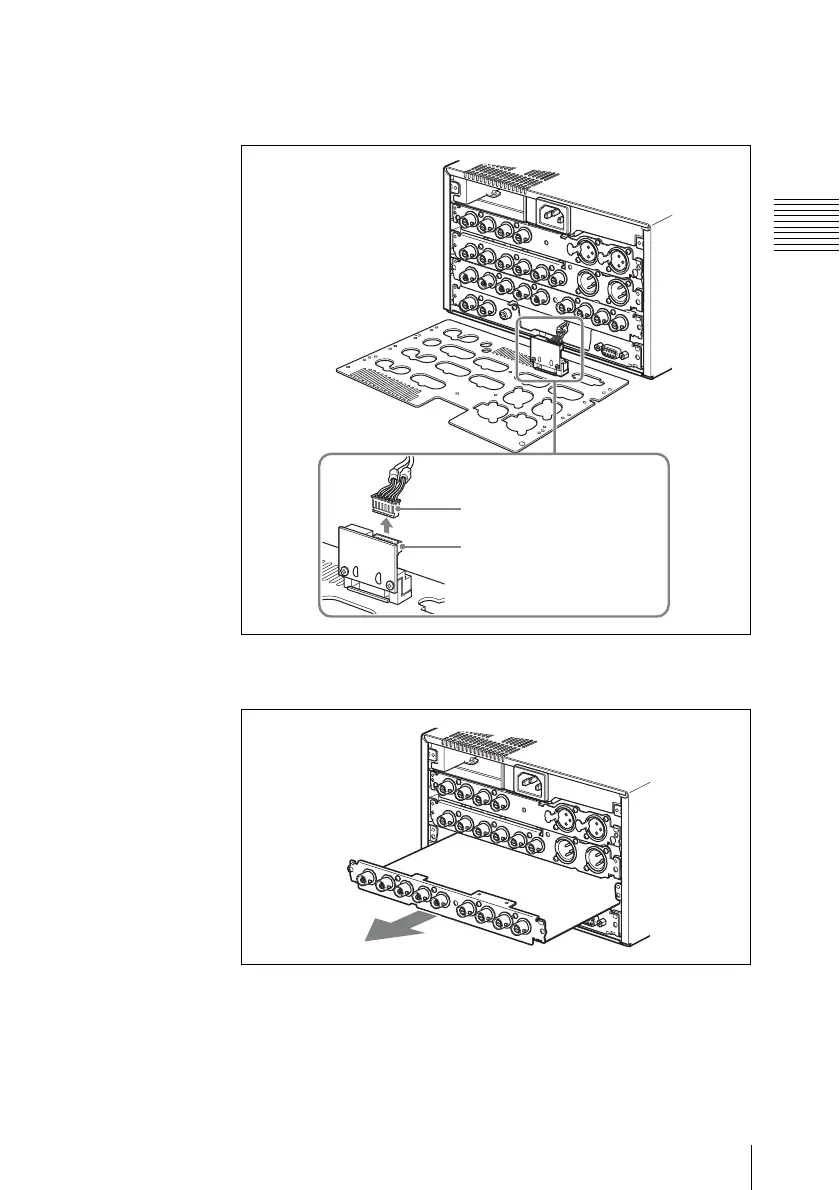

2 Disconnect the connector cable from the i.LINK connector (CN2
on the CN1968A board), then remove the rear panel.
3 Pull out the SDI (for HVR-1500) or DPR board in the third slot
from the top in the direction of the arrow.
Connector cable
i.LINK connector
