Installation

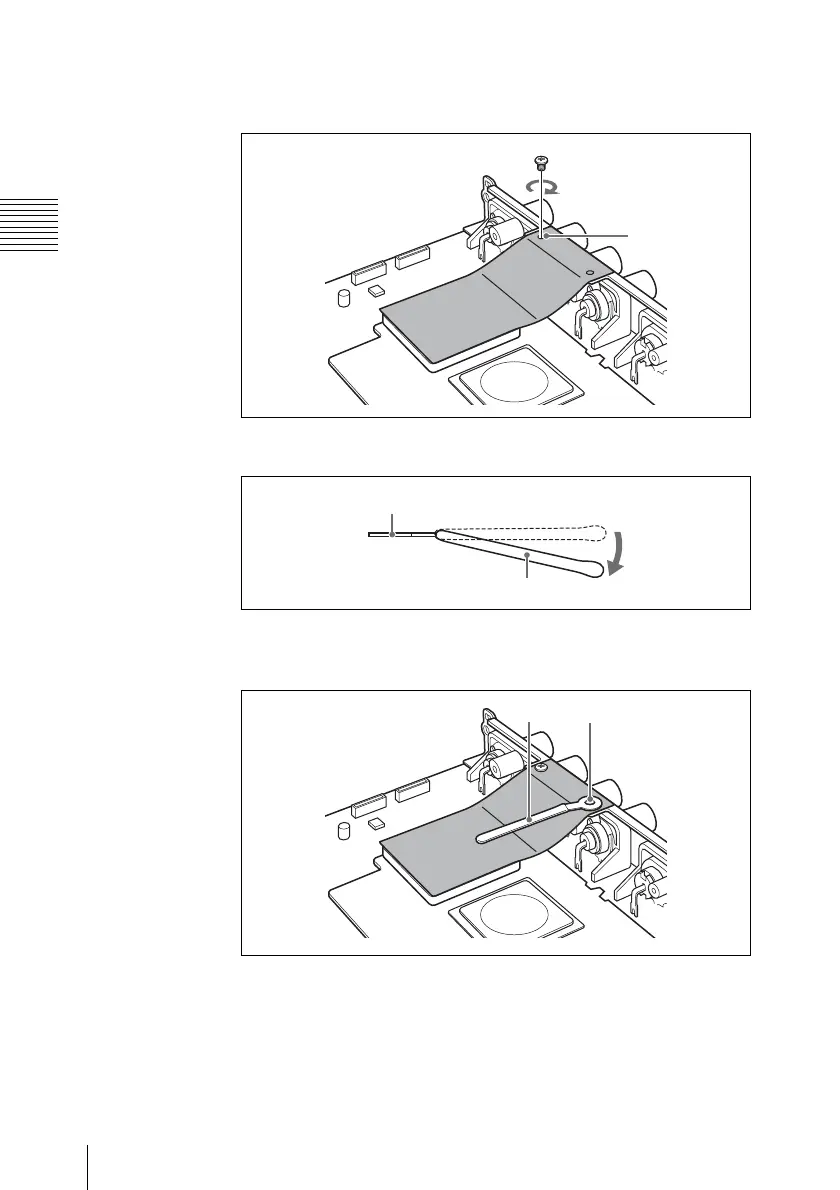

8 Secure the graphite sheet by screwing one of the supplied M3 screws
into the screw hole A.
9 Bend the wire holder so that the angle between the sheathed part (2)
and the ring part (1) is at least 10°.
0 Align the ring of the wire holder to the screw hole (1) of the
graphite sheet, and press the sheath part (2) onto the heat
conducting sheet to hold the sheet down.
A
1
Wire holder
10° or more
