KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
(Please review the Sony Electronics Service Information website for any additional service information.)
152
151
153
154
155
156
157
159
162
158
161
160
163
164
KDL-46S3000
2-580-640-01 SCREW, +BVTP2 4X16
(KDL-40S3000/46S3000 ONLY)
2-580-629-01 SCREW, +BVST 3X8
(KDL-40S3000/46S3000 ONLY)
2-580-591-01 SCREW, +PSW M3X5
(KDL-40S3000/46S3000 ONLY)
2-580-606-01 SCREW, +PSW M5X8
(KDL-40S3000/46S3000 ONLY)

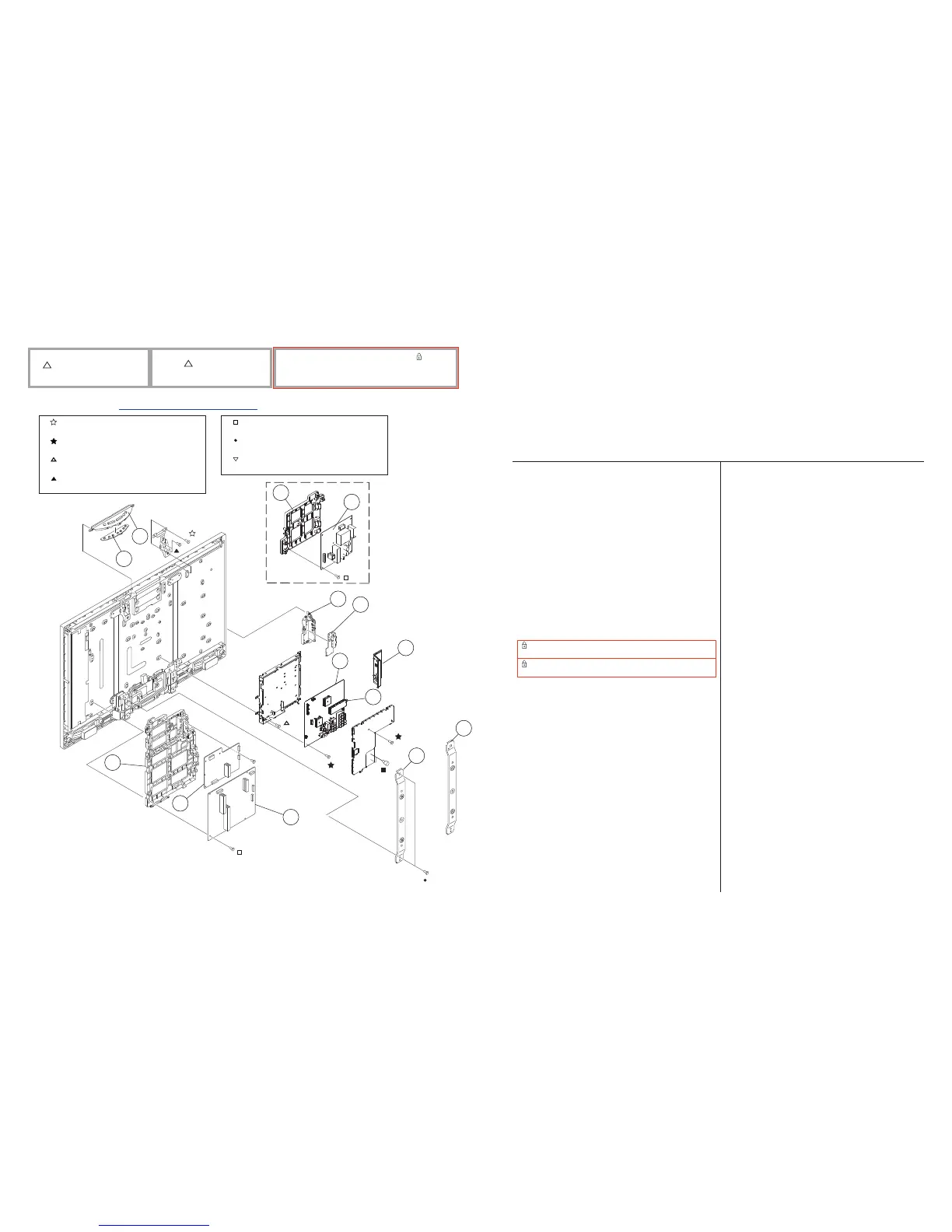

4-4. CHASSIS (KDL-40S3000/46S3000 ONLY)
151 X-2176-664-1 BUTTON, MULTI ASSEMBLY
(KDL-40S3000/46S3000 ONLY)
152 A-1220-318-A H1 BOARD, MOUNTED
(KDL-40S3000/46S3000 ONLY)
153 3-094-416-01 BRACKET, D2
(KDL-46S3000 ONLY)
154 A-1247-497-A D2 BOARD, COMPLETE
(KDL-46S3000 ONLY)
(When replacing the D2 Board for this model, refer to the instructions
for “Replacing the Inverter Connector Assembly” in the Disassembly section of
this manual.)
155 3-098-453-02 SIDE, TERMINAL(AU)
(KDL-40S3000/46S3000 ONLY)
156 A-1220-504-C U1 BOARD, MOUNTED
(KDL-40S3000/46S3000 ONLY)
157 3-106-473-01 HOLDER, SIDE JACK(M)
(KDL-40S3000 ONLY)
157 3-106-474-01 HOLDER, SIDE JACK(L)
(KDL-46S3000 ONLY)
158 A-1257-243-A BU1 BOARD, MOUNTED (SVC)
(KDL-40S3000 ONLY)
158 A-1257-242-A BU1 BOARD, MOUNTED (SVC)
(KDL-46S3000 ONLY)
159 8-597-611-00 TUNER, FSS BTF-CA411Z
(KDL-40S3000/46S3000 ONLY)
* 160 X-2177-259-1 VESA ARM(40)L ASSEMBLY
(KDL-40S3000 ONLY)
* 160 X-2177-275-1 VESA ARM(46)L ASSEMBLY
(KDL-46S3000 ONLY)
* 161 X-2177-260-1 VESA ARM(40)R ASSEMBLY
(KDL-40S3000 ONLY)
* 161 X-2177-276-1 VESA ARM(46)R ASSEMBLY
(KDL-46S3000 ONLY)
162 A-1308-804-A G3 BOARD, COMPLETE
(KDL-40S3000/46S3000 ONLY)
163 A-1236-528-A D1 BOARD, COMPLETE
(KDL-40S3000 ONLY)
(When replacing the D1 Board for this model, refer to the instructions
for “Replacing the Inverter Connector Assembly” in the Disassembly section of
this manual.)
163 A-1236-531-A D1 BOARD, COMPLETE
(KDL-46S3000 ONLY)
(When replacing the D1 Board for this model, refer to the instructions
for “Replacing the Inverter Connector Assembly” in the Disassembly section of
this manual.)
164 X-2178-425-1 BRACKET ASSEMBLY, G3
(KDL-40S3000/46S3000 ONLY)
2-674-965-41 SCREW, +PSW 3SG
(KDL-40S3000/46S3000 ONLY)
2-580-608-01 SCREW, +PSW M5X16
(KDL-40S3000/46S3000 ONLY)
4-635-966-01 SCREW (HEX)
(KDL-40S3000/46S3000 ONLY)
To Next Page
