Sony MDR-NC11A - Page 6

6
MDR-NC11A

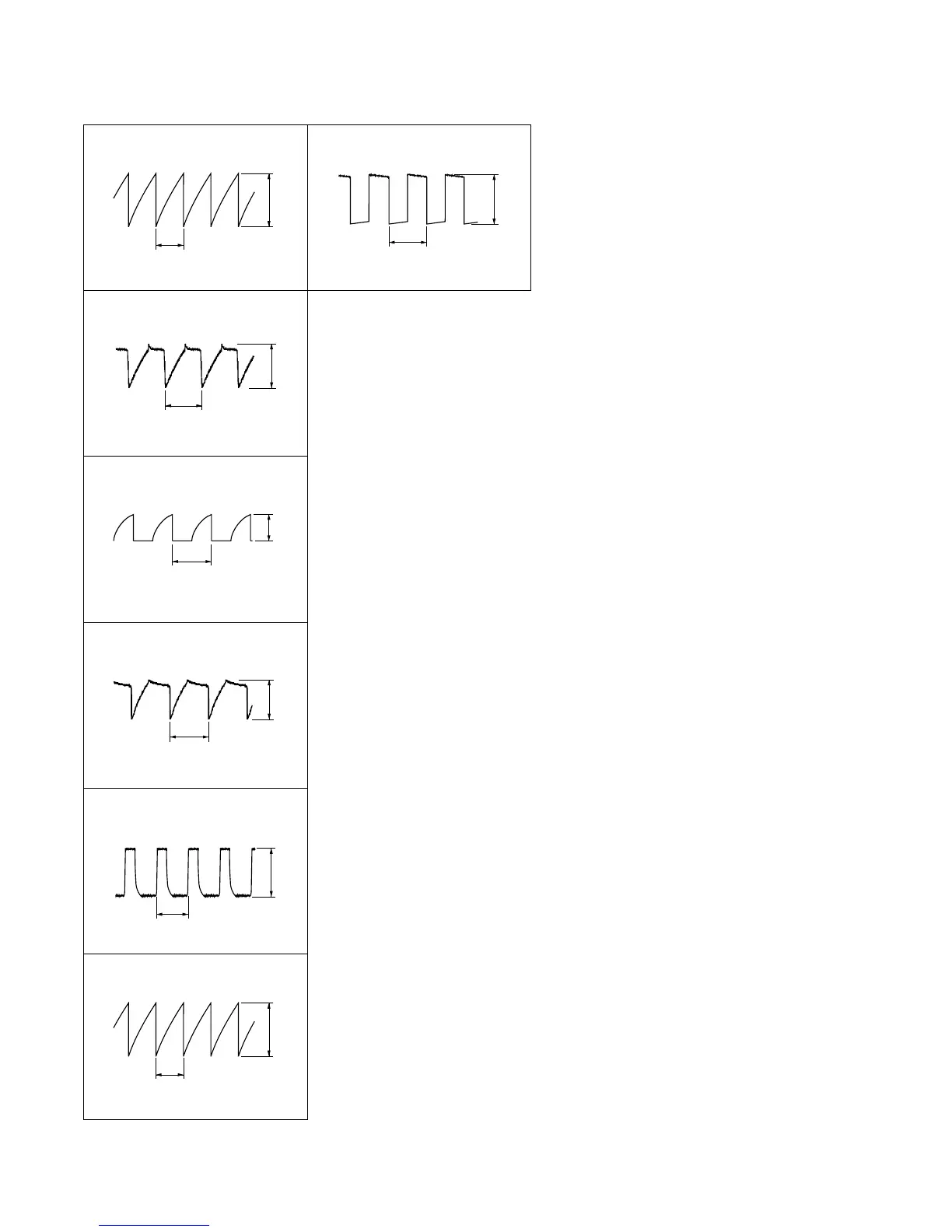

• Waveforms
1
IC102 1 (S.D),
Q101 (Collector)
5 mV/DIV, 20 µ s/DIV
36.4 µ s
20 mVp-p
6
Q202 (Emitter)
20 mV/DIV, 20 µ s/DIV
36.4 µ s
70 mVp-p
2
Q201-1 (Base)
200 mV/DIV, 20 µ s/DIV
36.4 µ s
1.1 Vp-p
4
Q201-2 (Base)
200mV/DIV, 20 µ s/DIV
36.4 µ s
0.8 Vp-p
3
Q201-1 (Collector),
Q202-1 (Base)
200mV/DIV, 20 µ s/DIV
36.4 µ s
0.8 Vp-p
5
Q201-2 (Collector),
Q202-1 (Collector),
Q202-2 (Base)
200 mV/DIV, 20 µ s/DIV
36.4 µ s
1.3 Vp-p
7
Q202-2 (Collector)
5 mV/DIV, 20 µ s/DIV
36.4 µ s
20 mVp-p
