Sony MPK-THE - Front Cabinet Block

MPK-THE

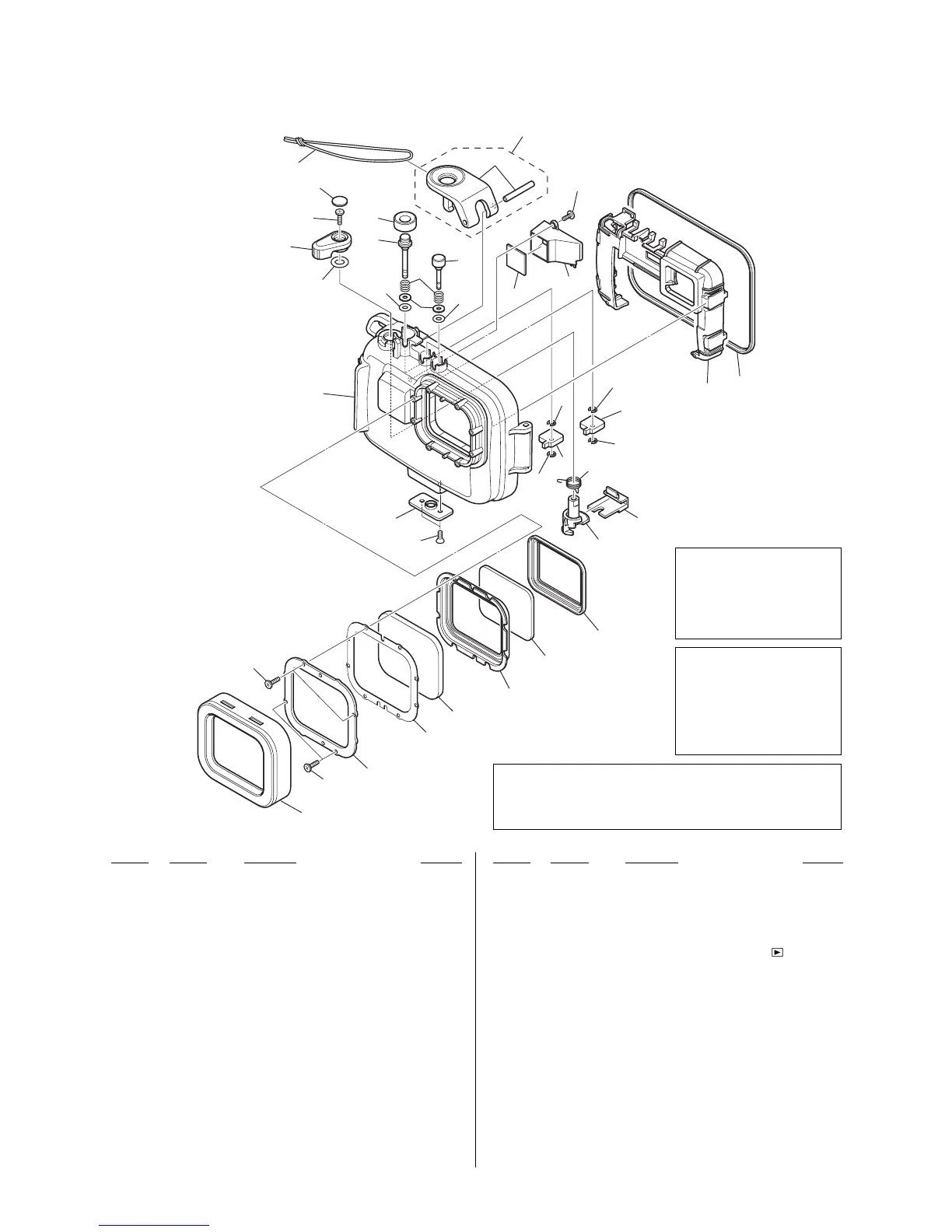

1-2. FRONT CABINET BLOCK
- 3 -
La 0 marquée sont des pièces par
rapport à imperméable à l’eau.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Soyez sûr de vérifier vers le haut
d’imperméable à l’eau après la
réparation.
The marked “0” are parts in relation
to waterproof.
Replace these components with Sony
parts.
Be sure to check up waterproof after
repair.
(Note ) When putting grease the O-ring (Ref. No. 62, 71), alwaysuse
the grease of the blue tube of the accessory. When using the
grease of the yellow tube and the grease of the other Inc.,
it hurts the O-ring and it causes the water leakage.
ns
51
52
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
71
72
73
74
75
76
77
78
79
79
79
79
80
80
81
82
83
(Note)
(Note)
(Note)
51 3-099-218-01 PROTECTOR, FRONT
52 3-099-459-01 TP1.7X5 #0
53 3-099-215-01 RETAINER, LENS WINDOW
* 54 3-212-279-01 SHEET, GLASS RETAINER
55 3-099-457-01 GLASS (A), LENS WINDOW
56 3-099-216-01 PACKING (A), LENS WINDOW
57 3-099-458-01 GLASS (B), LENS WINDOW
58 3-099-217-01 PACKING (B), LENS WINDOW
59 3-099-238-01 TP2.6X8 (PLATE)
60 3-099-221-01 PLATE, TRIPOD SCREW
61 3-273-500-01 CASE, FRONT
0 62 3-951-807-01 RING, O
63 3-273-508-01 KNOB, ZOOM (W/T)
64 3-076-866-01 BIND (2X6), TAPPING SCREW
65 3-273-509-01 COVER, ZOOM KNOB
66 3-273-504-01 STRING, SHUTTER LEVER
67 3-099-223-01 CAP (SHUTTER)
Ref. No. Part No. Description Remarks
68 3-273-506-01 PUSH BUTTON (SHUTTER)
69 3-099-232-01 SPRING (A), PUSH BUTTON
70 3-099-233-01 RETAINER (*6.0), O RING
0 71 3-099-234-01 O RING (P2-A)
72 3-099-226-01 PUSH BUTTON (PW) (POWER, )
73 X-2187-568-1 SHUTTER LEVER.ASSY
74 2-593-524-01 SCREW, TIP1.7X3 SPECIAL
75 3-273-501-01 REFLECTOR
76 3-099-219-01 ILLUMINATOR
77 3-099-284-01 PACKING, DROP PROTECTION
78 3-273-513-01 ATTACHMENT (A)
79 2-589-173-01 RING (DIA. 1.5), E
80 3-273-507-01 LEVER (A), BUTTON
81 3-273-510-01 SPRING, ZOOM
82 3-273-511-01 SHAFT, ZOOM
83 3-273-512-01 SLIDER, ZOOM
Ref. No. Part No. Description Remarks
ns: not supplied
